MERCURY 8M4501323 Block, Friction

Write a Review
$10.72
SKU:
8M4501323
Schematic Object Key:
47

MERCURY 8M4501323 Block, Friction

$10.72

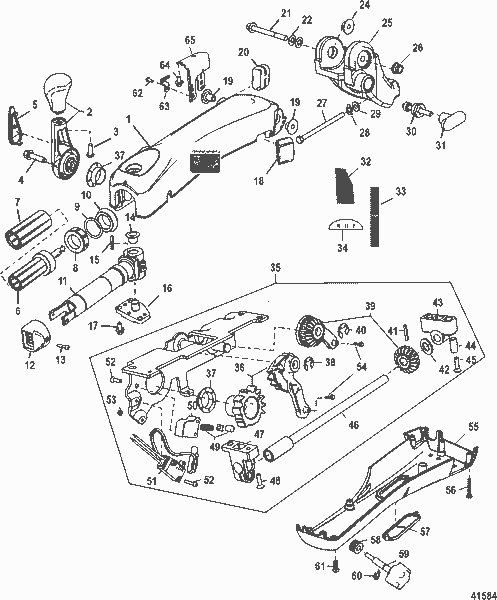

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 8M4501323 Block, Friction

Schematic Object Key : 47

Product Description : MERCURY 8M4501323 Block, Friction

Product Category : 40 EFI (4 CYL.)(4-STROKE)/ 0P515897 & Up/Big Tiller Handle Kit(40-60 Efi Fourstroke-Manual

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- TILLER HANDLE ASSEMBLY, Big Tiller, 40-60 EFI FourStroke, Manual Mechanical Non Power Steering 879291A04
1 HOUSING, Steering Handle, Upper 879346T02
- DECAL, Lanyard, Black 8M0032728
2 SHIFT HANDLE ASSEMBLY 879346A01
3 SCREW 830024 30
4 SCREW, (M8 x 30) 8M0103813
5 COVER, Shift Handle-Mercury 879346T15
6 THROTTLE GRIP ASSEMBLY 879346T05
7 GRIP, Rubber 879346T06
8 NUT 8M0034107
9 WASHER 8M0024573
10 GROMMET 8M0022037
11 CHASSIS, Throttle Grip 879346T08
12 CAP, Handle Trim Switch 8M0030401
13 SCREW, (M4 x 10) 40056 85
14 BUSHING 8M0021535
15 DOWEL PIN 8M0022764
16 BEARING CAP 879346T16
17 SCREW, (M6 x 14 MM) Stainless Steel 885525 14
18 GROMMET 879346T19
19 BUSHING 8M0035136
20 GROMMET 8M0045301
21 SCREW, (M10 x 105) Hex Flange - Stainless Steel 823567105
22 WASHER 40023 19
23 WASHER, (.402 x .787 x .039 Bellevi) 12024
24 BUSHING 8M0031370
25 BRACKET 879346T26
26 NUT, (M10) Brass/Nickel Plated 826292
27 SCREW, (M10 x 90) 824848 90
28 TAB WASHER 8M0044744
29 WASHER 40023 19
30 TILT LOCK ASSEMBLY 879346T12
31 HANDLE 879346T11
32 DECAL, On-Off-Start 8M0033313
33 DECAL, Throttle 8M0029029
34 DECAL, R-N-F 8M0029030
35 GEAR PLATE ASSEMBLY 879347T07
36 SHIFT ARM AND GEAR ASSEMBLY 879347A04
37 BUSHING 8M0022826
38 E RING 29641
39 THROTTLE GEAR ASSEMBLY 879347A05
40 E RING 29641
41 PIN 8M0028305
42 SHIM, (.005) 8M0028540
42 SHIM, (.010) 8M0028541
42 SHIM, (.020) 8M0028542
42 SHIM, (.040) 8M0028543
43 PILLOW BLOCK 8M0027443
44 BUSHING 8M0028294
45 SCREW, (M6 x 30 MM) Stainless Steel 8M0103808
46 NOT SOLD SEPARATE, Throttle Shaft NSS
47 BLOCK, Friction 8M4501323
48 SCREW, (M4 x 0.7 x 16) 8M0031550
49 SPRING AND GUIDE KIT 879347A08
50 RETAINER 8M0028323
51 SWITCH, Neutral 879347T06
52 SCREW, (M3 x 0.5) 8M0034874
53 NUT, (M3 x 0.5 Hex) 8M0034875
54 SCREW, (#8-32 x .375), Not included in Gear Plate Assembly 8M0085515
55 COVER, Steering Handle, Lower 879346T04
56 SCREW, (M4 x 35) 40019 91
57 COVER, Switch/Light 879346T10
58 GROMMET 828249
59 THROTTLE FRICTION KNOB ASSEMBLY 879346A03
60 E RING 29641
61 SCREW, (M4 x 16) 40019 87
62 SCREW, (#8-32 x .375) 8M0085515
63 RETAINER 8M0028230
64 SCREW, (M6 x 10) 821300 10
65 BRACKET, Shift Mount 879346T17
NS INSTALLATION MANUAL, Big Tiller, Manual 899984003
NS OPERATION MANUAL, Big Tiller -Manual, Mechanical and DTS 8M0063659
- TILLER HANDLE ASSEMBLY, Big Tiller, 40-60 EFI FourStroke, Manual Mechanical Non Power Steering 879291A04
1 HOUSING, Steering Handle, Upper 879346T02
- DECAL, Lanyard, Black 8M0032728
2 SHIFT HANDLE ASSEMBLY 879346A01
3 SCREW 830024 30
4 SCREW, (M8 x 30) 8M0103813
5 COVER, Shift Handle-Mercury 879346T15
6 THROTTLE GRIP ASSEMBLY 879346T05
7 GRIP, Rubber 879346T06
8 NUT 8M0034107
9 WASHER 8M0024573
10 GROMMET 8M0022037
11 CHASSIS, Throttle Grip 879346T08
12 CAP, Handle Trim Switch 8M0030401
13 SCREW, (M4 x 10) 40056 85
14 BUSHING 8M0021535
15 DOWEL PIN 8M0022764
16 BEARING CAP 879346T16
17 SCREW, (M6 x 14 MM) Stainless Steel 885525 14
18 GROMMET 879346T19
19 BUSHING 8M0035136
20 GROMMET 8M0045301
21 SCREW, (M10 x 105) Hex Flange - Stainless Steel 823567105
22 WASHER 40023 19
23 WASHER, (.402 x .787 x .039 Bellevi) 12024
24 BUSHING 8M0031370
25 BRACKET 879346T26
26 NUT, (M10) Brass/Nickel Plated 826292
27 SCREW, (M10 x 90) 824848 90
28 TAB WASHER 8M0044744
29 WASHER 40023 19
30 TILT LOCK ASSEMBLY 879346T12
31 HANDLE 879346T11
32 DECAL, On-Off-Start 8M0033313
33 DECAL, Throttle 8M0029029
34 DECAL, R-N-F 8M0029030
35 GEAR PLATE ASSEMBLY 879347T07
36 SHIFT ARM AND GEAR ASSEMBLY 879347A04
37 BUSHING 8M0022826
38 E RING 29641
39 THROTTLE GEAR ASSEMBLY 879347A05
40 E RING 29641
41 PIN 8M0028305
42 SHIM, (.005) 8M0028540
42 SHIM, (.010) 8M0028541
42 SHIM, (.020) 8M0028542
42 SHIM, (.040) 8M0028543
43 PILLOW BLOCK 8M0027443
44 BUSHING 8M0028294
45 SCREW, (M6 x 30 MM) Stainless Steel 8M0103808
46 NOT SOLD SEPARATE, Throttle Shaft NSS
47 BLOCK, Friction 8M4501323
48 SCREW, (M4 x 0.7 x 16) 8M0031550
49 SPRING AND GUIDE KIT 879347A08
50 RETAINER 8M0028323
51 SWITCH, Neutral 879347T06
52 SCREW, (M3 x 0.5) 8M0034874
53 NUT, (M3 x 0.5 Hex) 8M0034875
54 SCREW, (#8-32 x .375), Not included in Gear Plate Assembly 8M0085515
55 COVER, Steering Handle, Lower 879346T04
56 SCREW, (M4 x 35) 40019 91
57 COVER, Switch/Light 879346T10
58 GROMMET 828249
59 THROTTLE FRICTION KNOB ASSEMBLY 879346A03
60 E RING 29641
61 SCREW, (M4 x 16) 40019 87
62 SCREW, (#8-32 x .375) 8M0085515
63 RETAINER 8M0028230
64 SCREW, (M6 x 10) 821300 10
65 BRACKET, Shift Mount 879346T17
NS INSTALLATION MANUAL, Big Tiller, Manual 899984003
NS OPERATION MANUAL, Big Tiller -Manual, Mechanical and DTS 8M0063659



Quick Overview

FRICTION BLOCK

SKU : 8M4501323

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061833326
