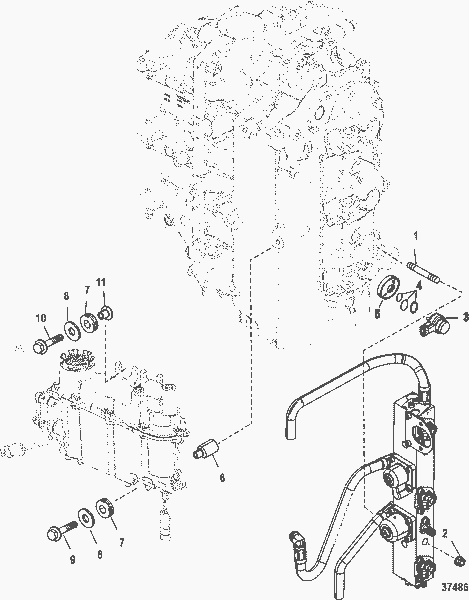

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 3
Product Description : MERCURY 8M6001744 Injector Assembly, Air
Product Category : 75 DFI (3 CYL.)(1.5L)/ 1B736885 & Up/ Vapor Separator\Fuel Rail Mounting
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | STUD, (M10 x 91) | 8M0063255 |
2 | NUT, (M10) Brass/Nickel Plated | 826292 |
3 | INJECTOR ASSEMBLY, Air | 8M6001744 |
4 | SEAL KIT | 804875 |
5 | WASHER ASSEMBLY, Cupped | 828694A 1 |
6 | SPACER | 883050 |
7 | GROMMET | 855362001 |
8 | WASHER | 40023 18 |
9 | SCREW, (M8 x 60) | 824460 60 |
10 | SCREW, (M8 x 35 MM) | 824460 35 |
11 | BUSHING | 855364 |
1 | STUD, (M10 x 91) | 8M0063255 |
2 | NUT, (M10) Brass/Nickel Plated | 826292 |
3 | INJECTOR ASSEMBLY, Air | 8M6001744 |
4 | SEAL KIT | 804875 |
5 | WASHER ASSEMBLY, Cupped | 828694A 1 |
6 | SPACER | 883050 |
7 | GROMMET | 855362001 |
8 | WASHER | 40023 18 |
9 | SCREW, (M8 x 60) | 824460 60 |
10 | SCREW, (M8 x 35 MM) | 824460 35 |
11 | BUSHING | 855364 |
Quick Overview
INJECTOR ASM-AIR
SKU : 8M6001744
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061552548
