MERCURY 9011J2 Gear Housing Assembly

Write a Review
$3,028.57
SKU:
9011J2

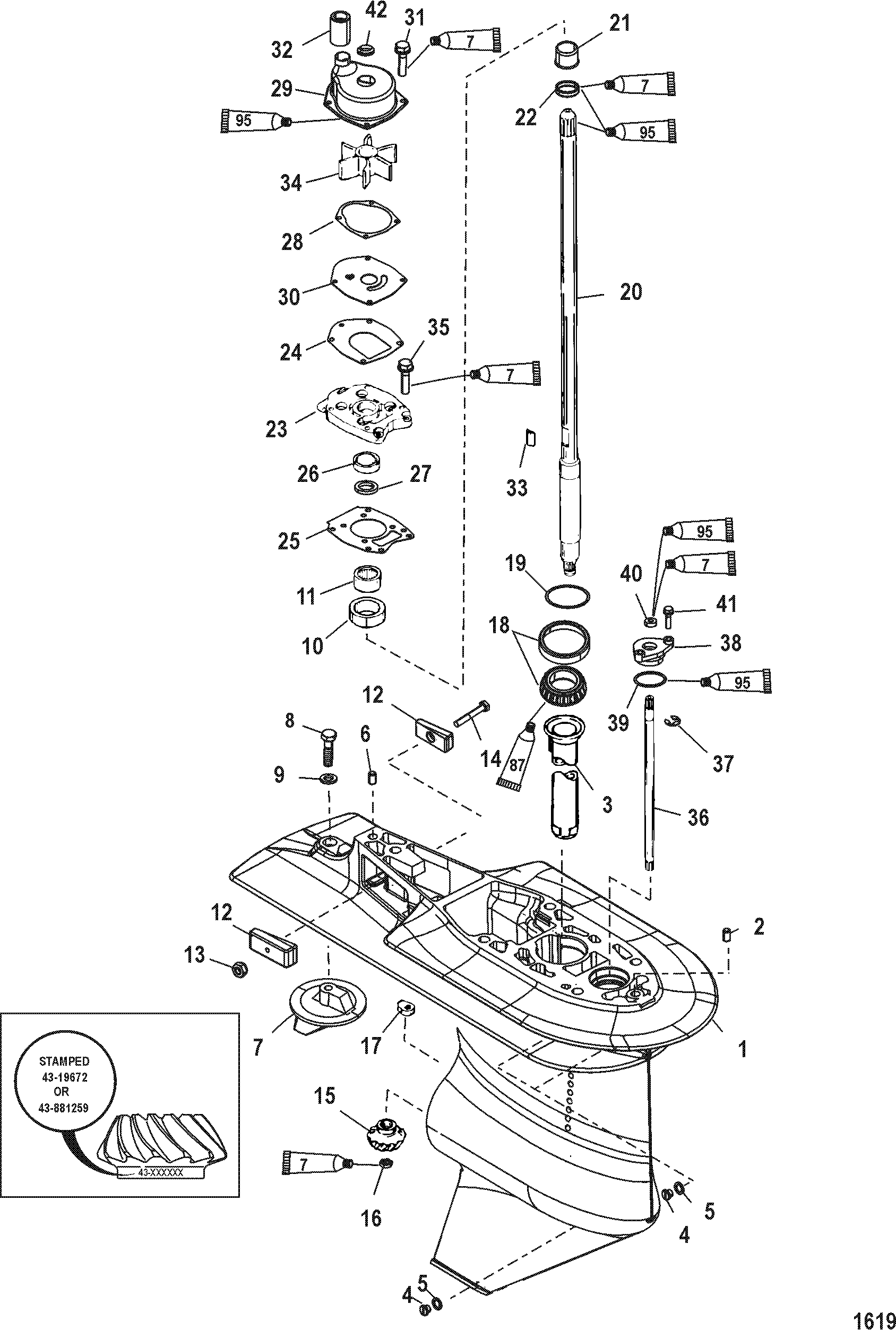

Schematic Object Key:
-

MERCURY 9011J2 Gear Housing Assembly

$3,028.57

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 9011J2 Gear Housing Assembly

Schematic Object Key : -

Product Description : MERCURY 9011J2 Gear Housing Assembly

Product Category : 75 (4-STROKE)(BODENSEE)/ 0G960500 THRU 0T800999/ Gear Hsg Drive 2.07:1-S\N-0T598999 & Below

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- GEAR HOUSING ASSEMBLY 9011J2
- GEAR HOUSING ASSEMBLY 9011J 2
- GEAR HOUSING ASSEMBLY 9011J4
- GEAR HOUSING ASSEMBLY 9011J 4
1 GEAR HOUSING ASSEMBLY, Basic 9011G59
2 PIN, Dowel - With Hole (.375 x .625) (Front) 8M0084244
3 TUBE, Oiler 43046
4 SCREW KIT, (.375-16 x .250) Drain 79953Q04
5 WASHER 191833
6 PIN, Dowel - Without Hole (.375 x .625) (Rear) 43044
7 TRIM TAB 31640T07
8 SCREW, (.437-14 x 1.250) Stainless Steel 825427
9 WASHER, (.453 x .812 x .105) Black Oxide 45176 1
10 CARRIER ASSEMBLY 43040T 1
11 NOT SOLD SEPARATE, Needle Bearing NSS
12 ANODE 826134Q
13 NUT, (M6) Stainless Steel 40138 6
14 SCREW, (M6 x 40) 40003 33
15 GEAR, Pinion (14 TEETH)(Replacement requires re-shimming) 881260A5
15 NOT SOLD SEPARATE, Pinion Gear (Part of 43-881260A5) NSS
16 NUT, (.625-18) 35921
17 CAM, Shift Control 850307
18 BEARING ASSEMBLY, Tapered Roller 42677A 1
18 BEARING ASSEMBLY, Tapered Roller 883047A 1
19 SHIM SET 44492A 1
20 DRIVESHAFT ASSEMBLY 858765T 1
20 DRIVESHAFT ASSEMBLY 878575T 1
21 SLEEVE/RING KIT 42461A 1
22 NOT SOLD SEPARATE, Seal Ring NSS
23 COVER ASSEMBLY, Water Pump 43055A 4
24 GASKET 43033 1
25 GASKET 43047 2
26 SEAL, Oil (Lower) 43036
27 SEAL, Oil (Upper) 43035
28 GASKET 817277 1
29 HOUSING KIT, Upper Water Pump 817275A 2
30 FACEPLATE 817276 1
31 SCREW, (M6 x 30) 826844 30
32 SEAL 43023 2
33 KEY 8M0032833
34 IMPELLER 43026T 2
35 SCREW, (M6 x 25) 826844 25
36 SHIFT SHAFT ASSEMBLY 853906A 1
36 SHIFT SHAFT ASSEMBLY 853908A 1
37 E RING 29641
38 BUSHING ASSEMBLY 43052A 4
39 O-RING, (1.424 x .103) 457101
40 SEAL, Oil 816464 1
41 SCREW, (M6 x 25) 826844 25
42 FACE SEAL 861415
- SEAL KIT, Gear Housing 43035A 4
- REPAIR KIT, Water Pump 43024A 7
- BEARING AND SEAL KIT (Without Forward Bearing) 803496T 1
- BEARING/SEAL KIT (Without Forward Bearing) 803496T 2
- REPAIR KIT, Clutch/Cam 803489T 1
- GEAR ASSEMBLY, Forward (With Forward Bearing) 881260A5
- REPAIR KIT, Water Pump Impeller 8M0100526
- GEAR HOUSING ASSEMBLY 9011J2
- GEAR HOUSING ASSEMBLY 9011J 2
- GEAR HOUSING ASSEMBLY 9011J4
- GEAR HOUSING ASSEMBLY 9011J 4
1 GEAR HOUSING ASSEMBLY, Basic 9011G59
2 PIN, Dowel - With Hole (.375 x .625) (Front) 8M0084244
3 TUBE, Oiler 43046
4 SCREW KIT, (.375-16 x .250) Drain 79953Q04
5 WASHER 191833
6 PIN, Dowel - Without Hole (.375 x .625) (Rear) 43044
7 TRIM TAB 31640T07
8 SCREW, (.437-14 x 1.250) Stainless Steel 825427
9 WASHER, (.453 x .812 x .105) Black Oxide 45176 1
10 CARRIER ASSEMBLY 43040T 1
11 NOT SOLD SEPARATE, Needle Bearing NSS
12 ANODE 826134Q
13 NUT, (M6) Stainless Steel 40138 6
14 SCREW, (M6 x 40) 40003 33
15 GEAR, Pinion (14 TEETH)(Replacement requires re-shimming) 881260A5
15 NOT SOLD SEPARATE, Pinion Gear (Part of 43-881260A5) NSS
16 NUT, (.625-18) 35921
17 CAM, Shift Control 850307
18 BEARING ASSEMBLY, Tapered Roller 42677A 1
18 BEARING ASSEMBLY, Tapered Roller 883047A 1
19 SHIM SET 44492A 1
20 DRIVESHAFT ASSEMBLY 858765T 1
20 DRIVESHAFT ASSEMBLY 878575T 1
21 SLEEVE/RING KIT 42461A 1
22 NOT SOLD SEPARATE, Seal Ring NSS
23 COVER ASSEMBLY, Water Pump 43055A 4
24 GASKET 43033 1
25 GASKET 43047 2
26 SEAL, Oil (Lower) 43036
27 SEAL, Oil (Upper) 43035
28 GASKET 817277 1
29 HOUSING KIT, Upper Water Pump 817275A 2
30 FACEPLATE 817276 1
31 SCREW, (M6 x 30) 826844 30
32 SEAL 43023 2
33 KEY 8M0032833
34 IMPELLER 43026T 2
35 SCREW, (M6 x 25) 826844 25
36 SHIFT SHAFT ASSEMBLY 853906A 1
36 SHIFT SHAFT ASSEMBLY 853908A 1
37 E RING 29641
38 BUSHING ASSEMBLY 43052A 4
39 O-RING, (1.424 x .103) 457101
40 SEAL, Oil 816464 1
41 SCREW, (M6 x 25) 826844 25
42 FACE SEAL 861415
- SEAL KIT, Gear Housing 43035A 4
- REPAIR KIT, Water Pump 43024A 7
- BEARING AND SEAL KIT (Without Forward Bearing) 803496T 1
- BEARING/SEAL KIT (Without Forward Bearing) 803496T 2
- REPAIR KIT, Clutch/Cam 803489T 1
- GEAR ASSEMBLY, Forward (With Forward Bearing) 881260A5
- REPAIR KIT, Water Pump Impeller 8M0100526



Quick Overview

GC 115 4S LG 2.07 1667

SKU : 9011J2

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061526433
