MERCURY 903911 Clamp-Reed | PalmerPower
close
close
click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Boat Repair Service

    Diagnostics, Repairs, and Maintenance

  • Fast Delivery

MERCURY 903911 Reed Stop

Write a Review
$32.75
SKU:
903911
Schematic Object Key:
27

MERCURY 903911 Reed Stop

$32.75

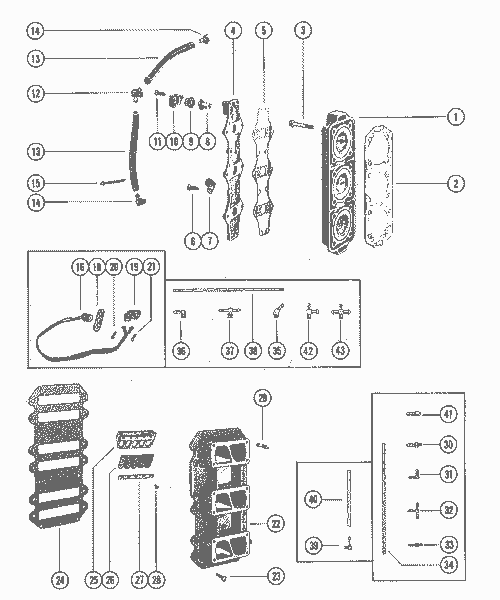

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 903911 Reed Stop

Schematic Object Key : 27

Product Description : MERCURY 903911 Reed Stop

Product Category : V-225/ 5628028 AND UP/ Reed Block And Cylinder Head

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 CYLINDER HEAD 95095
2 GASKET, CYLINDER HEAD 41244T02
3 SCREW, CYLINDER HEAD (2-1/2") 668631
4 COVER ASSEMBLY, CYLINDER 7270A 1
5 GASKET, CYLINDER COVER 65788
6 SCREW, CYLINDER COVER (1-1/4") 74824
7 "J" CLIP, CYLINDER COVER SCREW 47483
8 THERMOSTAT 75692
9 GASKET, THERMOSTAT 62386001
10 COVER, THERMOSTAT 90390A 1
11 SCREW, THERMOSTAT COVER (2"- FLANGE HEAD) 66023
11 SCREW, THERMOSTAT COVER (2") 815549
11 SCREW, THERMOSTAT COVER (1") 35386
12 FITTING, THERMOSTAT COVER TO WATER HOSES 68728
13 HOSE, WATER DISTRIBUTION (10" AND 14") 77653101
14 FITTING, ELBOW - WATER HOSES 687271
15 STA-STRAP, WATER HOSES 61990
16 TEMPERATURE SENDER 78799
18 COVER, TEMPERATURE SENDER 78286
19 TERMINAL BLOCK 45915
20 SCREW 69079
21 SCREW, LEADS TO TERMINAL BLOCK (3/8") 69079
22 HOUSING, REED BLOCK (7/8") 87628F2
24 GASKET, REED BLOCK HOUSING 127754
25 REED BLOCK 87692
26 REED ASSEMBLY 19719A1
27 REED STOP 903911
28 SCREW 57583T
29 STUD, CARBURETOR MOUNTING 270372
30 CHECK VALVE, BLEED HOSE (STRAIGHT) 426585
31 ELBOW, BLEED H OSE (PRESS IN) 15133
32 TEE, BLEED HOSE 59169003
33 FITTING, BLEED HOSE (PRESS IN) 56759
34 HOSE, BLEED 9938779
35 ELBOW, REED BLOCK (45 DEG.) 782792
36 ELBOW, REED BLOCK (90 DEG.) 996642
37 TEE, REED BLOCK 8585531
38 HOSE, REED BLOCK (2-3/4"-4") 78892 14
39 FITTING, PULSE HOSE 54090
40 HOSE, PULSE (6-3/4") 90729 25
41 CHECK VALVE, BLEED HOSE (PRESS-IN) 426233
42 ELBOW, REED BLOCK (WITH 1/16" BARB) - 90 DEG. 93890
43 TEE, REED BLOCK (WITH 1/16" BARB) 93891
- GASKET SET 89221A80
1 CYLINDER HEAD 95095
2 GASKET, CYLINDER HEAD 41244T02
3 SCREW, CYLINDER HEAD (2-1/2") 668631
4 COVER ASSEMBLY, CYLINDER 7270A 1
5 GASKET, CYLINDER COVER 65788
6 SCREW, CYLINDER COVER (1-1/4") 74824
7 "J" CLIP, CYLINDER COVER SCREW 47483
8 THERMOSTAT 75692
9 GASKET, THERMOSTAT 62386001
10 COVER, THERMOSTAT 90390A 1
11 SCREW, THERMOSTAT COVER (2"- FLANGE HEAD) 66023
11 SCREW, THERMOSTAT COVER (2") 815549
11 SCREW, THERMOSTAT COVER (1") 35386
12 FITTING, THERMOSTAT COVER TO WATER HOSES 68728
13 HOSE, WATER DISTRIBUTION (10" AND 14") 77653101
14 FITTING, ELBOW - WATER HOSES 687271
15 STA-STRAP, WATER HOSES 61990
16 TEMPERATURE SENDER 78799
18 COVER, TEMPERATURE SENDER 78286
19 TERMINAL BLOCK 45915
20 SCREW 69079
21 SCREW, LEADS TO TERMINAL BLOCK (3/8") 69079
22 HOUSING, REED BLOCK (7/8") 87628F2
24 GASKET, REED BLOCK HOUSING 127754
25 REED BLOCK 87692
26 REED ASSEMBLY 19719A1
27 REED STOP 903911
28 SCREW 57583T
29 STUD, CARBURETOR MOUNTING 270372
30 CHECK VALVE, BLEED HOSE (STRAIGHT) 426585
31 ELBOW, BLEED H OSE (PRESS IN) 15133
32 TEE, BLEED HOSE 59169003
33 FITTING, BLEED HOSE (PRESS IN) 56759
34 HOSE, BLEED 9938779
35 ELBOW, REED BLOCK (45 DEG.) 782792
36 ELBOW, REED BLOCK (90 DEG.) 996642
37 TEE, REED BLOCK 8585531
38 HOSE, REED BLOCK (2-3/4"-4") 78892 14
39 FITTING, PULSE HOSE 54090
40 HOSE, PULSE (6-3/4") 90729 25
41 CHECK VALVE, BLEED HOSE (PRESS-IN) 426233
42 ELBOW, REED BLOCK (WITH 1/16" BARB) - 90 DEG. 93890
43 TEE, REED BLOCK (WITH 1/16" BARB) 93891
- GASKET SET 89221A80



Quick Overview

CLAMP-REED

SKU : 903911

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061207783
