MERCURY 93861 Cotter Pin

Write a Review
$3.30
SKU:
93861
Schematic Object Key:
20

MERCURY 93861 Cotter Pin

$3.30

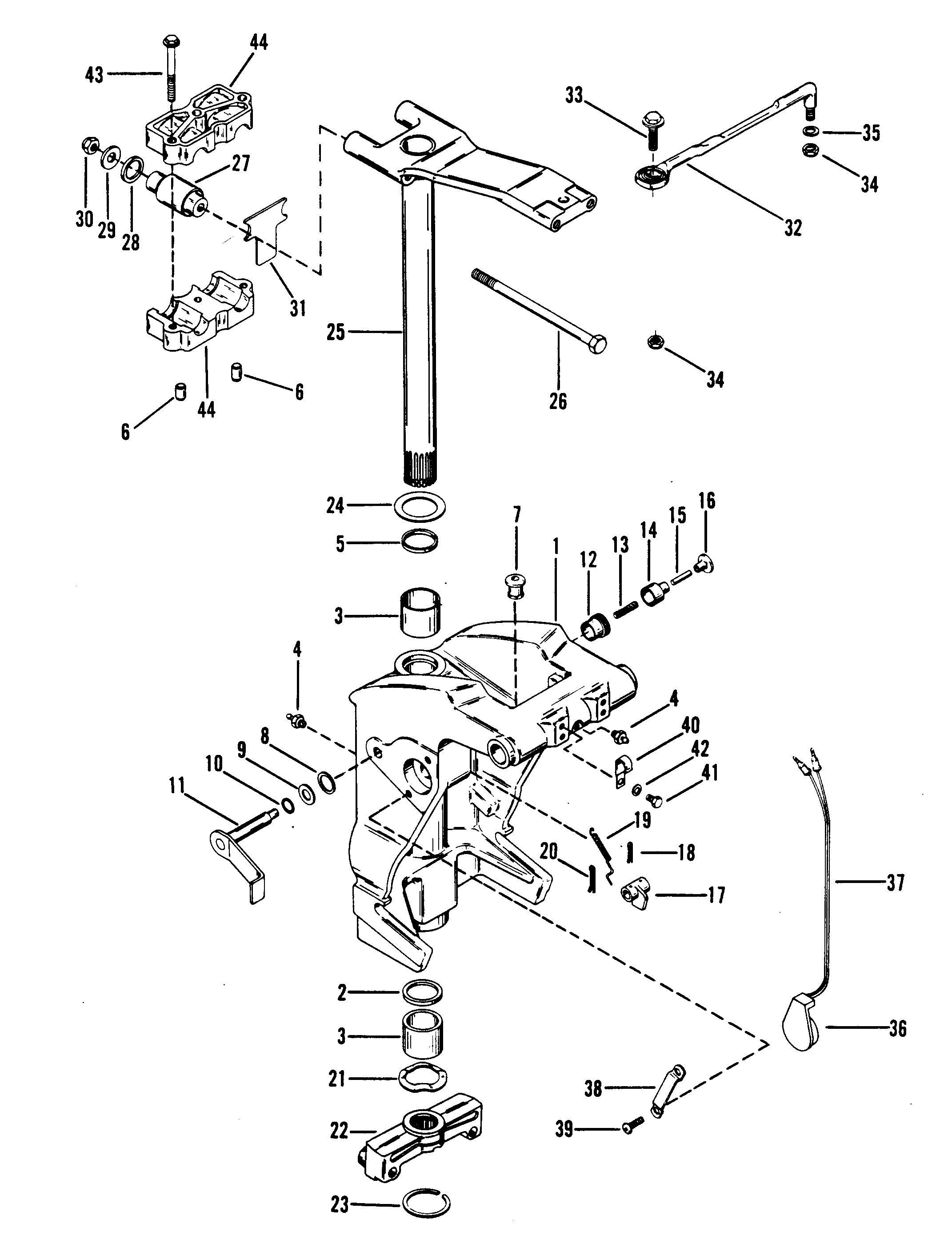

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 93861 Cotter Pin

Schematic Object Key : 20

Product Description : MERCURY 93861 Cotter Pin

Product Category : 250\275/ 0C101891 AND UP/ Swivel Bracket And Steering Arm

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 SWIVEL BRACKET ASSEMBLY (BLACK) 9225A 3
1 SWIVEL BRACKET ASSEMBLY (GRAY) 9225A 4
2 OIL SEAL (LOWER) 87735
3 BUSHING 818764
4 GREASE FITTING 74036
5 SPACER 67668
6 DOWEL PIN 63779
7 GROMMET 88341
8 OIL SEAL 85023
9 WASHER 87161
10 O-RING 48171
11 TILT LOCK LEVER (PORT) (BLACK) 85030A 2
11 TILT LOCK LEVER (STARBOARD) (BLACK) 85028A 2
11 TILT LOCK LEVER (PORT) (GRAY) 85030A 3
11 TILT LOCK LEVER (STARBOARD) (GRAY) 85028A 3
12 BUSHING 86600
13 SPRING 85367
14 PLUNGER 41052
15 STUD 88876
16 KNOB (BLACK) 86603
16 KNOB (GRAY) 86603T 6
17 COUPLING 86475 1
18 ROLL PIN 69745
19 SPRING 88049
20 COTTER PIN 93861
21 WAVE WASHER 78854
22 BOTTOM YOKE (BLACK) 96852T
22 BOTTOM YOKE (GRAY) 96852F 2
23 RETAINING RING 67684
24 THRUST WASHER 67670
25 SWIVEL PINP/STEERING ARM (BLACK) 840792A1
25 SWIVEL PIN/STEERING ARM (GRAY) 840792A1
25 SWIVEL PIN/STEERING ARM (BLACK) 840792A1
25 SWIVEL PIN/STEERING ARM (GRAY) 840792A1
26 SCREW 88659
26 SCREW 815452 1
27 MOUNT 77326
27 MOUNT 77326 1
28 WASHER 66921
28 WASHER 66921
29 WASHER 78688
29 WASHER 78688
30 NUT 34933
30 NUT 35000
31 BUMPER 8M0000516
31 BUMPER 8M0000516
32 STEERING LINK ASSEMBLY 92876A12
33 SCREW 849838
34 NUT 33826
35 WASHER 34931
36 TRIM SENDER ASSEMBLY 86485A 7
36 TILT SWITCH ASSEMBLY 86485A6
37 HARNESS (1 FEMALE/1 RING/2 MALES) 65017A19
37 HARNESS (2FEMALE/2 MALE) 65017A14
38 STRAP 88342
39 SCREW 87926
40 CLAMP 54457
41 SCREW 64014
42 WASHER 29245
43 SCREW 815162 90
44 CLAMP 15031 1
1 SWIVEL BRACKET ASSEMBLY (BLACK) 9225A 3
1 SWIVEL BRACKET ASSEMBLY (GRAY) 9225A 4
2 OIL SEAL (LOWER) 87735
3 BUSHING 818764
4 GREASE FITTING 74036
5 SPACER 67668
6 DOWEL PIN 63779
7 GROMMET 88341
8 OIL SEAL 85023
9 WASHER 87161
10 O-RING 48171
11 TILT LOCK LEVER (PORT) (BLACK) 85030A 2
11 TILT LOCK LEVER (STARBOARD) (BLACK) 85028A 2
11 TILT LOCK LEVER (PORT) (GRAY) 85030A 3
11 TILT LOCK LEVER (STARBOARD) (GRAY) 85028A 3
12 BUSHING 86600
13 SPRING 85367
14 PLUNGER 41052
15 STUD 88876
16 KNOB (BLACK) 86603
16 KNOB (GRAY) 86603T 6
17 COUPLING 86475 1
18 ROLL PIN 69745
19 SPRING 88049
20 COTTER PIN 93861
21 WAVE WASHER 78854
22 BOTTOM YOKE (BLACK) 96852T
22 BOTTOM YOKE (GRAY) 96852F 2
23 RETAINING RING 67684
24 THRUST WASHER 67670
25 SWIVEL PINP/STEERING ARM (BLACK) 840792A1
25 SWIVEL PIN/STEERING ARM (GRAY) 840792A1
25 SWIVEL PIN/STEERING ARM (BLACK) 840792A1
25 SWIVEL PIN/STEERING ARM (GRAY) 840792A1
26 SCREW 88659
26 SCREW 815452 1
27 MOUNT 77326
27 MOUNT 77326 1
28 WASHER 66921
28 WASHER 66921
29 WASHER 78688
29 WASHER 78688
30 NUT 34933
30 NUT 35000
31 BUMPER 8M0000516
31 BUMPER 8M0000516
32 STEERING LINK ASSEMBLY 92876A12
33 SCREW 849838
34 NUT 33826
35 WASHER 34931
36 TRIM SENDER ASSEMBLY 86485A 7
36 TILT SWITCH ASSEMBLY 86485A6
37 HARNESS (1 FEMALE/1 RING/2 MALES) 65017A19
37 HARNESS (2FEMALE/2 MALE) 65017A14
38 STRAP 88342
39 SCREW 87926
40 CLAMP 54457
41 SCREW 64014
42 WASHER 29245
43 SCREW 815162 90
44 CLAMP 15031 1



Quick Overview

PIN-COTTER 18

SKU : 93861

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061213234
