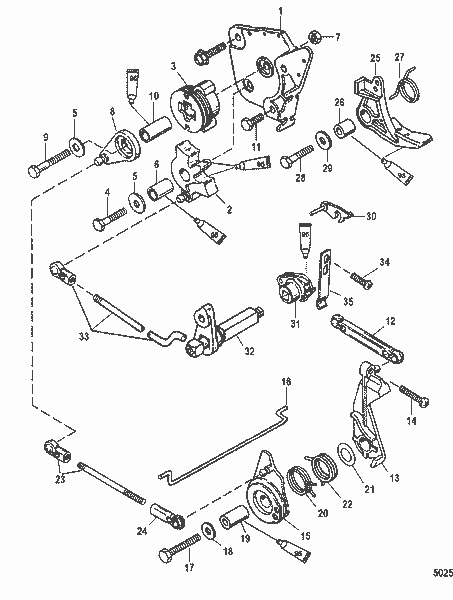

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 2
Product Description : MERCURY 94085A 1 Gear
Product Category : 15 SEA PRO/ 0P017000 THRU 0P325499/ Throttle And Shift Linkage(Tiller Handle)
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | CONTROL PLATFORM | 8M0047593 |
2 | GEAR | 94085A 1 |
3 | NOT SOLD SEPARATE (Gear) | NSS |
4 | SCREW, (M6 x 30) | 826650 |
5 | WASHER | 40023 16 |
6 | SPACER (Short) | 856737 |
7 | NUT, (M6) Stainless Steel | 40021 2 |
8 | LEVER, Primary | 42151 |
9 | SCREW, (M6 x 40) | 40003 33 |
10 | SPACER (Long) | 856738 |
11 | SCREW, (M6 x 16) | 40003 28 |
12 | TIMING LINK | 42167 1 |
13 | LEVER, Control | 42163 1 |
14 | SCREW, (M5 x 35) | 40019111 |
15 | ACTUATOR | 42166 2 |
16 | LINK INTERLOCK | 42161 |
17 | SCREW, (M6 x 40) | 40003 33 |
18 | WASHER, (.255 x .620 x .030) Stainless Steel | 69056 |
19 | BUSHING | 42162 1 |
20 | SPRING | 42164 |
21 | WAVE WASHER | 69708 |
22 | SPRING | 13676 |
23 | LINK ASSEMBLY, Throttle | 8M0084745 |
24 | SOCKET | 8M0084742 |
25 | LEVER | 42159 2 |
26 | BUSHING | 42158 1 |
27 | SPRING | 42160 |
28 | SCREW, (M6 x 30) | 40003 31 |
29 | WASHER, (.255 x .620 x .030) Stainless Steel | 69056 |
30 | LEVER | 42156 |
31 | LEVER | 42153 |
32 | SHIFT SHAFT | 815550 1 |
33 | SHIFT LINK | 815567T02 |
34 | SCREW, (M5 x 8) | 40001 1 |
35 | SPRING | 39627 |
1 | CONTROL PLATFORM | 8M0047593 |
2 | GEAR | 94085A 1 |
3 | NOT SOLD SEPARATE (Gear) | NSS |
4 | SCREW, (M6 x 30) | 826650 |
5 | WASHER | 40023 16 |
6 | SPACER (Short) | 856737 |
7 | NUT, (M6) Stainless Steel | 40021 2 |
8 | LEVER, Primary | 42151 |
9 | SCREW, (M6 x 40) | 40003 33 |
10 | SPACER (Long) | 856738 |
11 | SCREW, (M6 x 16) | 40003 28 |
12 | TIMING LINK | 42167 1 |
13 | LEVER, Control | 42163 1 |
14 | SCREW, (M5 x 35) | 40019111 |
15 | ACTUATOR | 42166 2 |
16 | LINK INTERLOCK | 42161 |
17 | SCREW, (M6 x 40) | 40003 33 |
18 | WASHER, (.255 x .620 x .030) Stainless Steel | 69056 |
19 | BUSHING | 42162 1 |
20 | SPRING | 42164 |
21 | WAVE WASHER | 69708 |
22 | SPRING | 13676 |
23 | LINK ASSEMBLY, Throttle | 8M0084745 |
24 | SOCKET | 8M0084742 |
25 | LEVER | 42159 2 |
26 | BUSHING | 42158 1 |
27 | SPRING | 42160 |
28 | SCREW, (M6 x 30) | 40003 31 |
29 | WASHER, (.255 x .620 x .030) Stainless Steel | 69056 |
30 | LEVER | 42156 |
31 | LEVER | 42153 |
32 | SHIFT SHAFT | 815550 1 |
33 | SHIFT LINK | 815567T02 |
34 | SCREW, (M5 x 8) | 40001 1 |
35 | SPRING | 39627 |
Quick Overview
GEAR ASSY
SKU : 94085A1
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061213630
