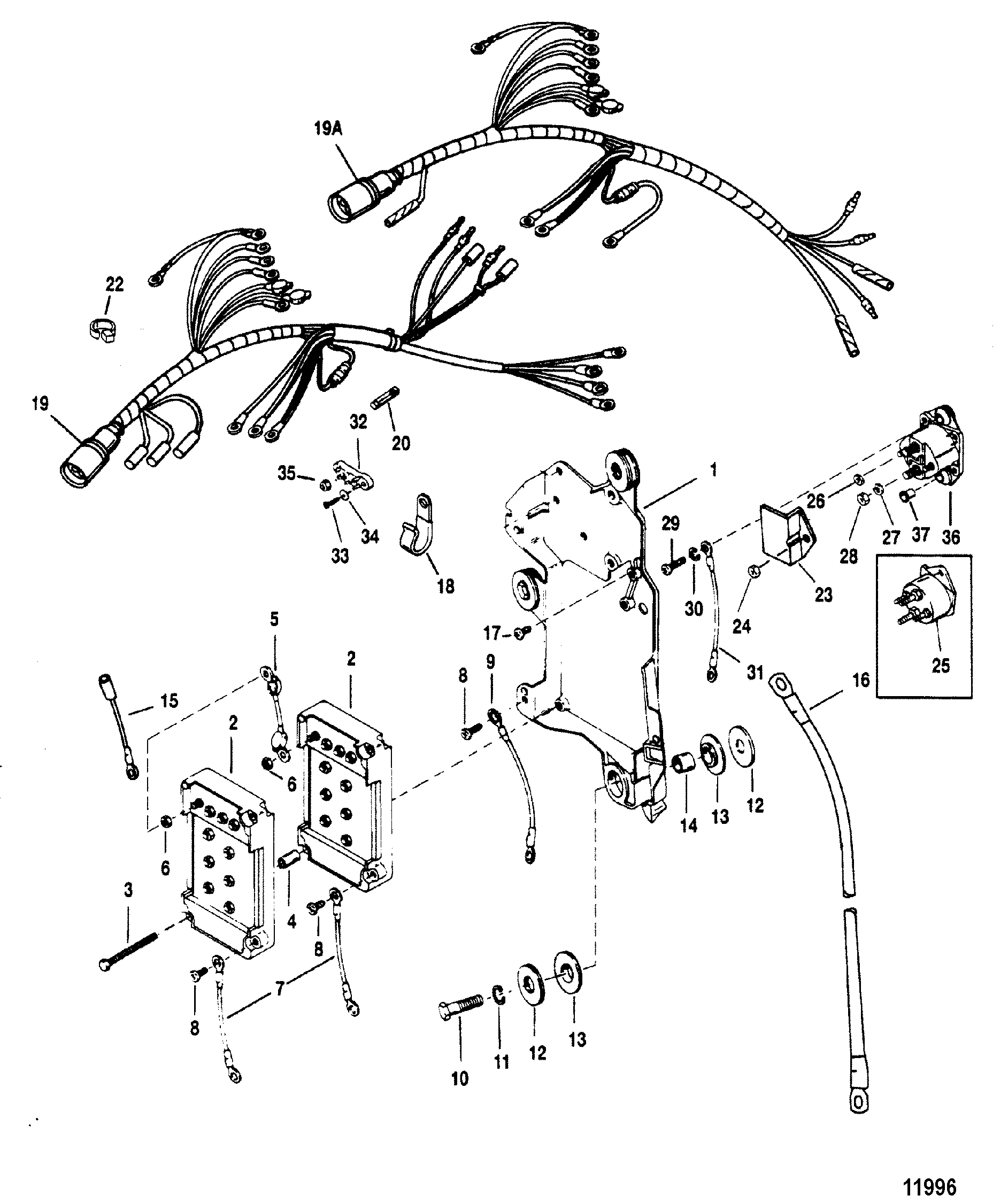

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 19
Product Description : MERCURY 96220A16 Harness Assembly, Engine Wiring
Product Category : V-150XRI (EFI)/ 0D082000 THRU 0G303045/ Wiring Harness\Starter Solenoid
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | IGNITION PLATE | 43429 2 |
2 | SWITCHBOX ASSEMBLY | 7778A12 |
3 | SCREW, (#12-24 x 2.00) | 13669 |
4 | BUSHING | 94453 |
5 | CABLE ASSEMBLY | 62310A 2 |
6 | NUT, (#10-32) Brass | 45076 |
7 | WIRE ASSEMBLY | 60871A10 |
8 | SCREW, (#10-16 x .380) | 878607 |
9 | CABLE ASSEMBLY, Black, Black | 65999A 3 |
10 | SCREW, (1.25) | 60411 |
11 | LOCKWASHER, (.312) | 26993 |
12 | WASHER | 36042 |
13 | WASHER, (Rubber), Rubber | 67264 |
14 | BUSHING | 67268 |
15 | CABLE ASSEMBLY (3" - White/Black) | 91865A 1 |
15 | CABLE ASSEMBLY (6" - Red/White) | 88528A 2 |
16 | CABLE ASSEMBLY, Positive - Battery | 88439A 3 |
16 | CABLE ASSEMBLY, Battery - Negative | 88439A 4 |
17 | SCREW, (#10-32 x .500) | 87926 |
18 | CLAMP, Old Design | 814634 |
19A | HARNESS ASSEMBLY, Engine Wiring | 826730A 4 |
19 | HARNESS ASSEMBLY, Engine Wiring | 96220A16 |
20 | FUSE, 20 Ampere | 79091 |
22 | TIE STRAP, (8.00 Inches) | 816311T |
23 | INSULATOR | 78866 |
24 | NUT, (#10-32) Brass | 45076 |
25 | SOLENOID ASSEMBLY, Starter | 853654A1 |
26 | NUT, (#10-32) Brass | 45076 |
27 | LOCKWASHER, (.312) | 53166 |
28 | NUT, (.312-18) | 68292 |
29 | SCREW, (.250-20 x 1.12), Use With Ref. #36 | 455611 |
29 | SCREW, (.250-20 x .620), Use With Ref. #25 | 31716 |
30 | LOCKWASHER, (.250) Stainless Steel, Use With Ref. #25 | 26992 |
31 | CABLE ASSEMBLY, Black, Black | 65999A 2 |
32 | TERMINAL BLOCK | 19437 2 |
33 | SCREW, (.190-32 x .620) | 38055 |
34 | WASHER, (.203 x .406 x .040) | 89302 |
35 | NUT, (#10-32) Brass | 45076 |
36 | SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals) | 817109A 2 |
37 | BUSHING | 818968 |
1 | IGNITION PLATE | 43429 2 |
2 | SWITCHBOX ASSEMBLY | 7778A12 |
3 | SCREW, (#12-24 x 2.00) | 13669 |
4 | BUSHING | 94453 |
5 | CABLE ASSEMBLY | 62310A 2 |
6 | NUT, (#10-32) Brass | 45076 |
7 | WIRE ASSEMBLY | 60871A10 |
8 | SCREW, (#10-16 x .380) | 878607 |
9 | CABLE ASSEMBLY, Black, Black | 65999A 3 |
10 | SCREW, (1.25) | 60411 |
11 | LOCKWASHER, (.312) | 26993 |
12 | WASHER | 36042 |
13 | WASHER, (Rubber), Rubber | 67264 |
14 | BUSHING | 67268 |
15 | CABLE ASSEMBLY (3" - White/Black) | 91865A 1 |
15 | CABLE ASSEMBLY (6" - Red/White) | 88528A 2 |
16 | CABLE ASSEMBLY, Positive - Battery | 88439A 3 |
16 | CABLE ASSEMBLY, Battery - Negative | 88439A 4 |
17 | SCREW, (#10-32 x .500) | 87926 |
18 | CLAMP, Old Design | 814634 |
19A | HARNESS ASSEMBLY, Engine Wiring | 826730A 4 |
19 | HARNESS ASSEMBLY, Engine Wiring | 96220A16 |
20 | FUSE, 20 Ampere | 79091 |
22 | TIE STRAP, (8.00 Inches) | 816311T |
23 | INSULATOR | 78866 |
24 | NUT, (#10-32) Brass | 45076 |
25 | SOLENOID ASSEMBLY, Starter | 853654A1 |
26 | NUT, (#10-32) Brass | 45076 |
27 | LOCKWASHER, (.312) | 53166 |
28 | NUT, (.312-18) | 68292 |
29 | SCREW, (.250-20 x 1.12), Use With Ref. #36 | 455611 |
29 | SCREW, (.250-20 x .620), Use With Ref. #25 | 31716 |
30 | LOCKWASHER, (.250) Stainless Steel, Use With Ref. #25 | 26992 |
31 | CABLE ASSEMBLY, Black, Black | 65999A 2 |
32 | TERMINAL BLOCK | 19437 2 |
33 | SCREW, (.190-32 x .620) | 38055 |
34 | WASHER, (.203 x .406 x .040) | 89302 |
35 | NUT, (#10-32) Brass | 45076 |
36 | SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals) | 817109A 2 |
37 | BUSHING | 818968 |
