MERCURY 98294A 1 Bearing Assembly, Roller

Write a Review
$37.42
SKU:
98294A1
Schematic Object Key:
14

MERCURY 98294A 1 Bearing Assembly, Roller

$37.42

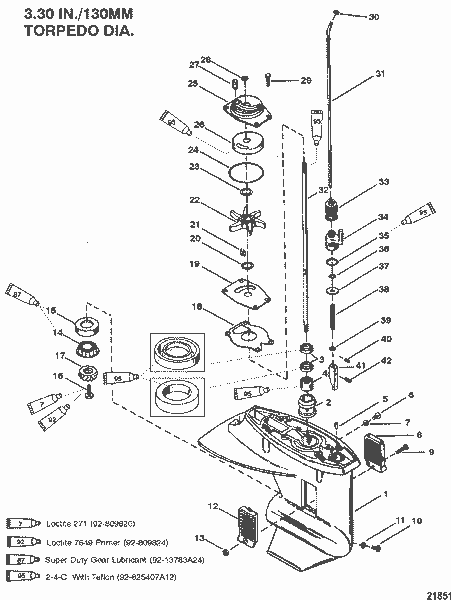

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 98294A 1 Bearing Assembly, Roller

Schematic Object Key : 14

Product Description : MERCURY 98294A 1 Bearing Assembly, Roller

Product Category : 25, 25 SEA PRO, SUPER 15 (2 CYL.)/ 0G044027 THRU 0G760299/ Gear Housing(Driveshaft)(2.25:1 Gear Ratio)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- GEAR HOUSING ASSEMBLY 8669T26
- GEAR HOUSING ASSEMBLY 8669T28
- GEAR HOUSING ASSEMBLY 8669T27
- GEAR HOUSING ASSEMBLY 8669T29
- GEAR HOUSING ASSEMBLY 8669A30
1 GEAR HOUSING ASSEMBLY, Basic-Black 8M0083538
1 GEAR HOUSING ASSEMBLY, Basic-Gray 8669A22
1 GEAR HOUSING ASSEMBLY 8669A39
2 NOT SOLD SEPARATE, Sleeve NSS
3 SEAL 99325
4 BEARING, Roller 41326
5 PIN, Dowel (.187 x .530) 8M0084726
6 SCREW KIT, (.375-16 x .250) 79953Q04
7 WASHER, Fiber 191833
8 SCREEN, Water Inlet Port 41133
9 SCREW, (M5 x 40) 40031112
10 FITTING KIT, Magnetic, Plug Fill/Drain 8M0058389
11 WASHER, Fiber 191833
12 SCREEN 41134
13 NUT, (M5) 40026 3
14 BEARING ASSEMBLY, Roller 98294A 1
15 NOT SOLD SEPARATE, Cup NSS
16 SCREW, (.250-28 x .750) 49908
17 GEAR, Pinion (12 TEETH) 98302
18 GASKET 99326 1
19 FACE PLATE 85083
20 WASHER 86645 1
21 KEY 8M0032838
22 IMPELLER 8508910
23 WASHER 86645 1
24 O-RING 69202
25 PUMP ASSEMBLY, Water 99157A02
26 NOT SOLD SEPARATE, Insert NSS
27 SEAL 85090001
28 O-RING, RUBBER 86203
29 SCREW, (M6 x 16) 824832 4
30 WASHER, (.281 x .500 x .060) Stainless Steel 29245
31 SHIFT SHAFT 85126 3
31 SHIFT SHAFT 86293 3
32 DRIVESHAFT 99199
32 DRIVESHAFT 99198
33 BOOT 85552001
34 RETAINER 93878
35 O-RING, (.734 x .139) 35276
36 O-RING, (.239 x .174) 85594
37 WASHER 85091
38 SPRING 93007
39 WASHER, (.281 x .500 x .060) Stainless Steel 29245
40 PIN, (.078 x .437) 85593
41 SHIFT CAM 85562A 2
42 PIN, Drive 85096
- GASKET SET 41499A88
- SEAL KIT 85090A 2
- REPAIR KIT, Water Pump 99157T2
- GEAR HOUSING ASSEMBLY 8669T26
- GEAR HOUSING ASSEMBLY 8669T28
- GEAR HOUSING ASSEMBLY 8669T27
- GEAR HOUSING ASSEMBLY 8669T29
- GEAR HOUSING ASSEMBLY 8669A30
1 GEAR HOUSING ASSEMBLY, Basic-Black 8M0083538
1 GEAR HOUSING ASSEMBLY, Basic-Gray 8669A22
1 GEAR HOUSING ASSEMBLY 8669A39
2 NOT SOLD SEPARATE, Sleeve NSS
3 SEAL 99325
4 BEARING, Roller 41326
5 PIN, Dowel (.187 x .530) 8M0084726
6 SCREW KIT, (.375-16 x .250) 79953Q04
7 WASHER, Fiber 191833
8 SCREEN, Water Inlet Port 41133
9 SCREW, (M5 x 40) 40031112
10 FITTING KIT, Magnetic, Plug Fill/Drain 8M0058389
11 WASHER, Fiber 191833
12 SCREEN 41134
13 NUT, (M5) 40026 3
14 BEARING ASSEMBLY, Roller 98294A 1
15 NOT SOLD SEPARATE, Cup NSS
16 SCREW, (.250-28 x .750) 49908
17 GEAR, Pinion (12 TEETH) 98302
18 GASKET 99326 1
19 FACE PLATE 85083
20 WASHER 86645 1
21 KEY 8M0032838
22 IMPELLER 8508910
23 WASHER 86645 1
24 O-RING 69202
25 PUMP ASSEMBLY, Water 99157A02
26 NOT SOLD SEPARATE, Insert NSS
27 SEAL 85090001
28 O-RING, RUBBER 86203
29 SCREW, (M6 x 16) 824832 4
30 WASHER, (.281 x .500 x .060) Stainless Steel 29245
31 SHIFT SHAFT 85126 3
31 SHIFT SHAFT 86293 3
32 DRIVESHAFT 99199
32 DRIVESHAFT 99198
33 BOOT 85552001
34 RETAINER 93878
35 O-RING, (.734 x .139) 35276
36 O-RING, (.239 x .174) 85594
37 WASHER 85091
38 SPRING 93007
39 WASHER, (.281 x .500 x .060) Stainless Steel 29245
40 PIN, (.078 x .437) 85593
41 SHIFT CAM 85562A 2
42 PIN, Drive 85096
- GASKET SET 41499A88
- SEAL KIT 85090A 2
- REPAIR KIT, Water Pump 99157T2



Quick Overview

BEARING KIT 31

SKU : 98294A1

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061224513
