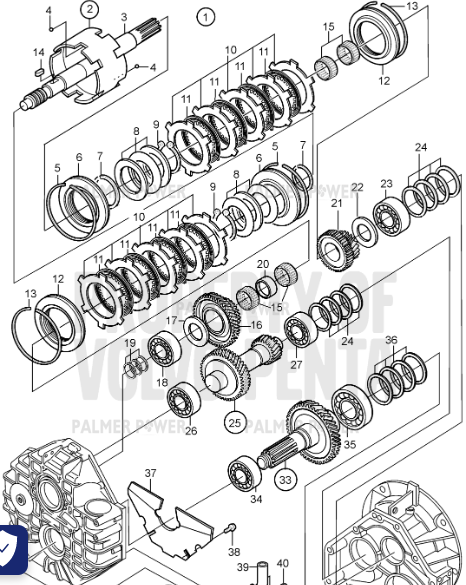

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 1
Product Description : Reversing Gear Part No. 21107103 2 INPUT SHAFT Part No. 3886766 3 Input Shaft Part No. 3886768 4 Ball Part No. 3582113 5 Ring Part No. 3582109 6 Piston Part No. 3817768 7 Piston Ring Part No. 3582111 8 Spring Disc Part No. 3817767 9 Retaining Ring Part No. 3582116 10 DISC Part No. 3582101 Included In Service Kit 23370770 11 Disc Part No. 3582099 Included In Service Kit 23370770 12 End Disc Part No. 3817764 13 Snap Ring Part No. 3582103 14 Key Part No. 3582089 Included In Service Kit 23370770 15 Bearing Part No. 3582177 16 Gear Part No. 3582079 17 Friction Washer Part No. 3582080 Included In Service Kit 23370770 18 Bearing Part No. 3582084 19 Piston Ring Part No. 3582087 20 Spacer Part No. 3886770 21 Gear Part No. 3886771 22 Friction Washer Part No. 3582080 23 Roller Bearing Part No. 18473 24 Shim Part No. 3582091 TH=0.10mm 24 Shim Part No. 3582093 TH=0.15mm 24 Shim Part No. 3582094 TH=0,20mm 24 Shim Part No. 3582097 TH=0,50mm 25 Countershaft Kit Part No. 3886772 26 Roller Bearing Part No. 183510 27 Roller Bearing Part No. 184083 28 Flange Screw Part No. 975126 29 Spacer Part No. 3582126 30 O-Ring Part No. 3582122 31 Flange Part No. 3582123 32 Seal Part No. 3582052 33 Output Shaft Part No. 3886773 34 Roller Bearing Part No. 11137 35 Roller Bearing Part No. 184595 36 Shim Part No. 3582133 TH=0.10mm 36 Shim Part No. 3582135 TH=0.15mm 36 Shim Part No. 3582137 TH=0,30mm 36 Shim Part No. 3582139 TH=0,50mm 37 Baffle Plate Part No. 3582071 38 Hex. Socket Screw Part No. 942001 39 Pipe Part No. 3582062 40 Hex. Socket Screw Part No. 94200
Product Category : HS63A / Marine Propulsion
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | Reversing Gear | Part No. 21107103 |
2 | INPUT SHAFT | Part No. 3886766 |
3 | Input Shaft | Part No. 3886768 |
4 | Ball | Part No. 3582113 |
5 | Ring | Part No. 3582109 |
6 | Piston | Part No. 3817768 |
7 | Piston Ring | Part No. 3582111 |
8 | Spring Disc | Part No. 3817767 |
9 | Retaining Ring | Part No. 3582116 |
10 | DISC | Part No. 3582101 |
11 | Disc | Part No. 3582099 |
12 | End Disc | Part No. 3817764 |
13 | Snap Ring | Part No. 3582103 |
14 | Key | Part No. 3582089 |
15 | Bearing | Part No. 3582177 |
16 | Gear | Part No. 3582079 |
17 | Friction Washer | Part No. 3582080 |
18 | Bearing | Part No. 3582084 |
19 | Piston Ring | Part No. 3582087 |
20 | Spacer | Part No. 3886770 |
21 | Gear | Part No. 3886771 |
22 | Friction Washer | Part No. 3582080 |
23 | Roller Bearing | Part No. 18473 |
24 | Shim | Part No. 3582091 |
24 | Shim | Part No. 3582093 |
24 | Shim | Part No. 3582094 |
24 | Shim | Part No. 3582097 |
25 | Countershaft Kit | Part No. 3886772 |
26 | Roller Bearing | Part No. 183510 |
27 | Roller Bearing | Part No. 184083 |
28 | Flange Screw | Part No. 975126 |
29 | Spacer | Part No. 3582126 |
30 | O-Ring | Part No. 3582122 |
31 | Flange | Part No. 3582123 |
32 | Seal | Part No. 3582052 |
33 | Output Shaft | Part No. 3886773 |
34 | Roller Bearing | Part No. 11137 |
35 | Roller Bearing | Part No. 184595 |
36 | Shim | Part No. 3582133 |
36 | Shim | Part No. 3582135 |
36 | Shim | Part No. 3582137 |
36 | Shim | Part No. 3582139 |
37 | Baffle Plate | Part No. 3582071 |
38 | Hex. Socket Screw | Part No. 942001 |
39 | Pipe | Part No. 3582062 |
40 | Hex. Socket Screw | Part No. 942001 |
