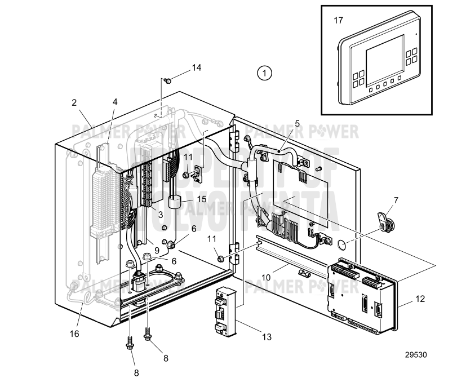

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 5
Product Description : Wiring Harness Part No. 23009948
Product Category : D13C1-A MG / Other Electrical Equipment
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | BOX | Part No. 23007525 |
2 | Box | Part No. 23270666 |
3 | Relay Unit | Part No. 23009950 |
4 | Terminal Block | Part No. 23009945 |
5 | Wiring Harness | Part No. 23009948 |
6 | Flange Lock Nut | Part No. 990950 |
7 | Switch | Part No. 23270817 |
8 | Flange Screw | Part No. 60114374 |
9 | Terminal Block | Part No. 23013107 |
10 | Rail | Part No. 23014246 |
11 | Flange Lock Nut | Part No. 990949 |
12 | Electronic Unit | Part No. 23226590 |
13 | Electronic Unit | Part No. 23272083 |
14 | Flange Screw | Part No. 996063 |
15 | Alarm | Part No. 3817974 |
16 | Wiring Harness | Part No. 23109879 |
17 | Electronic Unit | Remote Panel For MCC System | Part No. 23226587 |
Quick Overview
WIRING HARNESS
SKU : 23009948
PRE: VOL
BRAND: VOLVO
COMPANY: Volvo
