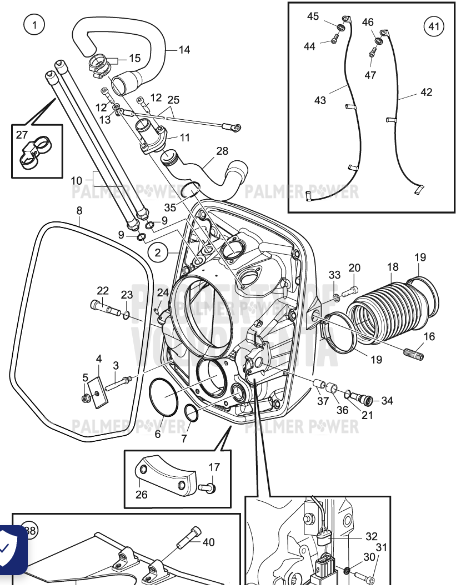

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 41
Product Description : Ground Connection Part No. 23082832 Ground Wires, For Bellow Clamps 42 Wire Part No. 23083904 43 Wire Part No. 23083906 44 Six Point Socket Screw Part No. 984298 45 Washer Part No. 941670
Product Category : DPH-C / Marine Propulsion
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | Shield Kit | Part No. 21857917 |
1 | Shield Kit | Part No. 22475776 |
1 | Shield Kit | Part No. 21857918 |
1 | Shield Kit | Part No. 22475777 |
1 | Shield Kit | Part No. 21857919 |
1 | Shield Kit | Part No. 22475778 |
1 | Shield Kit | Part No. 21857921 |
2 | Shield | Part No. 3809881 |
3 | Stud | Part No. 873316 |
4 | Washer | Part No. 852866 |
5 | Lock Nut | Part No. 963108 |
6 | O-Ring | Part No. 925259 |
7 | O-Ring | Part No. 925068 |
8 | Seal | Part No. 3862353 |
9 | O-Ring | Part No. 3852537 |
10 | Hose | Part No. 3856800 |
11 | Pipe | Part No. 3863303 |
12 | Hex. Socket Screw | Part No. 946541 |
13 | Washer | Part No. 941670 |
14 | Hose | Part No. 3808170 |
15 | Hose Clamp | Part No. 961670 |
16 | Spindle | Part No. 3862810 |
17 | Six Point Socket Screw | Part No. 984257 |
18 | Exhaust Bellows | Part No. 3588753 |
19 | Hose Clamp | Part No. 853012 |
20 | Six Point Socket Screw | Part No. 984258 |
21 | O-Ring | Part No. 975664 |
22 | Pivot Pin | Part No. 3862809 |
23 | O-Ring | Part No. 976107 |
24 | Set Screw | Part No. 984390 |
25 | Ground Cable | Part No. 3863269 |
26 | Anode Kit | Zinc | Part No. 3588745 |
26 | Anode Kit | Aluminium | Part No. 3588770 |
26 | Anode Kit | Magnesium | Part No. 3588768 |
27 | Retainer | Part No. 3850115 |
28 | Kit | Part No. 3588767 |
29 | Service Kit | Trim | Part No. 3818189 |
30 | Washer | Part No. 940275 |
31 | Hex. Socket Screw | Part No. 963675 |
32 | Wiring Harness | Part No. 3809539 |
33 | Washer | Part No. 941670 |
34 | Pivot Pin | Part No. 3809887 |
34 | Pivot Pin | Part No. 22093448 |
35 | O-Ring | Part No. 925092 |
36 | Bushing | Part No. 3863092 |
37 | Bushing | Part No. 3863093 |
38 | Plate | Part No. 21119437 |
38 | Plate | Part No. 21119438 |
38 | Plate | Part No. 21119439 |
38 | Plate | Part No. 21119440 |
39 | Plate | Part No. 21119437 |
40 | Six Point Socket Screw | Part No. 984258 |
41 | Ground Connection | Part No. 23082832 |
42 | Wire | Part No. 23083904 |
43 | Wire | Part No. 23083906 |
44 | Six Point Socket Screw | Part No. 984298 |
45 | Washer | Part No. 941670 |
46 | Hex. Socket Screw | Part No. 963675 |
47 | Washer | Part No. 940275 |
Quick Overview
GROUND CONNECTION
SKU : 23082832
PRE: VOL
BRAND: VOLVO
COMPANY: Volvo
