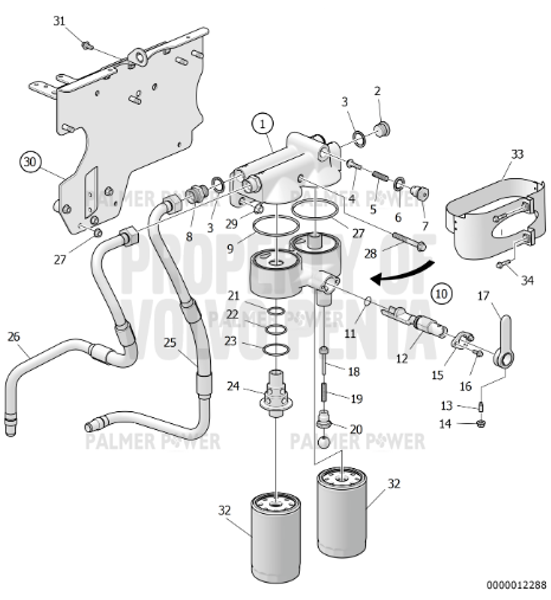

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 5
Product Description : Compression Spring Part No. 23699753
Product Category : D8A5-A MG / Lubricating and Oil System
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
2 | Plug | Part No. 1698627 |
3 | Gasket | Part No. 977937 |
4 | Valve Cone | Part No. 471085 |
5 | Compression Spring | Part No. 23699753 |
6 | Gasket | Part No. 976932 |
7 | Plug | Part No. 23687599 |
8 | Nipple | Part No. 941582 |
9 | X-Ring | Part No. 993235 |
11 | O-Ring | Part No. 949657 |
12 | Selector Valve | Part No. 21845907 |
13 | Set Screw | Part No. 962979 |
14 | Flange Nut | Part No. 990940 |
15 | Flange | Part No. 842912 |
16 | Flange Screw | Part No. 984725 |
17 | Hand Lever | Part No. 21846091 |
18 | Dowel | Part No. 3830181 |
19 | Compression Spring | Part No. 466653 |
20 | Sleeve | Part No. 3830176 |
22 | O-Ring | Part No. 948610 |
23 | O-Ring | Part No. 969415 |
24 | Adapter | Part No. 21346370 |
25 | Pipe | Part No. 23398320 |
26 | Pipe | Part No. 23397805 |
27 | Flange Nut | Part No. 990940 |
28 | Flange Screw | Part No. 984762 |
29 | Flange Nut | Part No. 990941 |
30 | Bracket | Part No. 23308380 |
31 | Flange Screw | Part No. 984733 |
33 | Shield | Part No. 23954754 |
34 | Flange Screw | Part No. 984737 |
1 | OIL FILTER | Oil Filter Kit | Part No. 24005323 |
10 | VALVE HOUSING | Part No. 3829974 |
21 | O-Ring | Part No. 3165747 |
32 | Oil Filter | Part No. 23075366 |
