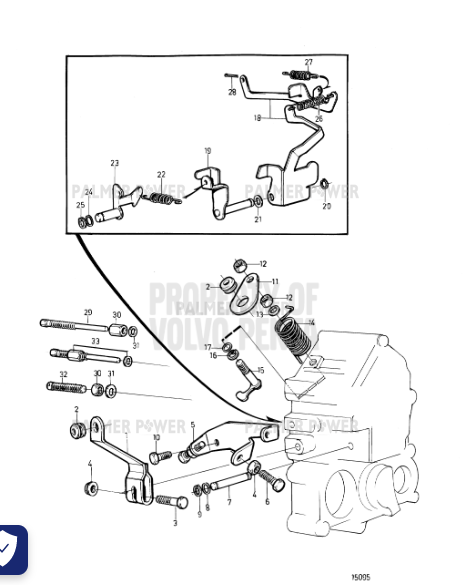

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 28
Product Description : Locking Pin Part No. 3580032
Product Category : MD2010-C / Fuel System
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | Intermediate Lever | Speed Control | Part No. 3580036 |
2 | Bushing | Part No. 843109 |
3 | Hexagon Screw | Part No. 955275 |
4 | Flange Nut | Part No. 945407 |
5 | Stay | Part No. 3580042 |
6 | Hexagon Screw | Part No. 955274 |
7 | Shaft | Part No. 3809019 |
8 | O-Ring | Part No. 3580040 |
9 | Lock Ring | Part No. 3580041 |
10 | Flange Screw | Part No. 945414 |
11 | Intermediate Lever | Stop | Part No. 3580051 |
12 | Hexagon Nut | Part No. 955782 |
13 | Washer | Part No. 191172 |
14 | Spring | Part No. 3580048 |
15 | Arm | Part No. 3580045 |
16 | Lock Ring | Part No. 3580046 |
17 | O-Ring | Part No. 3580047 |
18 | Intermediate Lever | Part No. 3580027 |
19 | INTERMEDIATE LEVER | Part No. 3580028 |
20 | Lock Ring | Part No. 3580030 |
21 | Washer | Part No. 3580031 |
22 | Spring | Part No. 3580033 |
23 | Arm | Part No. 3580034 |
24 | O-Ring | Part No. 3580035 |
25 | Lock Ring | Part No. 3580030 |
26 | Spring | Part No. 3580058 |
27 | Spring | Part No. 3580057 |
28 | Locking Pin | Part No. 3580032 |
30 | Nut | Part No. 3583664 |
31 | Sealing Ring | Part No. 3580087 |
32 | Screw | Part No. 3580089 |
33 | Adjusting Screw | Part No. 3580086 |
Quick Overview
LOCKING PIN
SKU : 3580032
PRE: VOL
BRAND: VOLVO
COMPANY: Volvo
