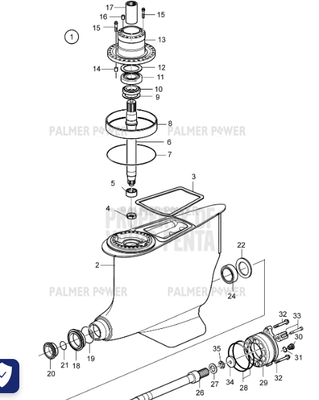

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 1
Product Description : Lower Gear, Reman Part No. 3801678 Ratio 1,84:1 2 GEAR HOUSING Part No. 21806821 3 Seal Part No. 21912312 4 Nut Part No. 3840628 5 Needle Roller Bearing Part No. 184078 6 Shaft Part No. 21816449 7 O-Ring Part No. 992376 8 Ring Part No. 21965725 9 Shim Part No. 983158 TH=0,10mm 9 Shim Part No. 983159 TH=0.15mm 9 Shim Part No. 983160 TH=0.35mm 10 Roller Bearing Part No. 184619 11 Roller Bearing Part No. 184660 12 Shim Part No. 991100 TH=0,10mm 12 Shim Part No. 991101 TH=0.15mm 12 Shim Part No. 991102 TH=0.35mm 13 Steering Head Part No. 3818633 14 Guide Sleeve Part No. 3862569 15 Screw Part No. 3860364 16 Guide Sleeve Part No. 3862569 17 Splined Sleeve Part No. 21697729 18 O-Ring Part No. 967344 19 Seal Part No. 22669953 20 O-Ring Part No. 969415 21 Seal Part No. 22669955 22 Shim Part No. 942087 TH=0,10mm 22 Shim Part No. 942088 TH=0.35mm 22 Shim Part No. 996498 TH=0.15mm 23 GEAR SET Part No. 21809793 24 Needle Roller Bearing Part No. 996462 25 Shim Part No. 3860615 TH=0,05mm 25 Shim Part No. 3860616 TH=0,08mm 25 Shim Part No. 3860617 TH=0.10mm 25 Shim Part No. 3860618 TH=0,13mm 25 Shim Part No. 3860619 TH=0,25mm 26 Shaft Part No. 21815869 27 Adjusting Washer Part No. 22744268 TH=2,80mm 27 Adjusting Washer Part No. 3840474 TH=2,85mm 27 Adjusting Washer Part No. 3840475 TH=2,90mm 27 Adjusting Washer Part No. 3840476 TH=3,00mm 27 Adjusting Washer Part No. 3840477 TH=3,05mm 27 Adjusting Washer Part No. 22744269 TH=3,10mm 27 Adjusting Washer Part No. 3848749 TH=3,15mm 27 Adjusting Washer Part No. 22890460 TH=3,50mm 28 O-Ring Part No. 948976 29 Bearing Carrier Part No. 21829469 30 Magnetic Plug Part No. 22227227 31 O-Ring Part No. 949656 32 Hex. Socket Screw Part No. 963711 33 Anode Kit | Cast Iron Part No. 359398
Product Category : IPS15-A / Marine Propulsion
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | Lower Gear, Reman | Part No. 3801678 |
2 | GEAR HOUSING | Part No. 21806821 |
3 | Seal | Part No. 21912312 |
4 | Nut | Part No. 3840628 |
5 | Needle Roller Bearing | Part No. 184078 |
6 | Shaft | Part No. 21816449 |
7 | O-Ring | Part No. 992376 |
8 | Ring | Part No. 21965725 |
9 | Shim | Part No. 983158 |
9 | Shim | Part No. 983159 |
9 | Shim | Part No. 983160 |
10 | Roller Bearing | Part No. 184619 |
11 | Roller Bearing | Part No. 184660 |
12 | Shim | Part No. 991100 |
12 | Shim | Part No. 991101 |
12 | Shim | Part No. 991102 |
13 | Steering Head | Part No. 3818633 |
14 | Guide Sleeve | Part No. 3862569 |
15 | Screw | Part No. 3860364 |
16 | Guide Sleeve | Part No. 3862569 |
17 | Splined Sleeve | Part No. 21697729 |
18 | O-Ring | Part No. 967344 |
19 | Seal | Part No. 22669953 |
20 | O-Ring | Part No. 969415 |
21 | Seal | Part No. 22669955 |
22 | Shim | Part No. 942087 |
22 | Shim | Part No. 942088 |
22 | Shim | Part No. 996498 |
23 | GEAR SET | Part No. 21809793 |
24 | Needle Roller Bearing | Part No. 996462 |
25 | Shim | Part No. 3860615 |
25 | Shim | Part No. 3860616 |
25 | Shim | Part No. 3860617 |
25 | Shim | Part No. 3860618 |
25 | Shim | Part No. 3860619 |
26 | Shaft | Part No. 21815869 |
27 | Adjusting Washer | Part No. 22744268 |
27 | Adjusting Washer | Part No. 3840474 |
27 | Adjusting Washer | Part No. 3840475 |
27 | Adjusting Washer | Part No. 3840476 |
27 | Adjusting Washer | Part No. 3840477 |
27 | Adjusting Washer | Part No. 22744269 |
27 | Adjusting Washer | Part No. 3848749 |
27 | Adjusting Washer | Part No. 22890460 |
28 | O-Ring | Part No. 948976 |
29 | Bearing Carrier | Part No. 21829469 |
30 | Magnetic Plug | Part No. 22227227 |
31 | O-Ring | Part No. 949656 |
32 | Hex. Socket Screw | Part No. 963711 |
33 | Anode Kit | Cast Iron | Part No. 3593981 |
