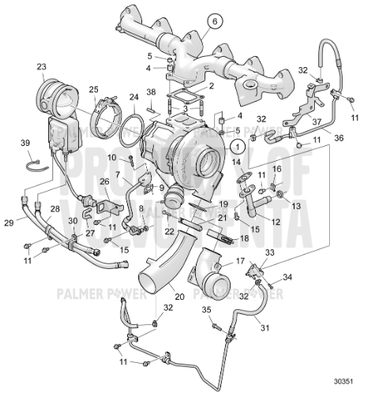

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 1
Product Description : Turbocharger Part No. 3802062 (848275) 2 | Turbine Housing 3 | Compressor Housing 4 | Bearing Housing 5 Shield Part No. 838563 6 Bushing Part No. 838562 Included In Overhaul Kit. 7 PISTON RING Part No. 858670 Included In Overhaul Kit. 8 PISTON RING Part No. 858669 Included In Overhaul Kit. 9 Lock Ring Part No. 845042 Included In Overhaul Kit. 10 Axial Bearing Part No. 858710 Included In Overhaul Kit. 11 Oil Deflector Part No. 845047 Included In Overhaul Kit. 12 Rotor Part No. 849587 Included In Overhaul Kit. 13 Rotor Part No. 849588 Included In Overhaul Kit. 14 Compressor Wheel Part No. 849589 Included In Overhaul Kit. 15 THRUST WASHER Part No. 844000 Included In Overhaul Kit. 16 SLEEVE Part No. 845050 Included In Overhaul Kit. 17 Bushing Part No. 858674 Included In Overhaul Kit. 18 Seal Part No. 858675 Included In Overhaul Kit. 19 Lock Nut Part No. 848711 Included In Overhaul Kit. 20 | Thrust Plate 21 Screw Part No. 845829 Included In Overhaul Kit. 22 O-Ring Part No. 847643 Included In Overhaul Kit. 23 Hexagon Screw Part No. 955270 Included In Overhaul Kit., (858661) 24 O-Ring Part No. 838426 Included In Overhaul Kit. 25 Segment Part No. 847646 Included In Overhaul Kit. 26 Hexagon Screw Part No. 955269 Included In Overhaul Kit. 27 Segment Part No. 838578 Included In Overhaul Kit.
Product Category : TAMD61A / Inlet and Exhaust System
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
| Key | Name | Part No. |
|---|---|---|
| 1 | Turbocharger | Part No. 3802062 |
| 5 | Shield | Part No. 838563 |
| 6 | Bushing | Part No. 838562 |
| 7 | PISTON RING | Part No. 858670 |
| 8 | PISTON RING | Part No. 858669 |
| 9 | Lock Ring | Part No. 845042 |
| 10 | Axial Bearing | Part No. 858710 |
| 11 | Oil Deflector | Part No. 845047 |
| 12 | Rotor | Part No. 849587 |
| 13 | Rotor | Part No. 849588 |
| 14 | Compressor Wheel | Part No. 849589 |
| 15 | THRUST WASHER | Part No. 844000 |
| 16 | SLEEVE | Part No. 845050 |
| 17 | Bushing | Part No. 858674 |
| 18 | Seal | Part No. 858675 |
| 19 | Lock Nut | Part No. 848711 |
| 21 | Screw | Part No. 845829 |
| 22 | O-Ring | Part No. 847643 |
| 23 | Hexagon Screw | Part No. 955270 |
| 24 | O-Ring | Part No. 838426 |
| 25 | Segment | Part No. 847646 |
| 26 | Hexagon Screw | Part No. 955269 |
| 27 | Segment | Part No. 838578 |
| 28 | Repair Kit | Part No. 849590 |
Quick Overview
TURBOCHARGER
SKU : 3802062
PRE: VOL
BRAND: VOLVO
COMPANY: Volvo
