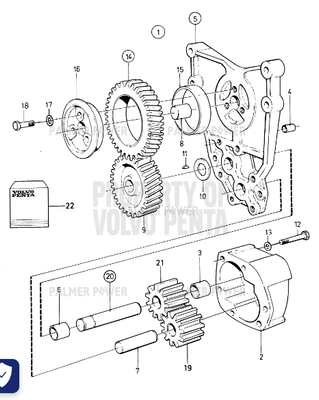

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 1
Product Description : Oil Pump Part No. 479317 2 | Oil Pump Housing 3 Guide Sleeve Part No. 401146 4 Bushing Part No. 470347 Included In Overhaul Kit. 5 | Shaft, With Gear Included In Overhaul Kit. 6 | Shaft, With Gear Included In Overhaul Kit. 7 Bracket Part No. 470348 8 Pin Part No. 191171 9 Bushing Part No. 470347 Included In Overhaul Kit. 10 Hexagon Screw Part No. 955529 11 Spring Washer Part No. 941907 12 Gear Part No. 478232 13 Gear Part No. 422047 14 Bushing Part No. 422314 15 Bearing Sleeve Part No. 422313 16 Spring Washer Part No. 941907 17 Hexagon Screw Part No. 940186
Product Category : TAD1030GE / Lubricating and Oil System
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | Oil Pump | Part No. 479317 |
3 | Guide Sleeve | Part No. 401146 |
4 | Bushing | Part No. 470347 |
7 | Bracket | Part No. 470348 |
8 | Pin | Part No. 191171 |
9 | Bushing | Part No. 470347 |
10 | Hexagon Screw | Part No. 955529 |
11 | Spring Washer | Part No. 941907 |
12 | Gear | Part No. 478232 |
13 | Gear | Part No. 422047 |
14 | Bushing | Part No. 422314 |
15 | Bearing Sleeve | Part No. 422313 |
16 | Spring Washer | Part No. 941907 |
17 | Hexagon Screw | Part No. 940186 |
18 | Overhaul Kit | Part No. 276152 |
Quick Overview
OIL PUMP
SKU : 479317
PRE: VOL
BRAND: VOLVO
COMPANY: Volvo
