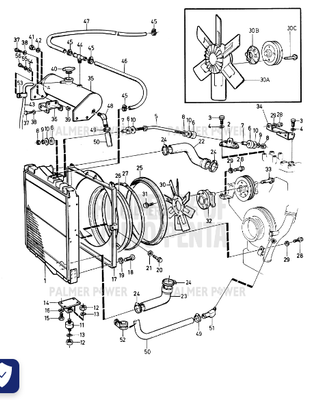

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 42
Product Description : Fan | Pusher Type Part No. 848924
Product Category : TAD1230G / Cooling System
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | Radiator | Part No. 866089 |
1 | Radiator | Part No. 3829280 |
2 | Pressure Cap | Part No. 866095 |
3 | Plug | Part No. 960630 |
4 | Gasket | Part No. 969011 |
5 | Hose | Part No. 192618 |
6 | Gasket | Part No. 11994 |
7 | Plug | Part No. 947660 |
8 | Flange Screw | Part No. 947760 |
9 | Charge Air Cooler | Part No. 866090 |
10 | Fan Shroud | Part No. 3827830 |
11 | Flange Screw | Part No. 946173 |
12 | Flange Screw | Part No. 946441 |
13 | Flange Screw | Part No. 966862 |
14 | Flange Screw | Part No. 967949 |
15 | Radiator Bracket | Part No. 865786 |
16 | Flange Screw | Part No. 946817 |
17 | Flange Nut | Part No. 971096 |
18 | Rubber Cushion | Part No. 849170 |
19 | Flange Screw | Part No. 946502 |
20 | Spring Washer | Part No. 940280 |
21 | Spacer | Part No. 866856 |
22 | Spring Washer | Part No. 940280 |
23 | Hexagon Nut | Part No. 955850 |
24 | Radiator Stay | Part No. 865210 |
25 | Hexagon Nut | Part No. 955793 |
26 | Spring Washer | Part No. 941912 |
27 | Washer | Part No. 948556 |
28 | Spring Washer | Part No. 941912 |
29 | Spacer Sleeve | Part No. 252202 |
30 | Anchorage | Part No. 475888 |
31 | Radiator Hose | Part No. 865194 |
32 | Hose Clamp | Part No. 943480 |
33 | Radiator Hose | Part No. 865195 |
34 | Hose Clamp | Part No. 994560 |
35 | Rubber Hose | Part No. 944386 |
36 | Elbow Nipple | Part No. 942649 |
37 | Radiator Protector | Part No. 865208 |
38 | Emblem | Part No. 846118 |
39 | Cross Recessed Sunk Screw | Part No. 941651 |
40 | Fan Hub | Part No. 865768 |
41 | Flange Screw | Part No. 946472 |
42 | Fan | Pusher Type | Part No. 848924 |
43 | Fan Guard | Part No. 3825490 |
44 | Flange Screw | Part No. 945444 |
45 | Spacer Washer | Part No. 946048 |
46 | Cable Tie | Part No. 948211 |
47 | Rubber Hose | Part No. 943366 |
48 | Hose Clamp | Part No. 994556 |
49 | Charge Air Pipe | Part No. 865136 |
50 | Charge Air Hose | Part No. 865127 |
51 | Charge Air Pipe | Part No. 865137 |
52 | Hose Clamp | Part No. 865575 |
53 | Clamp | Part No. 952637 |
54 | Hexagon Screw | Part No. 945970 |
55 | Washer | Part No. 191271 |
56 | Fan Ring | Part No. 3827612 |
Quick Overview
FAN
SKU : 848924
PRE: VOL
BRAND: VOLVO
COMPANY: Volvo
