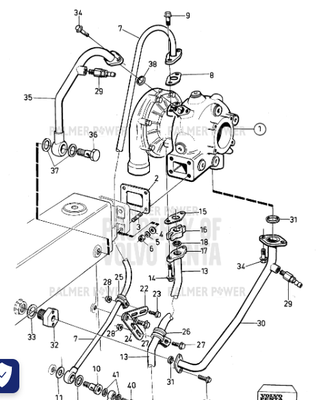

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 15
Product Description : Oil Return Pipe | Oil Drain Part No. 862712
Product Category : TAD1030GE / Inlet and Exhaust System
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | Turbocharger | Part No. 3802087 |
2 | Gasket | Part No. 8194365 |
3 | Stud | Part No. 8194545 |
4 | Flange Lock Nut | Part No. 8194568 |
4A | Washer | Part No. 940097 |
5 | Oil Pressure Pipe | Cylinder Block | Part No. 849612 |
5A | Bracket | Part No. 965559 |
5B | Clamp | Part No. 968200 |
5C | Cross Recessed Screw | Part No. 950046 |
5D | Hexagon Nut | Part No. 955825 |
6 | Plane Gasket | Part No. 420641 |
7 | Flange Screw | Part No. 946173 |
8 | Flange Screw | Part No. 945444 |
9 | Hollow Screw | Part No. 479464 |
10 | Gasket | Part No. 942703 |
11 | Gasket | Part No. 11998 |
12 | Clamp | Part No. 952626 |
13 | Cross Recessed Screw | Part No. 950045 |
14 | Spring Washer | Part No. 941906 |
15 | Oil Return Pipe | Oil Drain | Part No. 862712 |
15A | Plane Gasket | Part No. 420643 |
15B | Flange Screw | Part No. 945444 |
16 | Nipple | Part No. 941875 |
17 | Gasket | Part No. 18677 |
18 | Hose | Part No. 466328 |
19 | Hose Clamp | Part No. 994559 |
20 | Bracket | Part No. 965560 |
21 | Cross Recessed Screw | Part No. 950046 |
22 | Spring Washer | Part No. 941906 |
23 | Washer | Part No. 955893 |
24 | Hexagon Nut | Part No. 955825 |
25 | Clamp | Part No. 952632 |
28 | Connecting Pipe | Part No. 865121 |
29 | V-Clamp | Part No. 3183622 |
30 | Sealing Ring | Part No. 1542781 |
31 | Hexagon Screw | Part No. 949335 |
32 | Delivery Pipe | Fuel Inj. Pump | Part No. 866721 |
33 | Hollow Screw | Part No. 969299 |
34 | Gasket | Part No. 11994 |
35 | Gasket Kit | Turbo Connect. | Part No. 876354 |
Quick Overview
OIL RETURN PIPE
SKU : 862712
PRE: VOL
BRAND: VOLVO
COMPANY: Volvo
