YANMAR 104200-11100 Valve, Intake

Write a Review
$17.78
SKU:
104200-11100
Schematic Object Key:
3

YANMAR 104200-11100 Valve, Intake

$17.78

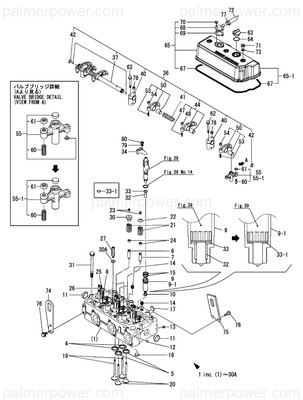

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 104200-11100 Valve, Intake

Schematic Object Key : 3

Product Description : VALVE, INTAKE 104200-11100

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HEAD ASSY, CYLINDER 724070-11700
3 VALVE, INTAKE 104200-11100
4 VALVE, EXHAUST 104200-11110
5 PLUG, R04 23873-040000
6 BOLT 104200-11350
7 NUT, M10 26736-100002
8 GUIDE, VALVE 124060-11160
9 GUIDE, VALVE 124060-11170
10 SPRING, VALVE 124060-11120
11 RETAINER, SPRING 104200-11180
12 COTTER 101158-11190
12-1 COTTER, 7 27310-070001
13 SEAL, VALVE STEM 124160-11340
14 PLUG, U7/8 124450-11320
15 SCREW, M8X10 26587-080102
16 GASKET, 8X1.0 23414-080000
17 STUD, M8X 70 26216-080702
18 NUT, M8 26716-080002
19 STUD, M8X100 26213-081002
20 STUD M 8X105 26213-081052
21 NUT, M8 26713-080002
22 PLUG, R02 23873-020000
23 PLUG, 16 23883-160002
24 GASKET, 16X1.0 23414-160000
25 JOINT, PIPE 121370-11750
26 COVER, CYLINDER HEAD 124070-11650
27 GASKET 124060-77170
28 COVER, CYLINDER HEAD 124070-11670
29 GASKET 124450-11681
30 BOLT, M8X 20 PLATED 26116-080202
31 BOLT, M8X 30 PLATED 26116-080302
32 BOLT, M8X 40 PLATED 26116-080402
33 WASHER, SPRING 8 22217-080000
34 PIN 124060-11280
35 PLUG 124220-09320
36 GASKET, 25X1.0 23414-250000
37 ZINC, SCREW20X30 27210-200300
38 GASKET 123210-09310
39 LABEL 124224-09340
40 CHAMBER 124070-11420
40-1 CHAMBER, FRONT 124070-11400
43 CHAMBER 124070-11410
44 GASKET, CHAMBER 101204-11450
44-1 GASKET, CHAMBER 101204-11452
45 INSULATOR 103854-11490
46 RETAINER 101147-11900
47 SUPPORT, ROCKER ARM 124060-11260
48 WASHER 114060-11290
49 BOLT, M6X 8 PLATED 26116-060082
50 CAP, VALVE 104211-11370
51 ARM ASSY, ROCKER 724060-11650
54 SCREW, VALVE ADJUST 101158-11230
55 NUT, LOCK M8 26756-080002
56 BONNET ASSY, HEAD 724070-11520
58 SHAFT ASSY 724070-03600
59 SHAFT, DECOMPRESSION 104200-03600
60 PIN, TAPER 3X16 22322-030160
61 LEVER, DECOMPRESSION 124070-03750
62 CONNECTOR 124060-03760
63 JOINT 124070-03770
64 PIN, PARALLEL M3X18 22312-030180
65 PARALLEL PIN 4X10 22312-040100
66 SPRING,DECOMPRESSION 104200-03641
67 PIN, COTTER 2.0X20 22417-200200
68 PIN, COTTER 2.0X20 22417-200200
69 O-RING, 1AP7.0 24311-000070
70 SCREW, M4X 8 26557-040082
71 COVER 124160-01750
72 O-RING, 1AG35.0 24321-000350
73 GASKET, BONNET 124060-11310
73-1 GASKET, BONNET 124060-11311
74 BRACKET 124070-03720
75 BOLT 8X14 26116-080142
76 WASHER, SPRING 8 22217-080000
77 KNOB 124160-11360
78 O-RING, 1AP12.0 24311-000120
79 LIFTER 124070-07230
80 NUT, CYLINDER HEAD 104300-01220
81 SEE 46150-004531 46150-004530
81-1 SENDER 46150-004531
82 CABLE 104214-03700

Description

YANMAR 2QM15 Inlet Valve

Yanmar part number: 104200-11100
Genuine Yanmar Parts & Accessories
This Inlet valve fits:
2QM15 2TR 13Y 2TR 13A and some TS60 Yanmar engines
Please inquire if unsure.
