YANMAR 104211-42050 Cam, Impeller | PalmerPower
close
close
click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Boat Repair Service

    Diagnostics, Repairs, and Maintenance

  • Fast Delivery

YANMAR 104211-42050 Cam, Impeller

Write a Review
$47.74
SKU:
104211-42050
Schematic Object Key:
3

YANMAR 104211-42050 Cam, Impeller

$47.74

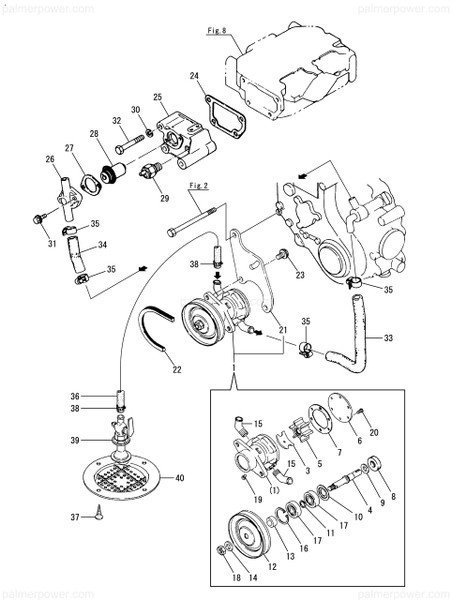

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 104211-42050 Cam, Impeller

Schematic Object Key : 3

Product Description : CAM 104211-42050

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, WATER 128270-42000
3 CAM 104211-42050
4 SHAFT, IMPELLER 124070-42060
5 IMPELLER 104211-42070
6 COVER 104211-42080
7 GASKET 104211-42090
8 SEAL, TC10X25X7 104211-42100
9 PLATE 104211-42110
10 COVER, BEARING 104211-42120
11 PIECE, DISTANCE 104211-42130
12 V-PULLEY 124070-42400
13 COLLAR 124070-42410
14 WASHER 124070-42420
15 ELBOW, 1/4 128270-49300
16 RING, 30 22252-000300
17 BEARING, BALL 6200ZZ 24107-062004
18 NUT, M8 26347-080002
19 SCREW, M4X 6 26554-040062
20 SCREW, M4X 8 26554-040082
21 BRACKET, PUMP 128270-42150
22 V-BELT, M/19 104511-78780
23 BOLT, M8X 12 PLATED 26106-080122
24 GASKET 121450-44410
25 BRACKET, THERMOSTAT 128276-49100
26 COVER, THERMOSTAT 128170-49150
27 GASKET 104211-49160
28 THERMOSTAT 105582-49200
29 SWITCH, 65 128275-91340
30 WASHER, SPRING 8 22217-080000
31 BOLT, M6X 18 PLATED 26106-060182
32 BOLT, M8X 60 PLATED 26116-080602
33 PIPE, WATER 128270-49010
34 PIPE, WATER 128270-49050
35 CLAMP, 22 23000-022000
36 PIPE, 13/20X2M 104211-49080
37 SCREW, 8.0X38 22724-800380
38 CLAMP, 22 23000-022000
39 COCK ASSY, KINGSTON 43662-010030
40 COVER, STRAINER 43666-020951

Description

GENUINE YANMAR Sea Water Pump Cam

Yanmar part number: 104211-42050

Genuine Yanmar Parts & Accessories

Water Pump Cam to fit Yanmar Diesel Engines:

GM series engines:

2GM20

3GM30

2QM15

Please contact us with your exact model and serial number if unsure.

Please check the part number very carefully as a visual comparison may not be enough.
