YANMAR 105300-66520 Screw, Speed Adjust

Write a Review
$1.83
SKU:
105300-66520
Schematic Object Key:
43

YANMAR 105300-66520 Screw, Speed Adjust

$1.83

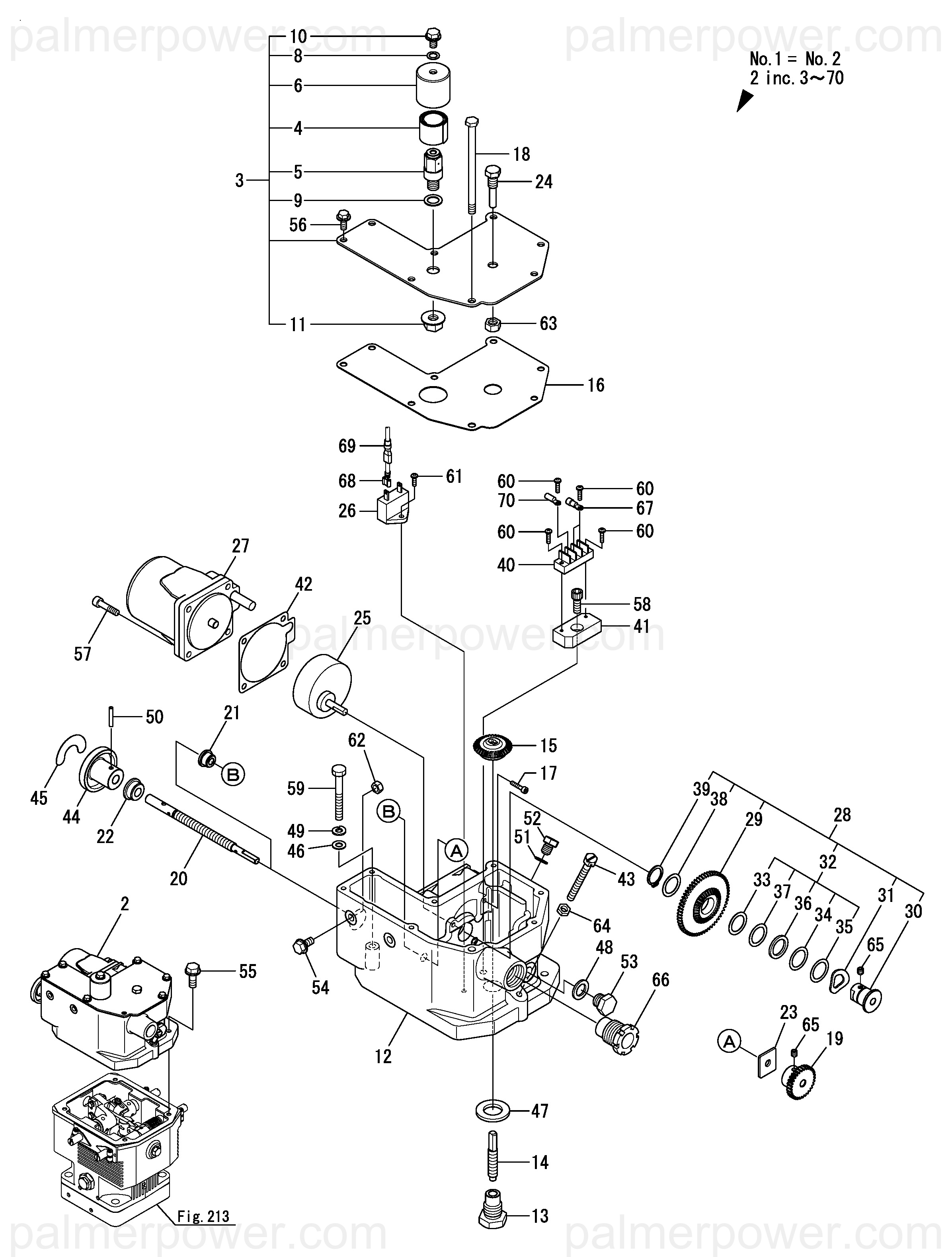

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 105300-66520 Screw, Speed Adjust

Schematic Object Key : 43

Product Description : SCREW, SPEED ADJUST 105300-66520

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 ASSY,GOV MOTOR (758512-64011)
2 MOTOR ASSY, GOVERNOR 758512-64011
3 PLATE ASSY, TOP 158512-64200
4 BAFFLE, BREATHER 158512-64170
5 PLUG, AIR VENT 158512-64180
6 COVER 158512-64190
8 GASKET, 6X1.0 23414-060000
9 GASKET, 10X1.0 23414-100000
10 BOLT, M6X 10 PLATED 26106-060102
11 NUT, M10 26376-100002
12 BRACKET, MOTOR 158512-64251
13 SCREW, GUIDE 158512-64290
14 SCREW, SPINDLE 158512-64300
15 GEAR, BEVEL Z=33 158510-64310
16 PACKING, MOUNT PLATE 158512-64361
17 BOLT, M3X15 158512-64370
18 BOLT, M6X103 158512-64380
19 GEAR, MANUAL SHAFT 158510-64400
20 SHAFT, MANUAL 158510-64410
21 BUSH, A 158510-64420
22 BUSH, B 158510-64430
23 WASHER 158510-64440
24 STOPPER, SPINDLE 158510-64470
25 BOX, GEAR 1/900 158510-64500
26 CONDENSER 46150-053630
27 MOTOR 158512-64690
28 COUPLING, FRICTION 158510-64600
29 GEAR, GOVERNOR MOTOR 158510-64330
30 COUPLING, FRICTION 158510-64340
31 WASHER, WAVE 158510-64350
32 SHIM SET 158510-64360
33 SHIM, T=0.50 158510-64370
34 SHIM, T=0.30 158510-64380
35 SHIM, PLUNGER T=0.2 158510-64390
36 SHIM, T=2.00 158510-64550
37 SHIM, T=0.40 158510-64560
38 SHIM, T=0.50 158510-64370
39 RING, 16 22242-000160
40 TERMINAL BLOCK 158510-64640
41 PLATE,TERMINAL BLOCK 158510-64720
42 PACKING, MOTOR 158512-64740
43 SCREW, SPEED ADJUST 105300-66520
44 KNOB, CONTROL 158510-67400
45 LABEL, CONTROL KNOB 158510-67450
46 WASHER, 6 22117-060000
47 WASHER, 16 22137-160000
48 WASHER, SEAL 12 22190-120002
49 WASHER 6 22212-060000
50 PIN, SPRING 3.0X20 22351-030020
51 GASKET, 8X1.0 23414-080012
52 PLUG 8 23887-080002
53 PLUG, 12 23887-120002
54 BOLT, M6X 16 PLATED 26106-060162
55 BOLT, M6X 25 PLATED 26106-060252
56 BOLT, M5X 12 PLATED 26107-050122
57 BOLT, M5X 22 26450-050222
58 BOLT, M6X 16 26450-060162
59 BOLT M 6X 50 26450-060502
60 SCREW, M3X12 26557-030122
61 SCREW, M4X10 26557-040102
62 NUT, M6 26716-060002
63 NUT, M8 26716-080002
64 NUT, LOCK M6 26756-060002
65 SCREW 26979-050062
66 GLAND, WIRE 15C 46150-060070
67 TERMINAL 46150-062630
68 TERMINAL 46150-062640
69 SLEEVE, CONNECTOR 46150-062650
70 TERMINAL 46150-062660
