YANMAR 119000-61170 Pin, Link

Write a Review
$4.84
SKU:
119000-61170
Schematic Object Key:
7

YANMAR 119000-61170 Pin, Link

$4.84

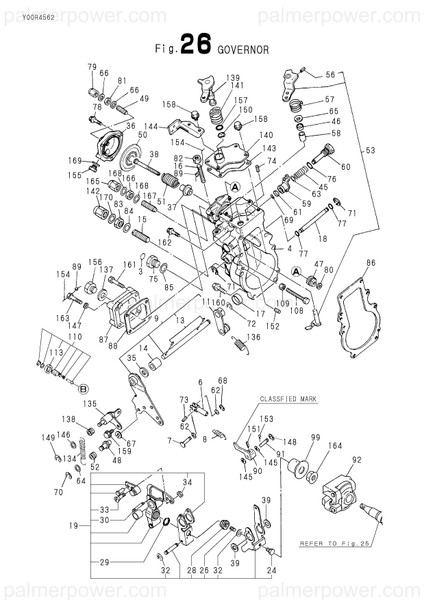

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 119000-61170 Pin, Link

Schematic Object Key : 7

Product Description : PIN, LINK 119000-61170

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
3 LABEL 124610-51970
4 CASE, GOVERNOR 119573-61010
6 LINK 119000-61120
7 PIN, LINK 119000-61170
7-1 PIN, LINK 119595-61170
8 SPRING 119187-61190
9 LEVER ASSY, CONTROL 119173-61400
11 LEVER, GOVERNOR 120323-61420
13 PIN, TAPER 3X22 22322-030220
14 BUSH 120323-61430
15 BOLT, CONTROL 127695-61450
16 BOLT, LIMITER 121850-61470
17 PLUG, 20 129795-61470
18 SHAFT 119000-61490
19 LEVER ASSY, GOVERNOR 119174-61500
24 SHIFTER 127495-61540
26 SPRING, FUEL CONTROL 120130-61600
28 RETAINER, SPRING 119187-61911
29 CIRCLIP 119187-61920
30 PIN 119187-61930
32 RING, E- 4 22272-000040
33 SCREW, M6X16 26577-060162
34 NUT, LOCK M6 26757-060002
34-1 NUT, M6 26716-060002
35 SEAL, SC102004 120320-61540
36 CASE 129595-61600
37 BUSH 129595-61610
38 ROD, SLIDER 129595-61620
39 SHIM SET 119000-61630
45 SPRING 119593-61650
46 SEAL, VC081404 148616-61650
47 RING 127495-61660
48 BOLT 121850-61670
49 BOLT, ADJUSTER 129595-61670
50 DIAPHRAGM 129595-61680
51 SPRING, DIAPHRAGM 119593-61760
52 PIECE 144626-61781
53 LEVER ASSY, STOP 119593-61800
56 PIN, SPRING 3.0X16 22351-030016
57 SPRING, RETURN 119593-61830
58 BUSH 127695-61840
59 LEVER 119593-61850
60 SHAFT 119593-61860
61 SPACER 119593-61890
62 WASHER, 5 22117-050000
63 WASHER, 8 22117-080000
64 WASHER, 8 22117-080000
65 WASHER, 8 22137-080000
66 WASHER, SEAL 8 22190-080000
67 WASHER, SPRING 8 22217-080000
68 RING, E- 4 22272-000040
69 RING, E- 6 22272-000060
70 RING, E- 6 22272-000060
71 RING, E- 8 22272-000080
72 RING, E- 8 22272-000080
73 PIN, SPRING 3.0X16 22351-030016
74 PIN, B6X36 22492-060362
75 PLUG, 16 23887-160002
76 O-RING, 1AP12.0 24311-000120
77 O-RING, 1AS8.0 24341-000080
78 BOLT, M6X 18 PLATED 26106-060182
79 NUT, CAP M8 26667-080002
80 NUT, LOCK M6 26756-060002
81 NUT, LOCK M8 26756-080002
82 NUT, LOCK M8 26756-080002
83 NUT, LOCK M12 26777-120002
84 WASHER, SEAL 12 22190-120002
85 WASHER, SEAL 16 22190-160002
86 GASKET 119000-61051
86-1 GASKET 119000-61052
87 COVER, GOVERNOR CASE 119187-61071
88 GASKET 127695-61071
89 LEAD 135210-61090
90A LINK 119593-61100
90B LINK 119593-61110
90C LINK 119593-61120
90D LINK, 10.5 119593-61130
90E LINK, 11.5 119593-61140
90F LINK, 12.5 119593-61150
91 PIN, LINK 119000-61180
92 WEIGHT ASSY,GOVERNOR 119173-61200
99 SLEEVE ASSY 119187-61300
108 BOLT, IDLE 171353-61460
109 NUT, M6 119000-61470
110 ANGLEICH ASSY 119573-61551
113 NUT, LOCK 124616-61580
134 SPRING 119173-61650
134-1 SPRING 119173-61651
135 SUPPORT, SPRING 119173-61660
136 SPRING, GOVERNOR 119588-61700
136-1 SPRING, GOVERNOR 119594-61700
137 WASHER, SEAL 12 22190-120002
138 PIECE 144626-61781
139 LEVER 119593-61900
140 COVER 119593-61910
141 SPRING, RETURN 119593-61920
142 NUT, CAP 129100-61930
143 GASKET 127695-61961
144 SUPPORT, WIRE 119593-61990
145 WASHER, 5 22117-050000
146 WASHER, 8 22117-080000
147 WASHER, SPRING 6 22217-060000
148 RING, E- 4 22272-000040
149 RING, E- 6 22272-000060
150 RING, E-10 22272-000100
151 PIN, SPRING 3.0X25 22351-030025
152 PIN, SPRING 5.0X20 22351-050020
153 PIN, SNAP 5 22372-050000
154 WIRE, 0.6 22453-060000
155 PLUG, 10 23887-100002
156 PLUG, 12 23887-120002
157 O-RING, 1AP11.0 24311-000110
158 BOLT, M6X 12 PLATED 26106-060122
159 BOLT, M6X 12 PLATED 26106-060122
160 BOLT, M6X 22 PLATED 26106-060222
161 BOLT, M6X 30 PLATED 26106-060302
162 BOLT, M6X 40 PLATED 26106-060402
163 BOLT, M6X 30 PLATED 26116-060302
163-1 BOLT, M6X 30 PLATED 26116-060306
164 NUT, M12 26376-120002
165 NUT, CAP M8 26667-080002
166 NUT, LOCK M8 26756-080002
167 SCREW, M8X40 26911-080402
168 WASHER, SEAL 6 22190-080002
169 WASHER, SEAL 10 22190-100002
170 WASHER, SEAL 12 22190-120002
