YANMAR 119174-44110 Core Assy, Cooler

Write a Review
$2,783.35
SKU:
119174-44110
Schematic Object Key:
5

YANMAR 119174-44110 Core Assy, Cooler

$2,783.35

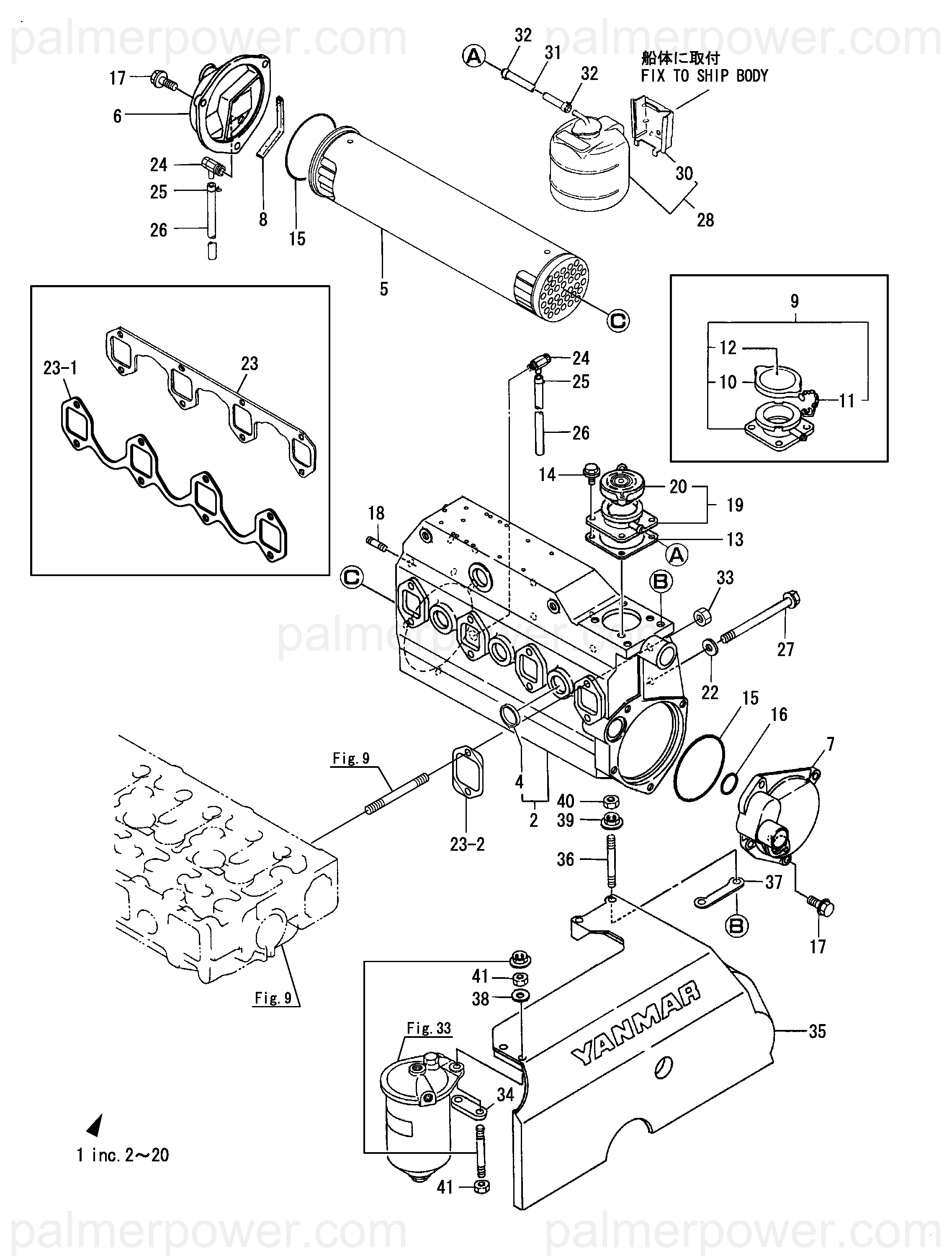

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 119174-44110 Core Assy, Cooler

Schematic Object Key : 5

Product Description : CORE ASSY, COOLER

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 CORE ASSY, COOLER 719174-44500
1-1 CORE ASSY, COOLER 719174-44501
2 COOLER ASSY, WATER 119174-44000
2-1 COOLER ASSY, WATER 119174-44001
2-2 COOLER ASSY, WATER 119174-44002
4 PLUG, 28 27241-280000
4-1 PLUG, 28 119773-13160
5 CORE ASSY, COOLER 119174-44110
6 COVER, COOLER 119174-44440
7 COVER, COOLER 119174-44450
8 GASKET 119174-44470
9 FILLER ASSY 120445-44600
10 CAP, RADIATOR 123682-44210
11 CHAIN 123682-44220
12 LABEL, CAUTION 120445-44620
13 GASKET 120445-44640
14 BOLT, M8X 14 PLATED 26106-080142
15 O-RING, 1AP120.0 24311-001200
16 O-RING, 1AG30.0 24321-000300
17 BOLT, M8X 25 PLATED 26106-080252
18 STUD, M10X 25 26223-100252
19 FILLER ASSY 129171-44600
20 CAP, RADIATOR 129107-44590
22 WASHER, 8 22137-080000
22-1 WASHER, 8 22137-080000
23 GASKET 119174-13200
23-1 GASKET, COOLER 119174-13201
23-2 GASKET 119595-13200
24 COCK, 1/4 120130-49350
24-1 COCK ASSY, 1/4 119620-49290
25 RETAINER 124460-77680
26 PIPE, 7X 300 23061-070300
27 BOLT, M8X140 PLATED 26116-081402
27-1 BOLT, M8X140 PLATED 26116-081402
28 TANK ASSY, SUB 720445-44200
30 SUPPORT 120445-44540
31 PIPE, WATER L=1000 124790-44560
32 CLAMP 13 23010-013000
33 NUT, M8 26306-080002
34 RUBBER 119173-55700
35 COVER 119189-77460
36 STUD, M8X 45 26216-080452
36-1 BOLT 119189-77490
36-2 BOLT 119189-77490
37 PAD 119189-77470
37-1 PAD 119189-77510
37-2 PAD 119189-77510
38 WASHER, 10 22157-100000
38-1 WASHER, 10 22137-100000
38-2 WASHER, 10 22137-100000
39 NUT, M8 26366-080002
39-1 NUT, M8 26366-080002
39-2 NUT, M8 26366-080002
40 NUT, LOCK M8 26756-080002
41 NUT, LOCK M10 26796-100002
