YANMAR 119187-61650 Bolt

Write a Review
$25.69
SKU:
119187-61650

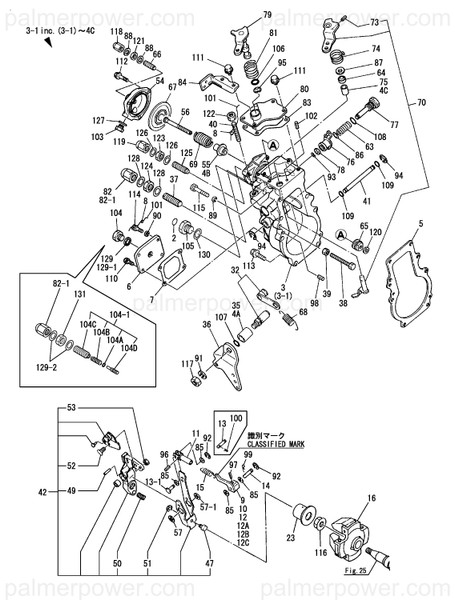

Schematic Object Key:
104C

YANMAR 119187-61650 Bolt

$25.69

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 119187-61650 Bolt

Schematic Object Key : 104C

Product Description : BOLT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 LABEL 124610-51970
3 CASE, GOVERNOR 119593-61010
3-1 CASE, GOVERNOR 119593-61030
4A BUSH 119000-61430
4B BUSH 129595-61610
4C BUSH 127695-61840
5 GASKET 119000-61051
5-1 GASKET 119000-61052
6 COVER, GOVERNOR CASE 127695-61061
7 GASKET 127695-61071
8 LEAD 135210-61090
8-1 TIN 114780-61090
9 LINK 119593-61100
10 LINK 119593-61110
11 LINK 119000-61120
12 LINK 119593-61120
12A LINK, 10.5 119593-61130
12B LINK, 11.5 119593-61140
12C LINK, 12.5 119593-61150
13 PIN, LINK 119000-61170
13-1 PIN, LINK 119595-61170
14 PIN, LINK 119000-61180
15 SPRING 119187-61190
16 WEIGHT ASSY,GOVERNOR 119187-61201
23 SLEEVE ASSY 119187-61300
32 SHAFT ASSY 119000-61400
35 BUSH 119000-61430
36 LEVER, CONTROL 119187-61440
37 BOLT, CONTROL 127695-61450
38 BOLT, IDLE 171353-61460
39 NUT, M6 119000-61470
40 BOLT, LIMITER 121850-61470
41 SHAFT 119000-61490
42 LEVER ASSY, GOVERNOR 119593-61500
47 SHIFTER 127695-61540
49 PIN 119100-61570
50 SPRING, FUEL CONTROL 119593-61600
51 RING, E- 4 22272-000040
52 SCREW, M6X16 26577-060162
53 NUT, M6 26716-060002
54 CASE 129595-61600
55 BUSH 129595-61610
56 ROD, SLIDER 129595-61620
57 SHIM SET 119000-61630
57-1 SHIM SET 119000-61630
63 SPRING 119593-61650
64 SEAL, VC081404 148616-61650
65 RING 127495-61660
66 BOLT, ADJUSTER 129595-61670
66-1 BOLT, ADJUSTING 129595-61671
67 DIAPHRAGM 129595-61680
67-1 DIAPHRAGM ASSY 129595-61681
68 SPRING, GOVERNOR 119593-61700
69 SPRING, DIAPHRAGM 119593-61760
70 LEVER ASSY, STOP 119593-61800
73 PIN, SPRING 3.0X16 22351-030016
74 SPRING, RETURN 119593-61830
75 BUSH 127695-61840
76 LEVER 119593-61850
77 SHAFT 119593-61860
78 SPACER 119593-61890
79 LEVER 119593-61900
80 COVER 119593-61910
81 SPRING, RETURN 119593-61920
82 NUT, CAP 129100-61930
82-1 NUT, CAP 129100-61930
83 GASKET 127695-61961
84 SUPPORT, WIRE 119593-61990
85 WASHER, 5 22117-050000
86 WASHER, 8 22117-080000
87 WASHER, 8 22137-080000
88 WASHER, SEAL 8 22190-080000
88-1 WASHER, SEAL 6 22190-080002
89 WASHER, SPRING 6 22217-060000
90 WASHER, SPRING 6 22217-060000
91 WASHER, SPRING 10 22217-100000
92 RING, E- 4 22272-000040
93 RING, E- 6 22272-000060
94 RING, E- 8 22272-000080
95 RING, E-10 22272-000100
95-1 RING, E-10 22276-000100
96 PIN, SPRING 3.0X16 22351-030016
97 PIN, SPRING 3.0X25 22351-030025
98 PIN, SPRING 5.0X20 22351-050020
99 PIN, SNAP 5 22372-050000
100 PIN, COTTER 1.2X12 22417-120120
101 WIRE, 1.0 22451-100000
101-1 WIRE, 0.6 22453-060000
101-2 WIRE, 1.0 120325-61100
102 PIN, B6X36 22492-060362
103 PLUG, 10 23887-100002
104 PLUG, 12 23887-120002
104-1 IDLE ASSY 127695-61550
104-2 IDLE ASSY 127695-61551
104A SPACER 119187-61670
104A-1 SPACER, PIN 158601-61510
104B SPRING 127695-61560
104C BOLT 119187-61650
104C-1 BOLT, IDLE SUB 119187-61651
104D PIN 119187-61660
104D-1 PIN, IDLE SUB 119187-61661
105 PLUG, 16 23887-160002
106 O-RING, 1AP11.0 24311-000110
107 O-RING, 1AP11.0 24311-000110
108 O-RING, 1AP12.0 24311-000120
109 O-RING, 1AS8.0 24341-000080
110 BOLT, M6X 12 PLATED 26106-060122
111 BOLT, M6X 12 PLATED 26106-060122
112 BOLT, M6X 18 PLATED 26106-060182
113 BOLT, M6X 22 PLATED 26106-060222
114 BOLT, M6X 12 PLATED 26116-060126
114-1 BOLT, M6X 12 PLATED 26106-060126
115 BOLT, M6X 35 PLATED 26116-060356
115-1 BOLT, M6X 35 PLATED 26106-060356
116 NUT, M12 26376-120002
117 NUT, M10 26606-100002
118 NUT, CAP M8 26667-080002
119 NUT, CAP M8 26667-080002
119-1 NUT 152623-51560
120 NUT, LOCK M6 26756-060002
120-1 NUT, M6 26716-060002
121 NUT, LOCK M8 26756-080002
122 NUT, LOCK M8 26756-080002
123 NUT, LOCK M8 26756-080002
124 NUT, LOCK M12 26777-120002
125 SCREW, M8X40 26911-080402
126 SEAL WASHER 8 43400-500420
126-1 WASHER, SEAL 6 22190-080002
127 SEAL WASHER 10S 43400-500430
127-1 WASHER, SEAL 10 22190-100002
128 SEAL WASHER 12S 43400-500450
128-1 WASHER, SEAL 12 22190-120002
129 SEAL WASHER 12S 43400-500450
129-1 WASHER, SEAL 12 22190-120002
129-2 WASHER, SEAL 12 22190-120002
130 SEAL WASHER 16 43400-500500
130-1 WASHER, SEAL 16 22190-160002
131 NUT, LOCK M12 26777-120002
