YANMAR 119195-61500 Lever Assy, Governor

Write a Review
$459.33
SKU:
119195-61500
Schematic Object Key:
22

YANMAR 119195-61500 Lever Assy, Governor

$459.33

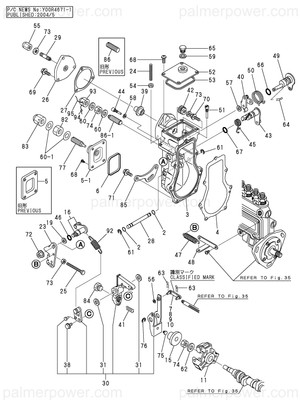

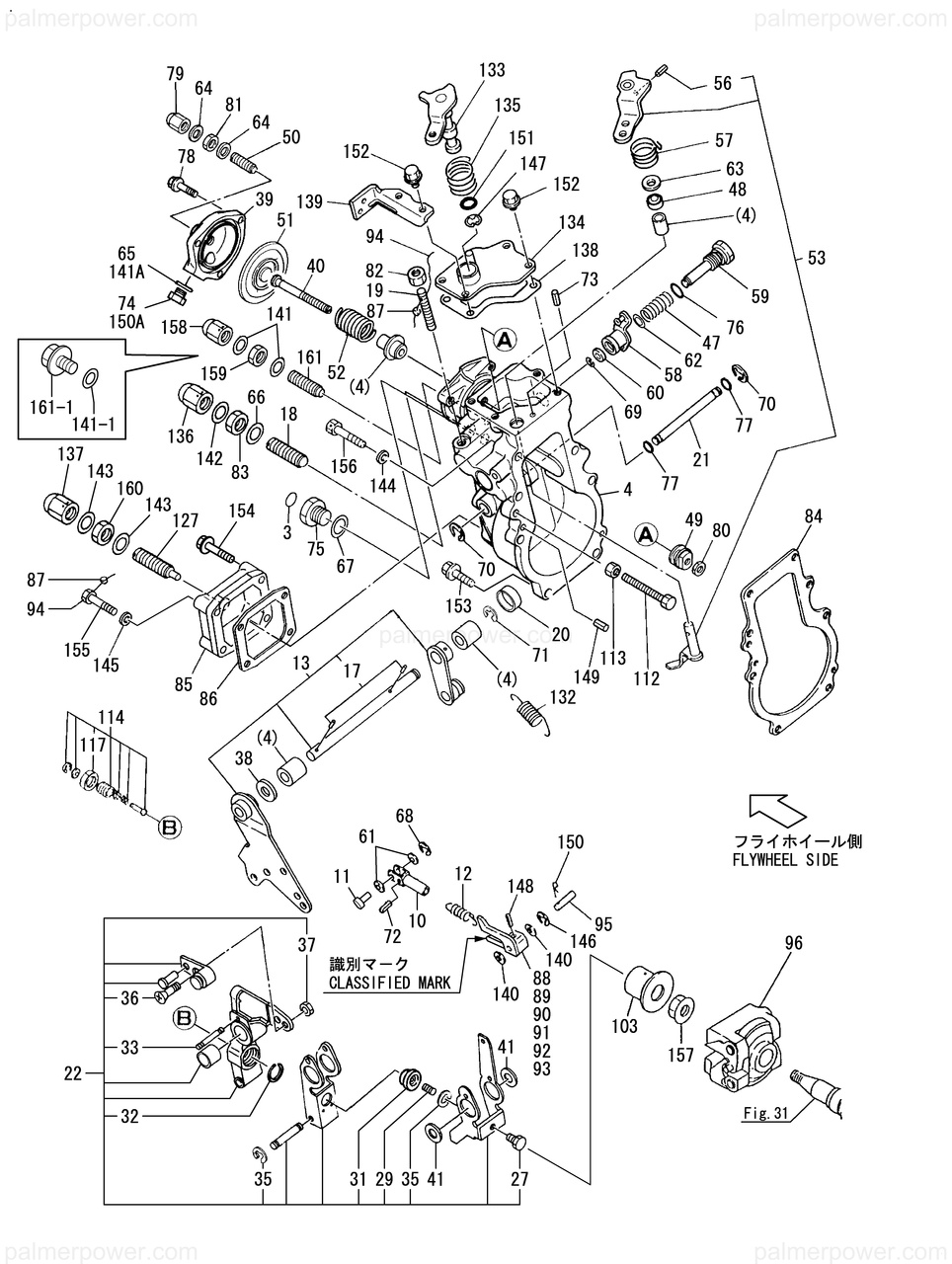

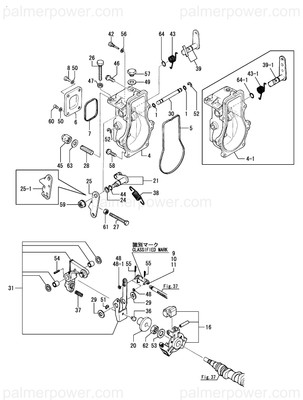

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 119195-61500 Lever Assy, Governor

Schematic Object Key : 22

Product Description : LEVER ASSY, GOVERNOR

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
3 LABEL 124610-51970
4 CASE, GOVERNOR 119573-61010
4-1 CASE, GOVERNOR 119573-61030
10 LINK 119000-61120
11 PIN, LINK 119595-61170
12 SPRING 119187-61190
13 LEVER ASSY, CONTROL 119173-61400
17 PIN, TAPER 3X22 22322-030220
18 BOLT, CONTROL 127695-61450
19 BOLT, LIMITER 121850-61470
20 PLUG, 20 129795-61470
21 SHAFT 119000-61490
22 LEVER ASSY, GOVERNOR 119195-61500
27 SHIFTER 127495-61540
29 SPRING, FUEL CONTROL 119594-61601
31 RETAINER, SPRING 119187-61911
32 CIRCLIP 119187-61920
33 PIN 119187-61930
35 RING, E- 4 22272-000040
36 SCREW, M6X16 26577-060162
37 NUT, LOCK M6 26757-060002
37-1 NUT, M6 26716-060002
38 SEAL, SC102004 120320-61540
39 CASE 129595-61600
40 ROD, SLIDER 129595-61620
41 SHIM SET 119000-61630
41-1 SHIM SET 119000-61630
47 SPRING 119593-61650
48 SEAL, VC081404 148616-61650
49 RING 127495-61660
50 BOLT, ADJUSTER 129595-61670
50-1 BOLT, ADJUSTING 129595-61671
51 DIAPHRAGM 129595-61680
51-1 DIAPHRAGM ASSY 129595-61681
52 SPRING, DIAPHRAGM 119593-61760
53 LEVER ASSY, STOP 119593-61800
56 PIN, SPRING 3.0X16 22351-030016
57 SPRING, RETURN 119593-61830
58 LEVER 119594-61850
59 SHAFT 119593-61860
60 SPACER 119593-61890
61 WASHER, 5 22117-050000
62 WASHER, 8 22117-080000
63 WASHER, 8 22137-080000
64 WASHER, SEAL 8 22190-080000
64-1 WASHER, SEAL 6 22190-080002
65 WASHER, SEAL 10 22190-100002
66 WASHER, SEAL 12 22190-120002
67 WASHER, SEAL 16 22190-160002
68 RING, E- 4 22272-000040
69 RING, E- 6 22272-000060
70 RING, E- 8 22272-000080
71 RING, E- 8 22272-000080
72 PIN, SPRING 3.0X16 22351-030016
73 PIN, B6X36 22492-060362
74 PLUG, 10 23887-100002
75 PLUG, 16 23887-160002
76 O-RING, 1AP12.0 24311-000120
77 O-RING, 1AS8.0 24341-000080
78 BOLT, M6X 18 PLATED 26106-060182
79 NUT, CAP M8 26667-080002
80 NUT, LOCK M6 26756-060002
80-1 NUT, M6 26716-060002
81 NUT, LOCK M8 26756-080002
82 NUT, LOCK M8 26756-080002
83 NUT, LOCK M12 26777-120002
84 GASKET 119000-61051
84-1 GASKET 119000-61052
85 COVER, GOVERNOR CASE 119187-61071
86 GASKET 127695-61071
87 LEAD 135210-61090
87-1 TIN 114780-61090
88 LINK 119593-61100
89 LINK 119593-61110
90 LINK 119593-61120
91 LINK, 10.5 119593-61130
92 LINK, 11.5 119593-61140
93 LINK, 12.5 119593-61150
94 WIRE, 0.6 22453-060000
94-1 WIRE, 1.0 120325-61100
95 PIN, LINK 119000-61180
96 WEIGHT ASSY,GOVERNOR 119187-61201
103 SLEEVE ASSY 119187-61300
112 BOLT, IDLE 171353-61460
113 NUT, M6 119000-61470
114 ANGLEICH ASSY 119594-61550
117 NUT, LOCK 124616-61580
127 IDLE ASSY 127695-61550
127-1 IDLE ASSY 127695-61551
132 SPRING, GOVERNOR 119593-61700
133 LEVER 119593-61900
134 COVER 119593-61910
135 SPRING, RETURN 119593-61920
136 NUT, CAP 129100-61930
137 NUT, CAP M12 26687-120002
137-1 NUT, CAP 129100-61930
138 GASKET 127695-61961
139 SUPPORT, WIRE 119593-61990
140 WASHER, 5 22117-050000
141 WASHER, SEAL 6 22190-080002
141-1 WASHER, SEAL 6 22190-080002
141A WASHER, SEAL 10 22190-100002
142 WASHER, SEAL 12 22190-120002
143 WASHER, SEAL 12 22190-120002
144 WASHER, SPRING 6 22217-060000
145 WASHER, SPRING 6 22217-060000
146 RING, E- 4 22272-000040
147 RING, E-10 22272-000100
147-1 RING, E-10 22276-000100
148 PIN, SPRING 3.0X25 22351-030025
149 PIN, SPRING 5.0X20 22351-050020
150 PIN, SNAP 5 22372-050000
150A PLUG, 10 23887-100002
151 O-RING, 1AP11.0 24311-000110
152 BOLT, M6X 12 PLATED 26106-060122
153 BOLT, M6X 22 PLATED 26106-060222
154 BOLT, M6X 30 PLATED 26106-060302
155 BOLT, M6X 30 PLATED 26116-060306
156 BOLT, M6X 35 PLATED 26116-060356
156-1 BOLT, M6X 35 PLATED 26106-060356
157 NUT, M12 26376-120002
158 NUT, CAP M8 26667-080002
159 NUT, LOCK M8 26756-080002
160 NUT, LOCK M12 26777-120002
161 SCREW, M8X40 26911-080402
161-1 BOLT, M8X 12 PLATED 26106-080122
