YANMAR 119573-61010 Case, Governor

Write a Review
$1,421.11
SKU:
119573-61010
Schematic Object Key:
3

YANMAR 119573-61010 Case, Governor

$1,421.11

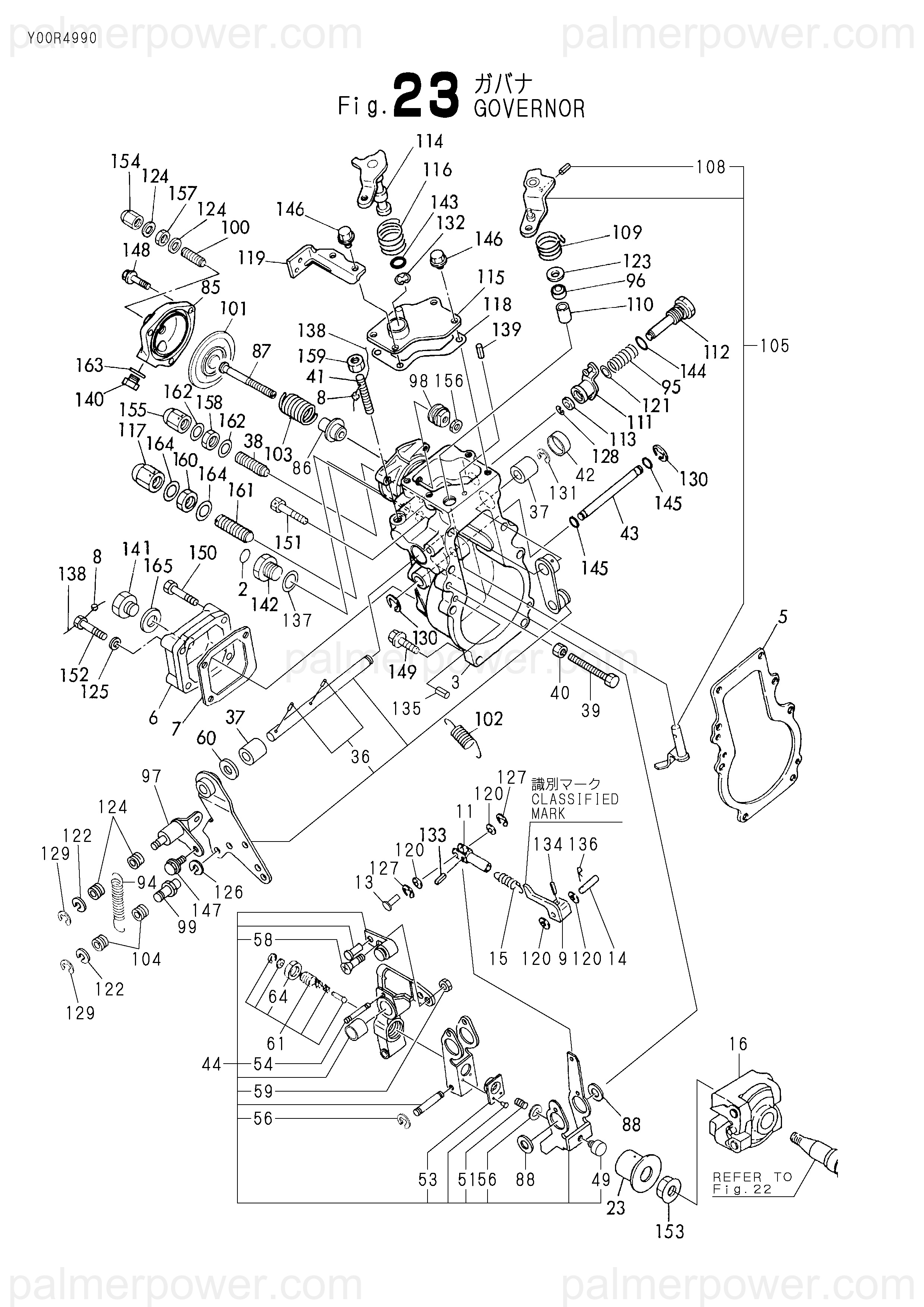

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 119573-61010 Case, Governor

Schematic Object Key : 3

Product Description : CASE, GOVERNOR

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 LABEL 124610-51970
3 CASE, GOVERNOR 119573-61010
5 GASKET 119000-61052
6 COVER, GOVERNOR CASE 119187-61071
7 GASKET 127695-61071
8 LEAD 135210-61090
9 LINK 119593-61100
10 LINK 119593-61110
11 LINK 119000-61120
12 LINK 119593-61120
12A LINK, 10.5 119593-61130
12B LINK, 11.5 119593-61140
12C LINK, 12.5 119593-61150
13 PIN, LINK 119595-61170
14 PIN, LINK 119000-61180
15 SPRING 119187-61190
16 WEIGHT ASSY,GOVERNOR 119173-61200
23 SLEEVE ASSY 119187-61300
32 LEVER ASSY, CONTROL 119173-61400
36 PIN, TAPER 3X22 22322-030220
37 BUSH 120323-61430
38 BOLT, CONTROL 127695-61450
39 BOLT, IDLE 171353-61460
40 NUT, M6 119000-61470
41 BOLT, LIMITER 121850-61470
42 PLUG, 20 129795-61470
43 SHAFT 119000-61490
44 LEVER ASSY, GOVERNOR 119174-61500
49 SHIFTER 127495-61540
51 SPRING, FUEL CONTROL 120130-61600
53 RETAINER, SPRING 119187-61911
54 PIN 119187-61930
56 RING, E- 4 22272-000040
58 SCREW, M6X16 26577-060162
59 NUT, LOCK M6 26757-060002
60 SEAL, SC102004 120320-61540
61 ANGLEICH ASSY 119573-61551
64 NUT, LOCK 124616-61580
85 CASE 129595-61600
86 BUSH 129595-61610
87 ROD, SLIDER 129595-61620
88 SHIM SET 119000-61630
94 SPRING 119173-61651
95 SPRING 119593-61650
96 SEAL, VC081404 148616-61650
97 SUPPORT, SPRING 119173-61660
98 RING 127495-61660
99 BOLT 121850-61670
100 BOLT, ADJUSTER 129595-61670
101 DIAPHRAGM 129595-61680
102 SPRING, GOVERNOR 119588-61700
103 SPRING, DIAPHRAGM 119593-61760
104 PIECE 144626-61781
105 LEVER ASSY, STOP 119593-61800
108 PIN, SPRING 3.0X16 22351-030016
109 SPRING, RETURN 119593-61830
110 BUSH 127695-61840
111 LEVER 119593-61850
112 SHAFT 119593-61860
113 SPACER 119593-61890
114 LEVER 119593-61900
115 COVER 119593-61910
116 SPRING, RETURN 119593-61920
117 NUT, CAP 129100-61930
118 GASKET 127695-61961
119 SUPPORT, WIRE 119593-61990
120 WASHER, 5 22117-050000
121 WASHER, 8 22117-080000
122 WASHER, 8 22117-080000
123 WASHER, 8 22137-080000
124 WASHER, SEAL 8 22190-080000
125 WASHER, SPRING 6 22217-060000
126 WASHER, SPRING 8 22217-080000
127 RING, E- 4 22272-000040
128 RING, E- 6 22272-000060
129 RING, E- 6 22272-000060
130 RING, E- 8 22272-000080
131 RING, E- 8 22272-000080
132 RING, E-10 22272-000100
133 PIN, SPRING 3.0X16 22351-030016
134 PIN, SPRING 3.0X25 22351-030025
135 PIN, SPRING 5.0X20 22351-050020
136 PIN, SNAP 5 22372-050000
137 WASHER, SEAL 16 22190-160002
138 WIRE, 0.6 22453-060000
139 PIN, B6X36 22492-060362
140 PLUG, 10 23887-100002
141 PLUG, 12 23887-120002
142 PLUG, 16 23887-160002
143 O-RING, 1AP11.0 24311-000110
144 O-RING, 1AP12.0 24311-000120
145 O-RING, 1AS8.0 24341-000080
146 BOLT, M6X 12 PLATED 26106-060122
147 BOLT, M6X 12 PLATED 26106-060122
148 BOLT, M6X 18 PLATED 26106-060182
149 BOLT, M6X 22 PLATED 26106-060222
150 BOLT, M6X 30 PLATED 26106-060302
151 BOLT, M6X 40 PLATED 26106-060402
152 BOLT, M6X 30 PLATED 26116-060302
153 NUT, M12 26376-120002
154 NUT, CAP M8 26667-080002
155 NUT, CAP M8 26667-080002
156 NUT, LOCK M6 26756-060002
157 NUT, LOCK M8 26756-080002
158 NUT, LOCK M8 26756-080002
159 NUT, LOCK M8 26756-080002
160 NUT, LOCK M12 26777-120002
161 SCREW, M8X40 26911-080402
162 WASHER, SEAL 6 22190-080002
163 WASHER, SEAL 10 22190-100002
164 WASHER, SEAL 12 22190-120002
165 WASHER, SEAL 12 22190-120002
