YANMAR 119574-77811 Harness, Wire Engine

Write a Review
$582.19
SKU:
119574-77811
Schematic Object Key:
1-3

YANMAR 119574-77811 Harness, Wire Engine

$582.19

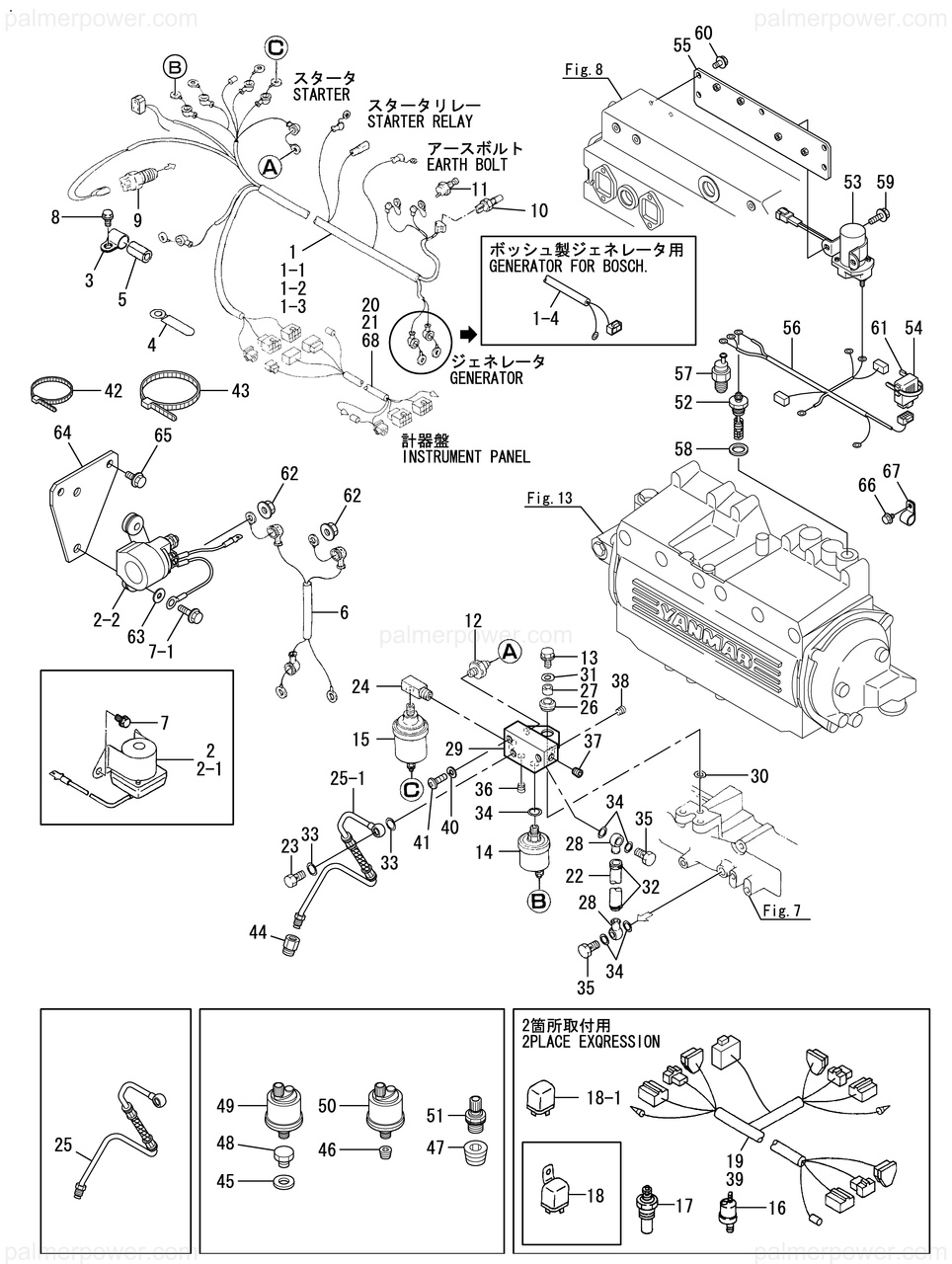

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 119574-77811 Harness, Wire Engine

Schematic Object Key : 1-3

Product Description : HARNESS, WIRE 119574-77811

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HARNESS, WIRE 119573-77813
1-1 HARNESS, WIRE 119573-77814
1-2 HARNESS, WIRE 119574-77810
1-3 HARNESS, WIRE 119574-77811
2 RELAY, MAGNETIC 129100-77910
2-1 RELAY, STARTER 129490-77910
2-2 RELAY, STARTER 119575-77510
3 RETAINER 124770-49310
4 CLAMP, CORD 105430-67110
4-1 CLAMP, CORD 105430-67110
5 PROTECTOR 123682-77710
6 HARNESS, WIRE 119171-77850
7 BOLT, M6X 12 PLATED 26106-060122
7-1 BOLT, M6X 20 PLATED 26106-060202
8 BOLT, M8X 16 PLATED 26106-080162
9 SENSOR 128170-91160
10 SWITCH, 95 127610-91350
11 SENDER UNIT 144626-91570
12 SWITCH, 0.2KG 124060-39451
12-1 SWITCH, 0.2KG 124060-39452
13 BOLT, M8X 20 PLATED 26106-080202
14 SENSOR 127687-91300
14-1 SENSOR 119773-91300
14-2 SENSOR 119773-91301
15 SENSOR 144626-91560
15-1 SENDER 119773-91500
15-2 SENSOR, PRESSURE 119773-91501
16 SENSOR 129574-91560
16-1 SENSOR, PRESSURE 129574-91561
17 SENSOR 129574-91570
18 RELAY 124617-91850
18-1 RELAY, DC12V 119773-91850
19 HARNESS, WIRE 46150-507600
20 HARNESS, WIRE 4M 129574-77710
21 HARNESS, WIRE 6M 129574-77720
22 HOSE 119574-18490
23 BOLT, PIPE JOINT M10 124160-39140
24 DAMPER 123482-39670
25 PIPE ASSY, OIL 119574-39750
25-1 PIPE ASSY, OIL 119574-39751
25-2 PIPE ASSY, OIL 119574-39752
25-3 PIPE, OIL 119595-39750
25-4 PIPE ASSY, OIL 119595-39751
26 ABSORBER 105100-55501
27 COLLAR 105100-55540
28 JOINT, PIPE 12 101304-59020
29 BRACKET 119574-91010
29-1 BRACKET 119574-91011
30 WASHER, 8 22137-080000
31 WASHER, 8 22157-080000
32 CLAMP, 13 23000-013000
33 GASKET, 10X1.0 23414-100000
34 GASKET, 12X1.0 23414-120000
35 JOINT BOLT 6 23851-060000
36 PLUG, R01 23871-010000
36-1 PLUG, PT1/8 124060-01050
36-2 PLUG, R01 23876-010000
37 PLUG, R01 23871-010000
37-1 PLUG, PT1/8 124060-01050
37-2 PLUG, R01 23876-010000
38 PLUG, R01 23871-010000
38-1 PLUG, PT1/8 124060-01050
38-2 PLUG, R01 23876-010000
39 HARNESS, WIRE 129574-77980
40 WASHER, SPRING 5 22217-050000
41 SCREW, M5X 8 26557-050082
42 BAND, 140 121750-59890
43 BAND 250 194250-51660
44 JOINT 119574-39770
45 GASKET, 12X1.0 23414-120000
46 PLUG, R02 23871-020000
47 PLUG, R03 23871-030000
48 PLUG, 12 23887-120002
49 SENDER 119773-91600
50 SENSOR 119773-91650
51 SENDER 119773-91700
52 PLUG 119575-77050
53 RELAY, HEATER 119575-77060
54 CONTROLLER 119575-77071
55 BRACKET 119575-77551
56 HARNESS, WIRE 119575-77910
57 SWITCH, 42 124616-91370
58 GASKET, 20X1.0 23414-200000
59 BOLT, M6X 12 PLATED 26106-060122
60 BOLT, M8X 14 PLATED 26106-080142
61 BAND, RF250 29622-250001
62 NUT, M6 26366-060002
63 WASHER 183350-55130
64 BRACKET, RELAY 119575-77200
65 BOLT, M6X 14 PLATED 26106-060142
