YANMAR 119575-77911 Harness, Relay

Write a Review
$211.74
SKU:
119575-77911
Schematic Object Key:
56-1

YANMAR 119575-77911 Harness, Relay

$211.74

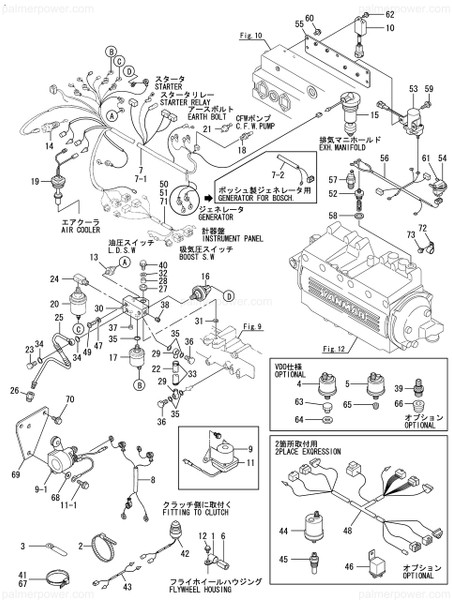

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 119575-77911 Harness, Relay

Schematic Object Key : 56-1

Product Description : HARNESS,HEATER RELAY 119575-77911

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 RETAINER 124770-49310
2 BAND 250 194250-51660
2-1 BAND 250 194250-51660
3 CLAMP, CORD 105430-67110
3-1 CLAMP, CORD 105430-67110
4 SENDER 119773-91600
5 SENSOR 119773-91650
6 PROTECTOR 123682-77710
7 HARNESS, WIRE 119575-77812
7-1 HARNESS, WIRE 119575-77813
7-2 HARNESS, ENG 119575-77814
8 HARNESS, WIRE 119171-77850
9 RELAY, STARTER 129490-77910
9-1 RELAY, STARTER 119575-77510
10 CONTROLLER 119773-91400
11 BOLT, M6X 12 PLATED 26106-060122
11-1 BOLT, M6X 20 PLATED 26106-060202
12 BOLT, M8X 16 PLATED 26106-080162
13 SWITCH, 0.2KG 124060-39452
14 SENSOR 128170-91160
15 SWITCH 127695-91220
16 SWITCH, PRESSURE 119595-91290
17 SENSOR 119773-91300
17-1 SENSOR 119773-91301
18 SWITCH, 95 127610-91350
19 SWITCH 129593-91420
20 SENDER 119773-91500
20-1 SENSOR, PRESSURE 119773-91501
21 SENDER UNIT 144626-91570
22 HOSE 119574-18490
22-1 JOINT 119593-18490
23 BOLT, PIPE JOINT M10 124160-39140
24 DAMPER 123482-39670
25 PIPE, OIL 119595-39750
25-1 PIPE ASSY, OIL 119595-39751
26 JOINT 119574-39770
27 ABSORBER 105100-55501
28 COLLAR 105100-55540
29 JOINT, PIPE 12 101304-59020
30 BRACKET 119574-91011
30-1 BRACKET 119594-91011
31 WASHER, 8 22137-080000
32 WASHER, 8 22157-080000
33 CLAMP, 13 23000-013000
33-1 CLIP, HOSE 13 119172-48130
34 GASKET, 10X1.0 23414-100000
35 GASKET, 12X1.0 23414-120000
36 JOINT BOLT 6 23851-060000
36-1 BOLT, JOINT 6 23857-060000
37 PLUG, R01 23876-010000
38 PLUG, R01 23876-010000
39 SENDER 119773-91700
40 BOLT, M8X 20 PLATED 26106-080202
41 BAND, 140 121750-59890
42 SWITCH, SAFETY 120270-77101
42-1 SWITCH, SAFETY 120270-77102
43 HARNESS, WIRE 119573-77850
44 SENSOR 129574-91560
44-1 SENSOR, PRESSURE 129574-91561
45 SENSOR 129574-91570
46 RELAY, DC12V 119773-91850
47 WASHER, SPRING 5 22217-050000
48 HARNESS, WIRE 129574-77980
49 SCREW, M5X 8 26557-050082
50 HARNESS, WIRE 4M 129574-77710
51 HARNESS, WIRE 6M 129574-77720
52 PLUG 119575-77050
53 RELAY, HEATER 119575-77060
54 CONTROLLER 119575-77070
54-1 CONTROLLER 119575-77071
55 BRACKET 119575-77551
56 HARNESS, WIRE 119575-77910
56-1 HARNESS,HEATER RELAY 119575-77911
57 SWITCH, 42 124616-91370
58 GASKET, 20X1.0 23414-200000
59 BOLT, M6X 12 PLATED 26106-060122
60 BOLT, M8X 14 PLATED 26106-080142
61 BAND, RF250 29622-250001
62 BOLT, M6X 14 PLATED 26106-060142
63 PLUG, 12 23887-120002
64 GASKET, 12X1.0 23414-120000
65 PLUG, R02 23871-020000
66 PLUG, R03 23871-030000
67 BAND, 140 121750-59890
68 WASHER 183350-55130
69 BRACKET, RELAY 119575-77200
70 BOLT, M6X 14 PLATED 26106-060142
71 HARNESS, WIRE 10M 129574-77740
72 RETAINER, PIPE 119593-39450
73 BOLT, M8X 12 PLATED 26106-080122
