YANMAR 119578-75540 Harness, Wire D

Write a Review
$143.73
SKU:
119578-75540
Schematic Object Key:
18

YANMAR 119578-75540 Harness, Wire D

$143.73

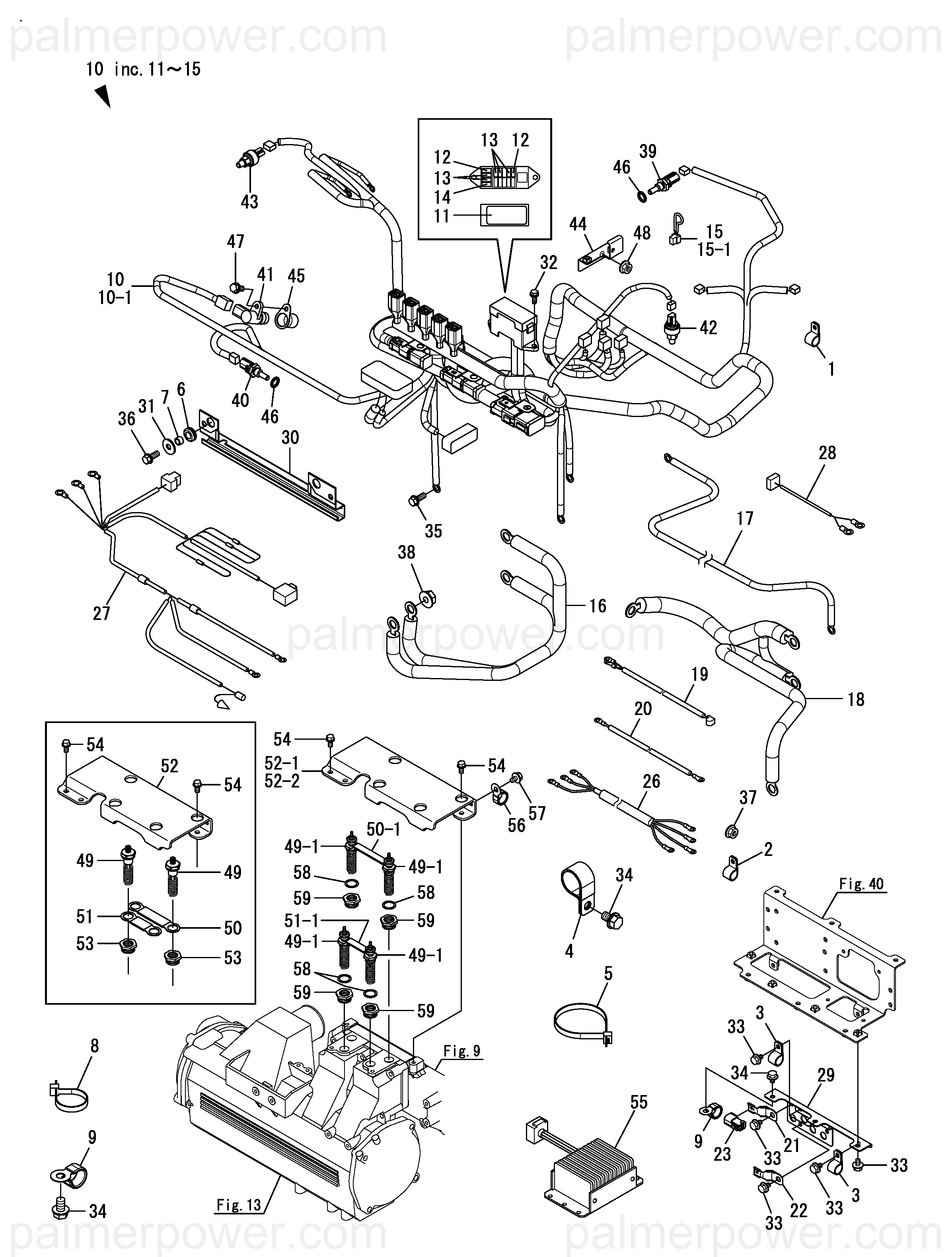

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 119578-75540 Harness, Wire D

Schematic Object Key : 18

Product Description : HARNESS, WIRE 119578-75540

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 RETAINER 119778-26660
2 RETAINER, PIPE 119578-39180
2-1 CLAMP, A27X12 23297-270081
3 RETAINER, PIPE 119593-39450
4 RETAINER, PIPE 121575-49310
5 BAND 250 194250-51660
5-1 BAND, RF250 29622-250001
6 ABSORBER 105100-55501
7 COLLAR 105100-55540
8 BAND, 140 121750-59890
9 CLAMP, CORD 105430-67110
10 HARNESS, WIRE 119578-75504
10-1 HARNESS, MAIN 119578-75505
11 LABEL, FUSE LOCATION 119578-07870
12 FUSE, 5A 198535-52110
13 FUSE, 10A 198535-52120
14 FUSE, 20A 198535-52140
15 RESISTOR 119578-75590
15-1 RESISTOR 127677-77250
16 HARNESS, WIRE 119578-75520
17 HARNESS, WIRE 119578-75531
18 HARNESS, WIRE 119578-75540
19 HARNESS, WIRE 119578-75550
20 HARNESS, WIRE 119578-75560
21 CLIP, CONNECTOR 119578-75610
22 CLIP, CONNECTOR 119578-75620
23 CONNECTOR ASSY 119578-75650
26 HARNESS, WIRE 119579-77750
26-1 HARNESS, WIRE G2 119579-77751
27 HARNESS, WIRE 119579-77760
28 HARNESS, WIRE 119579-77780
29 BRACKET 119578-77842
30 BRACKET 119578-77850
31 WASHER, 8 22157-080000
32 BOLT, M6X 16 PLATED 26106-060162
33 BOLT, M8X 12 PLATED 26106-080122
34 BOLT, M8X 12 PLATED 26106-080122
35 BOLT, M8X 12 PLATED 26106-080122
36 BOLT, M8X 20 PLATED 26106-080202
37 NUT, M8 26306-080002
38 NUT, M6 26366-060002
39 SENSOR, WATER TEMP. 119254-44910
40 SENSOR, WATER TEMP. 119254-44910
41 SENSOR 158557-61720
42 SENSOR, PRESSURE 119578-91300
43 SENSOR, PRESSURE 119578-91300
44 COVER 119578-91310
45 COVER 119578-91400
46 WASHER, SEAL 12 22190-120002
47 BOLT, M6X 16 PLATED 26106-060162
48 NUT, M10 26366-100002
49 PLUG 119575-77050
49-1 HEATER, PLUG 127698-77700
50 TERMINAL, PLUG 119579-77060
50-1 TERMINAL, PLUG 127698-77110
51 TERMINAL, PLUG 119579-77070
51-1 TERMINAL, HEATER 119579-77810
52 COVER 119579-77120
52-1 COVER 119579-77121
52-2 COVER, HEATER PLUG 119579-77122
53 SPACER, PLUG 119579-77130
54 BOLT, M8X 16 PLATED 26106-080162
55 CONVERTER, DC/DC 126684-77962
56 CLAMP, CORD 105430-67110
57 BOLT, M8X 12 PLATED 26106-080122
58 GASKET, 21X1.0 23414-210027
59 SPACER, HEATER 119579-77190
