YANMAR 119588-61600 Spring, Fuel Control

Write a Review
$17.13
SKU:
119588-61600
Schematic Object Key:
34

YANMAR 119588-61600 Spring, Fuel Control

$17.13

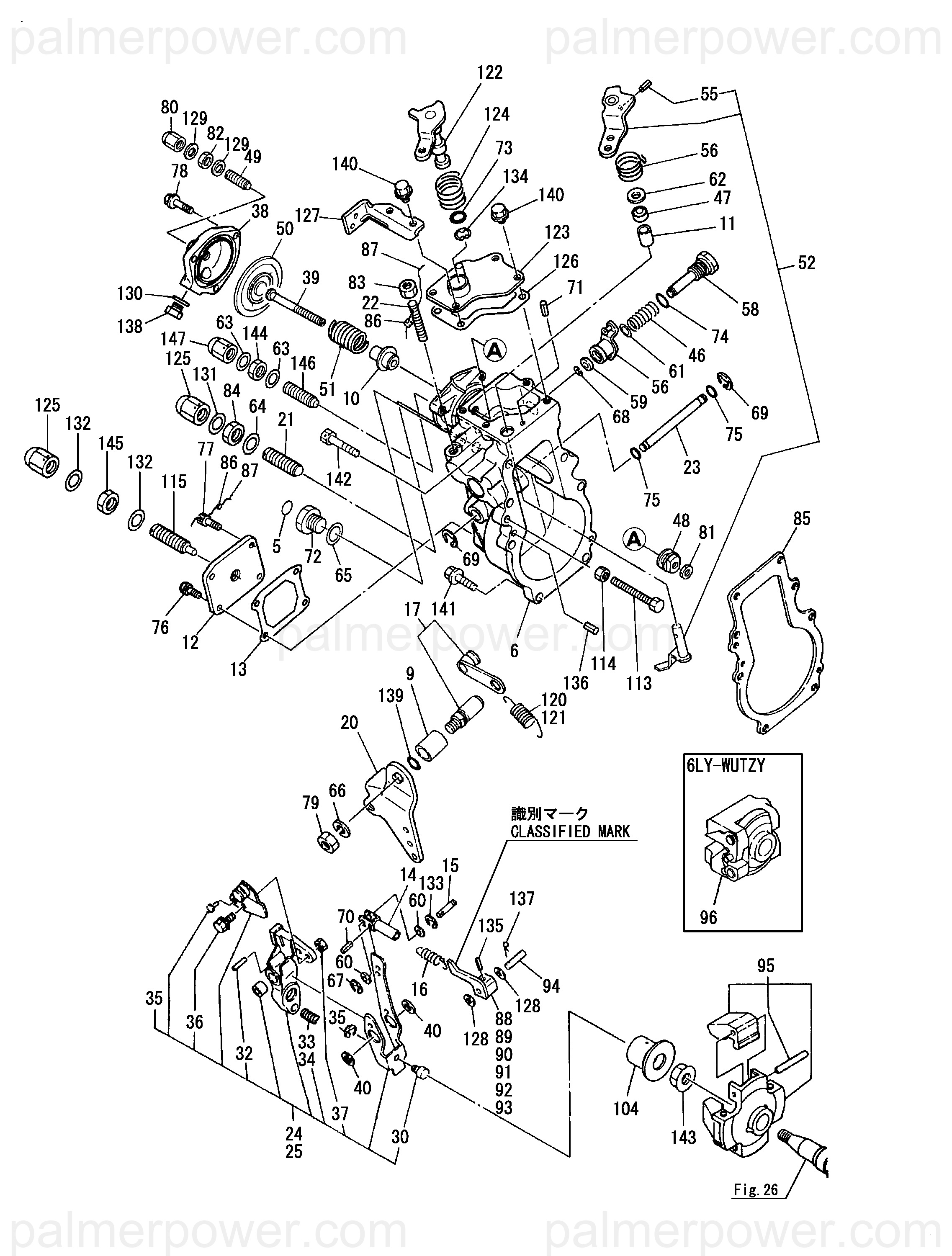

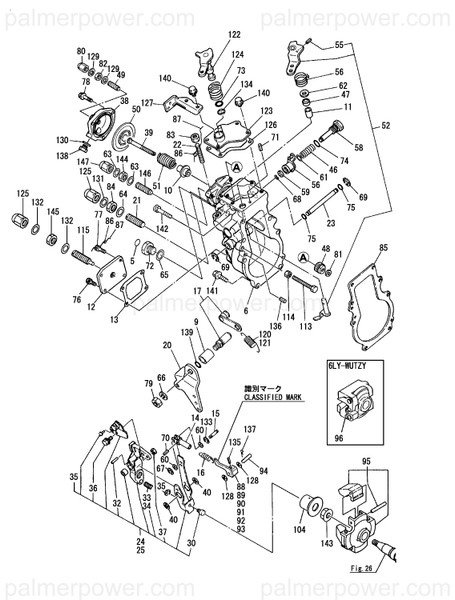

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 119588-61600 Spring, Fuel Control

Schematic Object Key : 34

Product Description : SPRING, FUEL CONTROL

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
5 LABEL 124610-51970
6 CASE, GOVERNOR 119593-61030
9 BUSH 119000-61430
10 BUSH 129595-61610
11 BUSH 127695-61840
12 COVER, GOVERNOR CASE 127695-61061
13 GASKET 127695-61071
14 LINK 119000-61120
15 PIN, LINK 119595-61170
16 SPRING 119187-61190
17 SHAFT ASSY 119000-61400
20 LEVER, CONTROL 119187-61440
21 BOLT, CONTROL 127695-61450
22 BOLT, LIMITER 121850-61470
23 SHAFT 119000-61490
25 LEVER ASSY, GOVERNOR 119588-61500
30 SHIFTER 127695-61540
32 PIN 119100-61570
34 SPRING, FUEL CONTROL 119588-61600
35 RING, E- 4 22272-000040
36 SCREW, M6X16 26577-060162
37 NUT, M6 26716-060002
38 CASE 129595-61600
39 ROD, SLIDER 129595-61620
40 SHIM SET 119000-61630
46 SPRING 119593-61650
47 SEAL, VC081404 148616-61650
48 RING 127495-61660
49 BOLT, ADJUSTING 129595-61671
50 DIAPHRAGM ASSY 129595-61681
51 SPRING, DIAPHRAGM 119593-61760
52 LEVER ASSY, STOP 119593-61800
55 PIN, SPRING 3.0X16 22351-030016
56 SPRING, RETURN 119593-61830
57 LEVER 119593-61850
58 SHAFT 119593-61860
59 SPACER 119593-61890
60 WASHER, 5 22117-050000
61 WASHER, 8 22117-080000
62 WASHER, 8 22137-080000
63 WASHER, SEAL 6 22190-080002
64 WASHER, SEAL 12 22190-120002
65 WASHER, SEAL 16 22190-160002
66 WASHER, SPRING 10 22217-100000
67 RING, E- 4 22272-000040
68 RING, E- 6 22272-000060
69 RING, E- 8 22272-000080
70 PIN, SPRING 3.0X16 22351-030016
71 PIN, B6X36 22492-060362
72 PLUG, 16 23887-160002
73 O-RING, 1AP11.0 24311-000110
74 O-RING, 1AP12.0 24311-000120
75 O-RING, 1AS8.0 24341-000080
76 BOLT, M6X 12 PLATED 26106-060122
77 BOLT, M6X 12 PLATED 26106-060126
78 BOLT, M6X 18 PLATED 26106-060182
79 NUT, M10 26606-100002
80 NUT, CAP M8 26667-080002
81 NUT, M6 26716-060002
82 NUT, LOCK M8 26756-080002
83 NUT, LOCK M8 26756-080002
84 NUT, LOCK M12 26777-120002
85 GASKET 119000-61052
86 TIN 114780-61090
87 WIRE, 1.0 120325-61100
88 LINK 119593-61100
89 LINK 119593-61110
90 LINK 119593-61120
91 LINK, 10.5 119593-61130
92 LINK, 11.5 119593-61140
93 LINK, 12.5 119593-61150
94 PIN, LINK 119000-61180
96 WEIGHT ASSY,GOVERNOR 119173-61200
104 SLEEVE ASSY 119187-61300
113 BOLT, IDLE 171353-61460
114 NUT, M6 119000-61470
115 IDLE ASSY 127695-61551
121 SPRING, GOVERNOR 119588-61700
122 LEVER 119593-61900
123 COVER 119593-61910
124 SPRING, RETURN 119593-61920
125 NUT, CAP 129100-61930
126 GASKET 127695-61961
127 SUPPORT, WIRE 119593-61990
128 WASHER, 5 22117-050000
129 WASHER, SEAL 6 22190-080002
130 WASHER, SEAL 10 22190-100002
131 WASHER, SEAL 12 22190-120002
132 WASHER, SEAL 12 22190-120002
133 RING, E- 4 22272-000040
134 RING, E-10 22276-000100
135 PIN, SPRING 3.0X25 22351-030025
136 PIN, SPRING 5.0X20 22351-050020
137 PIN, SNAP 5 22372-050000
138 PLUG, 10 23887-100002
139 O-RING, 1AP11.0 24311-000110
140 BOLT, M6X 12 PLATED 26106-060122
141 BOLT, M6X 22 PLATED 26106-060222
142 BOLT, M6X 35 PLATED 26106-060356
143 NUT, M12 26376-120002
144 NUT, LOCK M8 26756-080002
145 NUT, LOCK M12 26777-120002
146 SCREW, M8X40 26911-080402
147 NUT 152623-51560
