YANMAR 119593-01200 Bolt, Cylinder Head

Write a Review
$20.51
SKU:
119593-01200

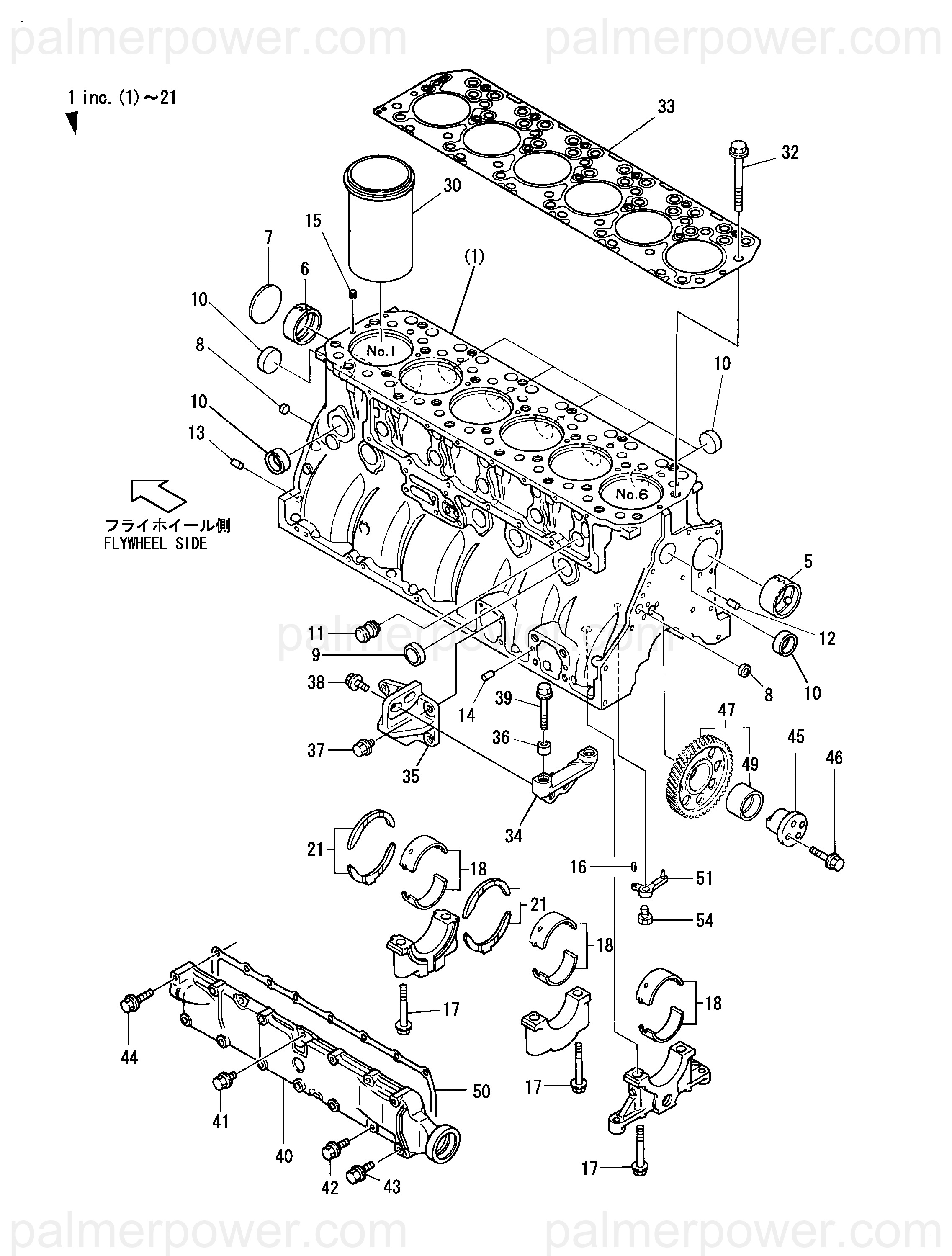

Schematic Object Key:
32

YANMAR 119593-01200 Bolt, Cylinder Head

$20.51

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 119593-01200 Bolt, Cylinder Head

Schematic Object Key : 32

Product Description : BOLT, HEAD 119593-01200

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BLOCK ASSY, CYLINDER 719593-01562
5 BUSH, CAMSHAFT 119000-02410
6 BUSH, CAMSHAFT 119593-02420
7 PLUG, 65 27231-650000
8 PLUG, 16 27241-160000
9 PLUG, 35 119285-11990
10 PLUG, 40 119885-01990
11 PLUG, RUBBER 119000-01840
12 PIN, M8X16 129100-01580
13 PIN, M8X16 129100-01580
14 PIN, PARALLEL M8X16 22312-080160
15 PIN, SPRING 8.0X16 22351-080016
16 PIN, SPRING 4.0X10 22351-040010
17 BOLT, METAL CAP 119593-02070
18 BEARING, MAIN 719593-02800
21 BEARING, THRUST 719593-02590
30 LINER, CYLINDER 119142-01150
32 BOLT, HEAD 119593-01200
33 GASKET, HEAD T=1.3 119593-01342
34 RETAINER, PUMP 119593-01801
35 RETAINER, PUMP 119593-01811
36 PIN 124411-28400
37 BOLT, M8X 20 PLATED 26106-080202
38 BOLT, M10X 25 PLATED 26106-100252
39 BOLT, M10X 80 PLATED 26106-100802
40 COVER 119593-01751
41 BOLT, M8X 18 PLATED 26106-080182
42 BOLT, M8X 30 PLATED 26106-080302
43 BOLT, M8X 45 PLATED 26106-080452
44 BOLT, M8X 50 PLATED 26106-080502
45 SHAFT, IDLE GEAR 119593-25051
46 BOLT, M8X50 119593-25060
47 GEAR ASSY, IDLE Z=51 119000-25100
49 BUSH, IDLE GEAR 119000-25060
50 GASKET 119593-01760
51 NOZZLE ASSY, COOLING 119593-39560
54 BOLT, JOINT 3 23857-030000

YANMAR 119593-01200 Bolt, Cylinder Head

PRODUCT NOTES

The YM-119593-01200 cylinder head bolt can be used on the following Yanmar engine models:

  • 6LY2A-STP
  • 6LY2-STE
  • 6LY-STE
  • 6LY-UTE

This is a genuine Yanmar part shipped with a 6-month warranty.

Call us at (800) 364-4637 if you have any questions about this item.
As always, your satisfaction is guaranteed!
