YANMAR 119593-59131 Pipe Assy, Fuel L630

Write a Review
$147.70
SKU:
119593-59131
Schematic Object Key:
1-1

YANMAR 119593-59131 Pipe Assy, Fuel L630

$147.70

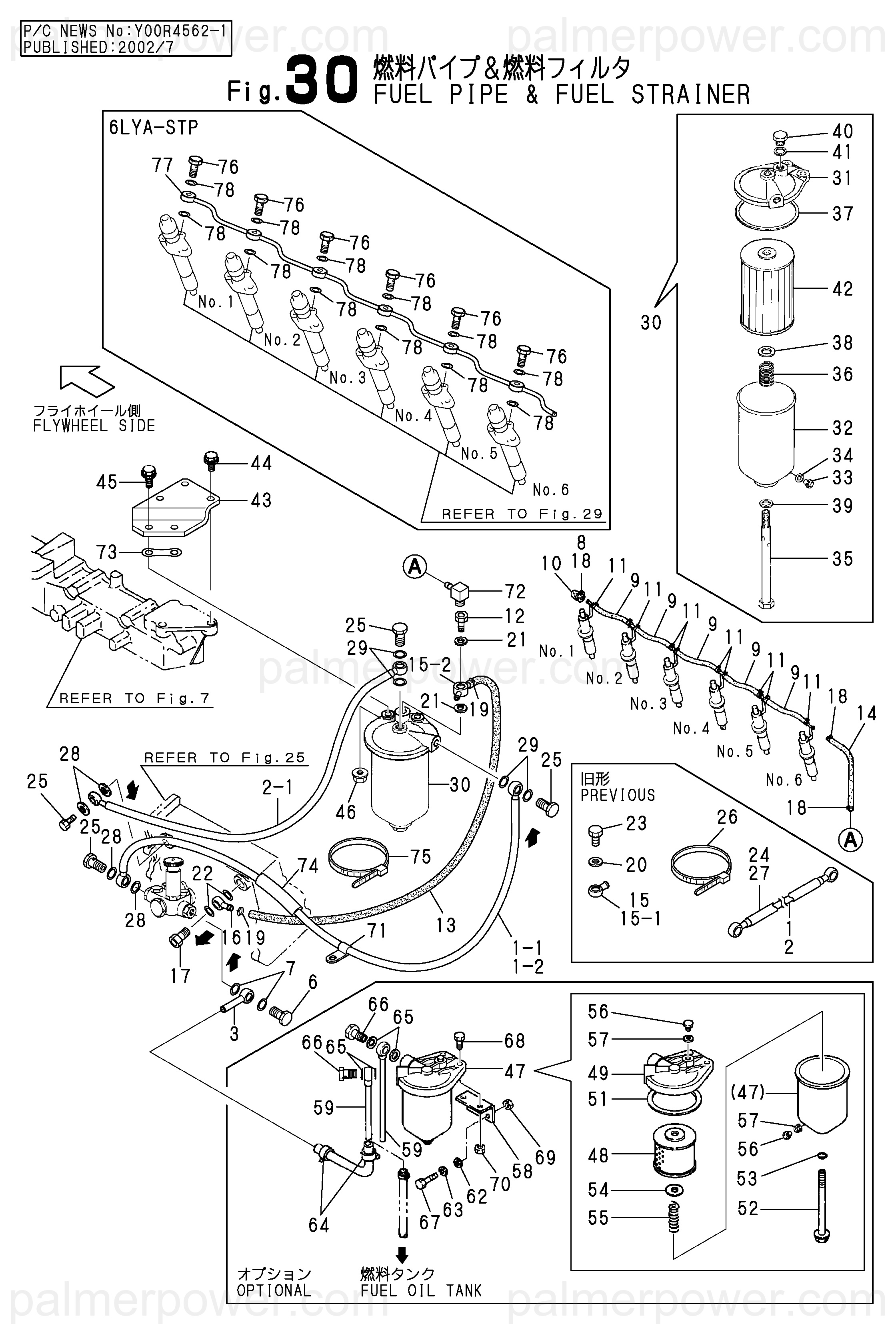

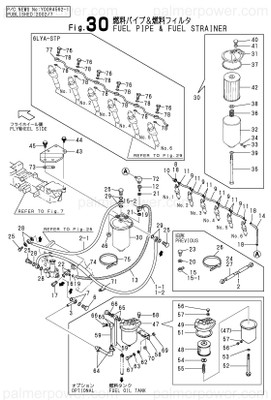

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 119593-59131 Pipe Assy, Fuel L630

Schematic Object Key : 1-1

Product Description : PIPE ASSY, FUEL L630 119593-59131

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PIPE ASSY, FUEL 119593-59130
1-1 PIPE ASSY, FUEL L630 119593-59131
1-2 PIPE ASSY, FUEL 119593-59132
2 PIPE ASSY, FUEL L450 119593-59140
2-1 PIPE ASSY, FUEL 119593-59141
3 PIPE ASSY, FUEL 123325-59420
6 BOLT, M14X26 148616-59430
7 GASKET, 14X1.0 23414-140000
8 CLIP, HOSE 8 124066-59100
9 PIPE, FUEL RETURN 129495-59551
9-1 PIPE, FUEL 129495-59553
10 CAP 129150-59580
10-1 CAP 119593-59580
10-2 CAP 129270-59580
11 CLAMP, 13 23000-013000
11-1 CLAMP, 16 23000-016000
12 BOLT, PIPE JOINT 129495-59300
12-1 VALVE ASSY, CHECK 119593-59920
13 PIPE, FUEL 119574-59510
13-1 PIPE, FUEL 119574-59512
14 PIPE, FUEL 119574-59530
14-1 PIPE, FUEL 119187-59562
15 JOINT, PIPE 129470-59530
15-1 JOINT, PIPE 119593-59980
15-2 JOINT, PIPE 119574-59980
16 JOINT 121750-59910
17 VALVE ASSY, CHECK 119181-59950
18 CLAMP, 13 23000-013000
18-1 CLAMP, 13 23000-013000
18-2 CLAMP, 16 23000-016000
19 CLAMP, 16 23000-016000
19-1 CLAMP, 19 23000-019000
20 GASKET, 8X1.0 23414-080000
21 GASKET, 14X1.0 23414-140000
22 GASKET, 14X1.0 23414-140000
23 BOLT, M8X 10 PLATED 26106-080102
24 PROTECTOR 119593-59250
25 BOLT, M14X26 148616-59430
26 BAND, 140 121750-59890
27 PROTECTOR 124770-77940
28 GASKET, 14X1.0 23414-140000
28-1 WASHER, SEAL 14 22190-140002
29 GASKET, 14X1.0 23414-140000
29-1 WASHER, SEAL 14 22190-140002
30 STRAINER, FUEL 41650-550310
31 COVER 123678-55700
32 CASE 123678-55720
33 PLUG, DRAIN M8 123672-55750
34 GASKET 123672-55760
35 BOLT 123678-55770
36 SPRING, SET 123678-55790
37 GASKET 123678-55850
38 SEAT, SPRING D30/16 123678-55860
39 GASKET 123678-55870
40 PLUG, M14 123678-55880
41 GASKET 123678-55890
42 STRAINER 41650-550810
43 BRACKET 119574-55650
44 BOLT, M10X 25 PLATED 26106-100252
44-1 BOLT, M10X 22 PLATED 26106-100222
45 BOLT, M10X 30 PLATED 26106-100302
46 NUT, M10 26366-100002
46-1 NUT, M10 26306-100002
47 SEPARATOR ASSY 120324-55750
48 ELEMENT 120324-55760
49 COVER ASSY X2740134001
51 GASKET X0582810173
52 BOLT X0311121522
53 O-RING, 1A P 12.0 X0580121073
54 SEAT, SPRING X0300120414
55 SPRING X0600160122
56 PLUG X0314080110
57 WASHER X0588080273
58 BRACKET 123672-55811
59 PIPE ASSY, FUEL 123325-59420
62 WASHER, 8 22137-080000
63 WASHER, SPRING 8 22217-080000
64 CLAMP, 16 23000-016000
65 GASKET, 14X1.0 23414-140000
66 BOLT, JOINT 8 23857-080000
67 BOLT, M8X 40 PLATED 26106-080402
68 BOLT, M10X 20 PLATED 26106-100202
69 NUT, M8 26366-080002
69-1 NUT, M8 26306-080002
70 NUT, M10 26706-100002
71 RETAINER, PIPE 119593-39450
71-1 RETAINER 128377-59860
72 ELBOW, PT1/8 119593-59960
73 PAD, CUSHION 127610-55820
74 PROTECTOR 119575-59300
75 BAND, 140 121750-59890
