YANMAR 119594-61500 Lever Assy, Governor

Write a Review
$644.83
SKU:
119594-61500
Schematic Object Key:
27

YANMAR 119594-61500 Lever Assy, Governor

$644.83

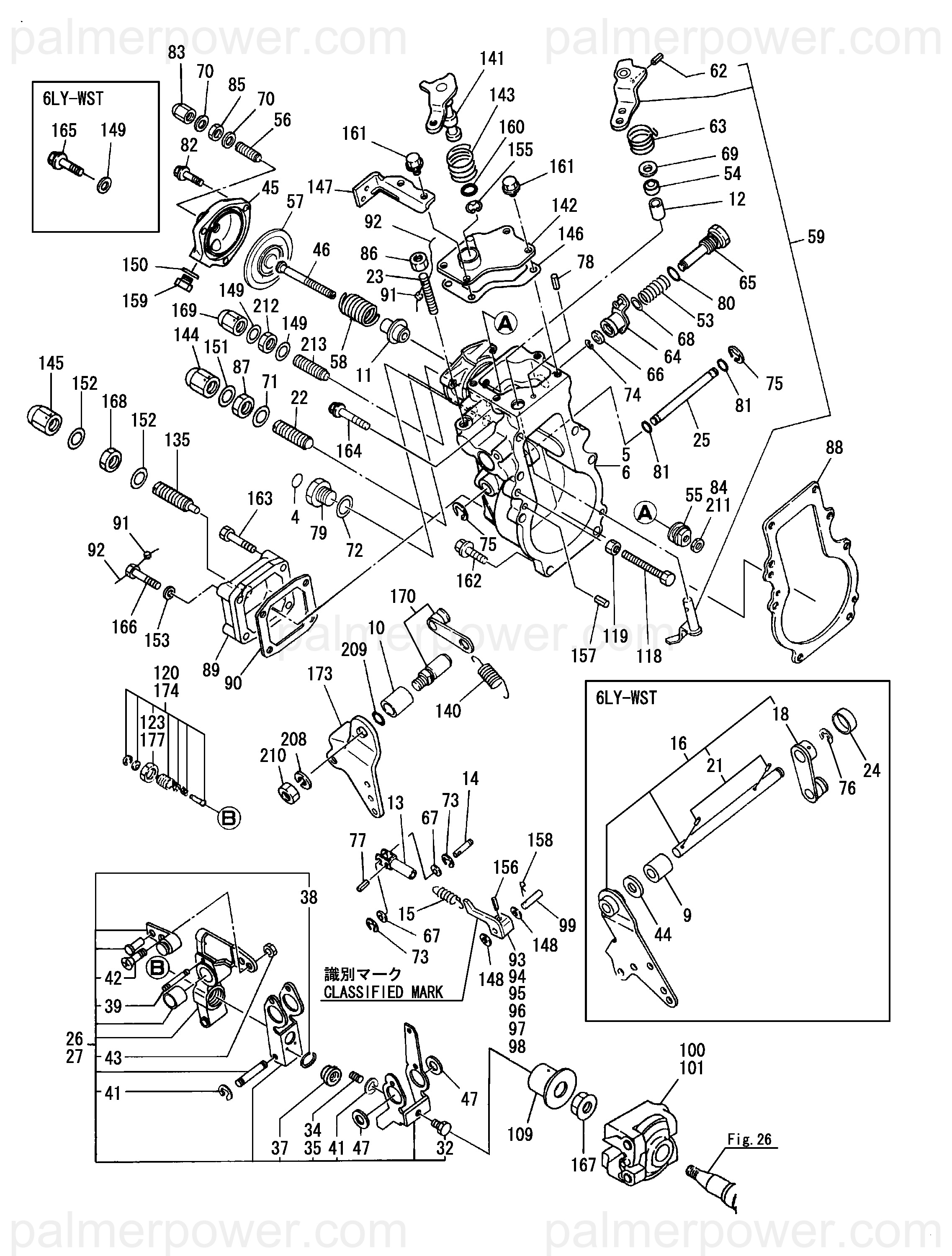

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 119594-61500 Lever Assy, Governor

Schematic Object Key : 27

Product Description : LEVER ASSY, GOVERNOR

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
4 LABEL 124610-51970
6 CASE, GOVERNOR 119593-61030
10 BUSH 119000-61430
11 BUSH 129595-61610
12 BUSH 127695-61840
13 LINK 119000-61120
14 PIN, LINK 119595-61170
15 SPRING 119187-61190
22 BOLT, CONTROL 127695-61450
23 BOLT, LIMITER 121850-61470
25 SHAFT 119000-61490
27 LEVER ASSY, GOVERNOR 119594-61500
32 SHIFTER 127495-61540
35 SPRING, FUEL CONTROL 119594-61600
37 RETAINER, SPRING 119187-61911
38 CIRCLIP 119187-61920
39 PIN 119187-61930
41 RING, E- 4 22272-000040
42 SCREW, M6X16 26577-060162
43 NUT, M6 26716-060002
45 CASE 129595-61600
46 ROD, SLIDER 129595-61620
47 SHIM SET 119000-61630
53 SPRING 119593-61650
54 SEAL, VC081404 148616-61650
55 RING 127495-61660
56 BOLT, ADJUSTING 129595-61671
57 DIAPHRAGM ASSY 129595-61681
58 SPRING, DIAPHRAGM 119593-61760
59 LEVER ASSY, STOP 119593-61800
62 PIN, SPRING 3.0X16 22351-030016
63 SPRING, RETURN 119593-61830
64 LEVER 119594-61850
65 SHAFT 119593-61860
66 SPACER 119593-61890
67 WASHER, 5 22117-050000
68 WASHER, 8 22117-080000
69 WASHER, 8 22137-080000
70 WASHER, SEAL 6 22190-080002
71 WASHER, SEAL 12 22190-120002
72 WASHER, SEAL 16 22190-160002
73 RING, E- 4 22272-000040
74 RING, E- 6 22272-000060
75 RING, E- 8 22272-000080
77 PIN, SPRING 3.0X16 22351-030016
78 PIN, B6X36 22492-060362
79 PLUG, 16 23887-160002
80 O-RING, 1AP12.0 24311-000120
81 O-RING, 1AS8.0 24341-000080
82 BOLT, M6X 18 PLATED 26106-060182
85 NUT, LOCK M8 26756-080002
86 NUT, LOCK M8 26756-080002
87 NUT, LOCK M12 26777-120002
88 GASKET 119000-61052
89 COVER, GOVERNOR CASE 119187-61071
90 GASKET 127695-61071
91 TIN 114780-61090
92 WIRE, 1.0 120325-61100
93 LINK 119593-61100
94 LINK 119593-61110
95 LINK 119593-61120
96 LINK, 10.5 119593-61130
97 LINK, 11.5 119593-61140
98 LINK, 12.5 119593-61150
99 PIN, LINK 119000-61180
101 WEIGHT ASSY,GOVERNOR 119173-61200
109 SLEEVE ASSY 119187-61300
118 BOLT, IDLE 171353-61460
119 NUT, M6 119000-61470
135 IDLE ASSY 127695-61551
140 SPRING, GOVERNOR 119594-61700
141 LEVER 119593-61900
142 COVER 119593-61910
143 SPRING, RETURN 119593-61920
144 NUT, CAP 129100-61930
145 NUT, CAP 129100-61930
146 GASKET 127695-61961
147 SUPPORT, WIRE 119593-61990
148 WASHER, 5 22117-050000
149 WASHER, SEAL 6 22190-080002
150 WASHER, SEAL 10 22190-100002
151 WASHER, SEAL 12 22190-120002
152 WASHER, SEAL 12 22190-120002
153 WASHER, SPRING 6 22217-060000
154 RING, E- 4 22272-000040
155 RING, E-10 22276-000100
156 PIN, SPRING 3.0X25 22351-030025
157 PIN, SPRING 5.0X20 22351-050020
158 PIN, SNAP 5 22372-050000
159 PLUG, 10 23887-100002
160 O-RING, 1AP11.0 24311-000110
161 BOLT, M6X 12 PLATED 26106-060122
162 BOLT, M6X 22 PLATED 26106-060222
163 BOLT, M6X 30 PLATED 26106-060302
164 BOLT, M6X 35 PLATED 26106-060356
166 BOLT, M6X 30 PLATED 26116-060306
167 NUT, M12 26376-120002
168 NUT, LOCK M12 26777-120002
169 NUT 152623-51560
170 SHAFT ASSY 119000-61400
173 LEVER, CONTROL 119187-61440
174 ANGLEICH ASSY 119589-61550
177 NUT, LOCK 124616-61580
208 WASHER, SPRING 10 22217-100000
209 O-RING, 1AP11.0 24311-000110
210 NUT, M10 26606-100002
211 NUT, LOCK M6 26756-060002
212 NUT, LOCK M8 26756-080002
213 SCREW, M8X40 26911-080402
