YANMAR 119595-51100 Plunger Assy, 11.0

Write a Review
$423.38
SKU:
119595-51100
Schematic Object Key:
12

YANMAR 119595-51100 Plunger Assy, 11.0

$423.38

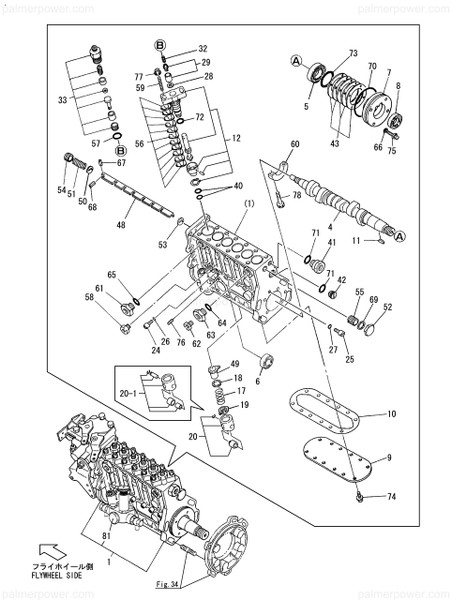

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 119595-51100 Plunger Assy, 11.0

Schematic Object Key : 12

Product Description : PLUNGER ASSY 119595-51100

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, INJECTION 719595-51300
4 CAMSHAFT 119595-51030
5 BEARING 119595-51050
6 BEARING 124410-51050
7 RETAINER, BEARING A 119595-51060
8 SEAL, OIL 119595-51070
9 COVER 119593-51080
10 GASKET 119593-51090
11 KEY, 5X19 144626-51090
12 PLUNGER ASSY 119595-51100
17 SPRING, PLUNGER 119000-51161
18 SEAT, SPRING A 119000-51170
19 SEAT, SPRING B 119000-51181
20 TAPPET ASSY 119595-51200
20-1 TAPPET ASSY 119578-51201
24 STOPPER, TAPPET 129155-51270
24-1 STOPPER, TAPPET 158600-51270
25 STOPPER, TAPPET 129155-51270
25-1 PLUG 8 119578-51400
26 O-RING, S6 129155-51280
27 O-RING, S6 129155-51280
27-1 O-RING, 1AP9.0 24311-000090
28 GASKET 119594-51290
29 VALVE ASSY, DELIVERY 119595-51300
32 SPRING, DELIVERY 119595-51330
33 VALVE ASSY, DELIVERY 119595-51340
33-1 VALVE ASSY, DELIVERY 119595-51341
40 O-RING, S18 119000-51410
40-1 O-RING 119000-51411
41 BUSH 119595-51410
42 BOLT 129155-51410
42-1 PLUG, DEFLECTOR 158600-51410
43 SHIM SET, CAMSHAFT 119594-51451
48 RACK, CONTROL 119593-51500
49 SLEEVE, CONTROL 119595-51510
49-1 SLEEVE, CONTROL 119000-51511
50 WASHER 119593-51520
51 SPRING, RACK 119593-51530
52 COVER 119000-51550
53 GUIDE, RACK 119000-51570
54 SCREW 119000-51580
55 SCREW 119000-51590
56 SHIM SET, ADJUSTING 119000-51650
57 O-RING 144626-51680
57-1 O-RING, 4D19018 24356-190180
57-2 PACKING, 19017 24356-190170
58 BUSH 121850-51700
59 BOLT 119000-51800
60 BEARING 119594-51850
61 PLUG 121952-51900
62 BOLT 122780-51900
63 PLUG 121950-51910
64 GASKET, PLUG 180110-51910
65 O-RING, 1016 144626-51950
65-1 O-RING, 4D19016 24356-190160
66 WASHER, SEAL 6 22190-060000
66-1 SEAL WASER 6 22190-060003
67 PIN, SPRING 2.0X 8 22351-020008
68 PIN, SPRING 2.0X12 22351-020012
69 GASKET, 22X1.0 23414-220029
70 O-RING, 1AG80.0 24321-000800
71 O-RING, 1AS16.0 24341-000160
71-1 O-RING 119717-51420
72 O-RING, 1AS26.0 24341-000260
72-1 O-RING, 4D S26 158563-51662
73 O-RING, 1AS56.0 24341-000560
74 BOLT, M6X 12 PLATED 26106-060122
74-1 BOLT, M6X 14 PLATED 26106-060142
75 BOLT, M6X 30 PLATED 26106-060302
75-1 BOLT, M6X30 119594-51070
76 STUD, M6X 16 26216-060162
76-1 STUD 129155-51020
77 NUT, M8 26366-080002
78 BOLT, M6X 40 26450-060402
81 PUMP, FUEL FEED 127691-52010
