YANMAR 120148-61780 O-Ring

Write a Review
$20.08
SKU:
120148-61780
Schematic Object Key:
109

YANMAR 120148-61780 O-Ring

$20.08

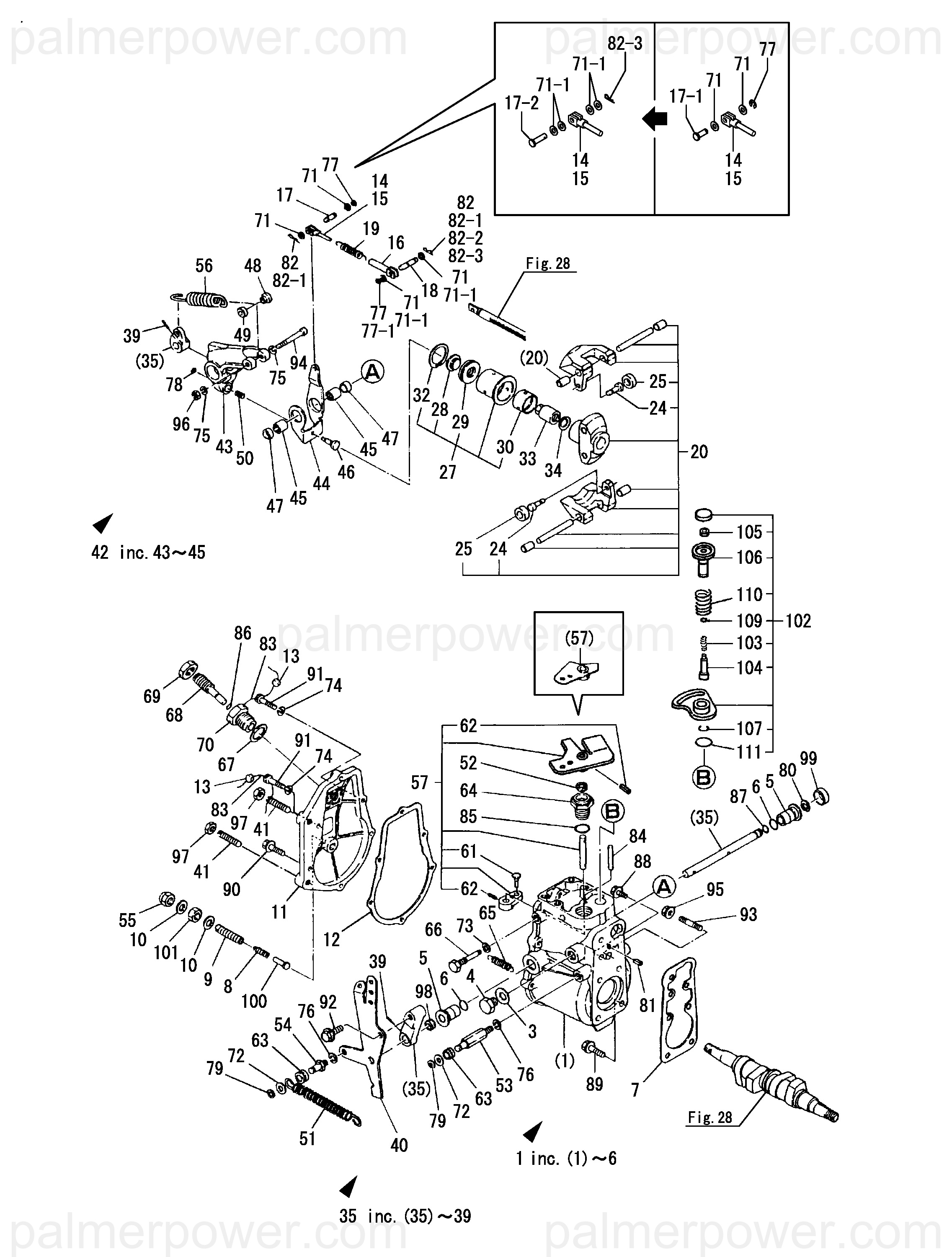

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 120148-61780 O-Ring

Schematic Object Key : 109

Product Description : O-RING

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 CASE ASSY, GOVERNOR 721850-61532
1-1 CASE ASSY, GOVERNOR 720148-61530
3 GASKET, 12X1.0 23414-120000
4 PLUG, 12 23887-120002
5 BUSH 129795-61430
6 O-RING, 1AS14.0 24341-000140
7 GASKET 121850-61050
7-1 GASKET 121850-61051
8 SPRING 129795-61500
9 SCREW 120148-61520
9-2 SCREW 129795-61521
10 SEAL WASHER 12S 43400-500450
10-1 WASHER, SEAL 12 22190-120000
10-2 WASHER, SEAL 12 22190-120002
11 COVER, GOVERNOR CASE 129795-61062
12 GASKET 121850-61071
12-1 GASKET 121850-61072
13 LEAD 135210-61090
13-1 TIN 114780-61090
14 LINK, A MARK -2 121850-61140
15 LINK, A MARK -1 121850-61150
16 LINK 121850-61160
17 PIN, LINK 121850-61170
17-1 PIN, LINK 119595-61170
17-2 PIN, LINK 127695-61790
18 PIN, LINK 121850-61180
19 SPRING 121850-61190
20 WEIGHT ASSY,GOVERNOR 129795-61200
24 PIN, ROLLER 121850-61240
25 ROLLER, WEIGHT 121850-61250
27 SLEEVE ASSY 121850-61300
28 SHIFTER 121850-61310
29 BEARING, THRUST 121850-61320
30 BUSH 121850-61330
32 CIRCLIP 121850-61350
33 NUT 121850-61380
34 SPRING 121850-61390
35 SHAFT ASSY 120130-61400
39 PIN, TAPER 3X25 22322-030250
40 LEVER, CONTROL 120130-61440
41 BOLT, LIMITER 121850-61470
42 LEVER ASSY, GOVERNOR 120130-61500
43 LEVER, GOVERNOR 121850-61511
44 LEVER 120130-61520
45 BEARING, NEEDLE 121850-61531
46 SHIFTER 124410-61540
47 COLLAR 121850-61560
48 PIECE 121850-61580
49 PIECE 121850-61590
50 SPRING, FUEL CONTROL 120130-61600
51 SPRING 121850-61650
52 SEAL, VC081404 148616-61650
53 BOLT 121850-61660
54 BOLT 121850-61670
55 NUT, CAP M12 26656-120002
56 SPRING, GOVERNOR 124617-61700
57 SHAFT ASSY 124410-61770
57-1 SHAFT ASSY 120148-61750
61 PIN 121850-61820
62 PIN, SPRING 3.0X16 22351-030016
63 PIECE 144626-61781
64 BUSH 121850-61840
65 SPRING 124410-61860
65-1 SPRING 120148-61860
66 BOLT 124410-61870
66-1 BOLT 120148-61870
67 WASHER, SEAL 144606-61910
67-1 WASHER, SEAL 20 22190-200002
68 BOLT, CONTROL 124410-61940
69 NUT 140673-61950
70 GUIDE 124410-61960
71 WASHER, 5 22117-050000
71-1 WASHER, 5 22117-050000
72 WASHER 22111-080000
72-1 WASHER, 8 22117-080000
73 GASKET, 8X1.0 23414-080000
73-1 WASHER, SEAL 8 22190-080000
73-2 WASHER, SEAL 6 22190-080002
74 WASHER, SPRING 6 22217-060000
75 WASHER, SPRING 6 22217-060000
76 WASHER, SPRING 8 22217-080000
77 RING, E- 4 22272-000040
77-1 RING, E- 4 22272-000040
78 RING, E- 4 22272-000040
79 RING, E- 6 22272-000060
79-1 RING, E- 6 22276-000060
80 RING, E- 7 22272-000070
80-1 RING, 7 22276-000070
81 PIN, SPRING 5.0X12 22351-050012
82 SNAP PIN 5 22360-050000
82-1 PIN, SNAP 5 22372-050000
82-2 PIN, SNAP 5 22372-050000
82-3 PIN, SNAP 5 22372-050000
83 WIRE, 1.0 22451-100000
83-1 WIRE, 1.0 120325-61100
84 PIN, B6X36 22492-060362
85 O-RING, 1AP16.0 24311-000160
86 O-RING, 2P7.0 24312-000070
87 O-RING, 1AS8.0 24341-000080
88 BOLT, M6X 14 PLATED 26106-060142
89 BOLT, M6X 18 PLATED 26106-060182
90 BOLT, M6X 22 PLATED 26106-060222
91 BOLT, M6X 25 PLATED 26116-060252
91-1 BOLT, M6X 25 PLATED 26116-060256
92 BOLT, M8X 18 PLATED 26106-080182
93 STUD, M6X 12 26216-060122
93-1 STUD, M6X 12 26226-060122
94 BOLT, M6X 45 26450-060452
95 NUT, M6 26366-060002
96 NUT, LOCK M6 26756-060002
97 NUT, LOCK M8 26756-080002
97-1 NUT, LOCK M8 26757-080002
97-2 NUT, LOCK M8 26756-080002
98 SEAL, OIL VC102004 24430-102004
98-1 SEAL, SC102004 120320-61540
99 PLUG, 20 129795-61470
100 GUIDE 129795-61510
101 NUT, M12 129305-07950
101-1 NUT, LOCK M12 26776-120002
102 CONTROLLER 120148-61700
103 SPRING 124210-51610
104 PIN, CONTROLLER 120148-61710
105 PIECE 120148-61720
106 GUIDE 120148-61730
107 PIN 120148-61740
109 O-RING 120148-61780
110 SPRING 120148-61790
111 O-RING, 1AS22.0 24341-000220
