YANMAR 120149-59010 Pipe, Fuel

Write a Review
$199.15
SKU:
120149-59010
Schematic Object Key:
44

YANMAR 120149-59010 Pipe, Fuel

$199.15

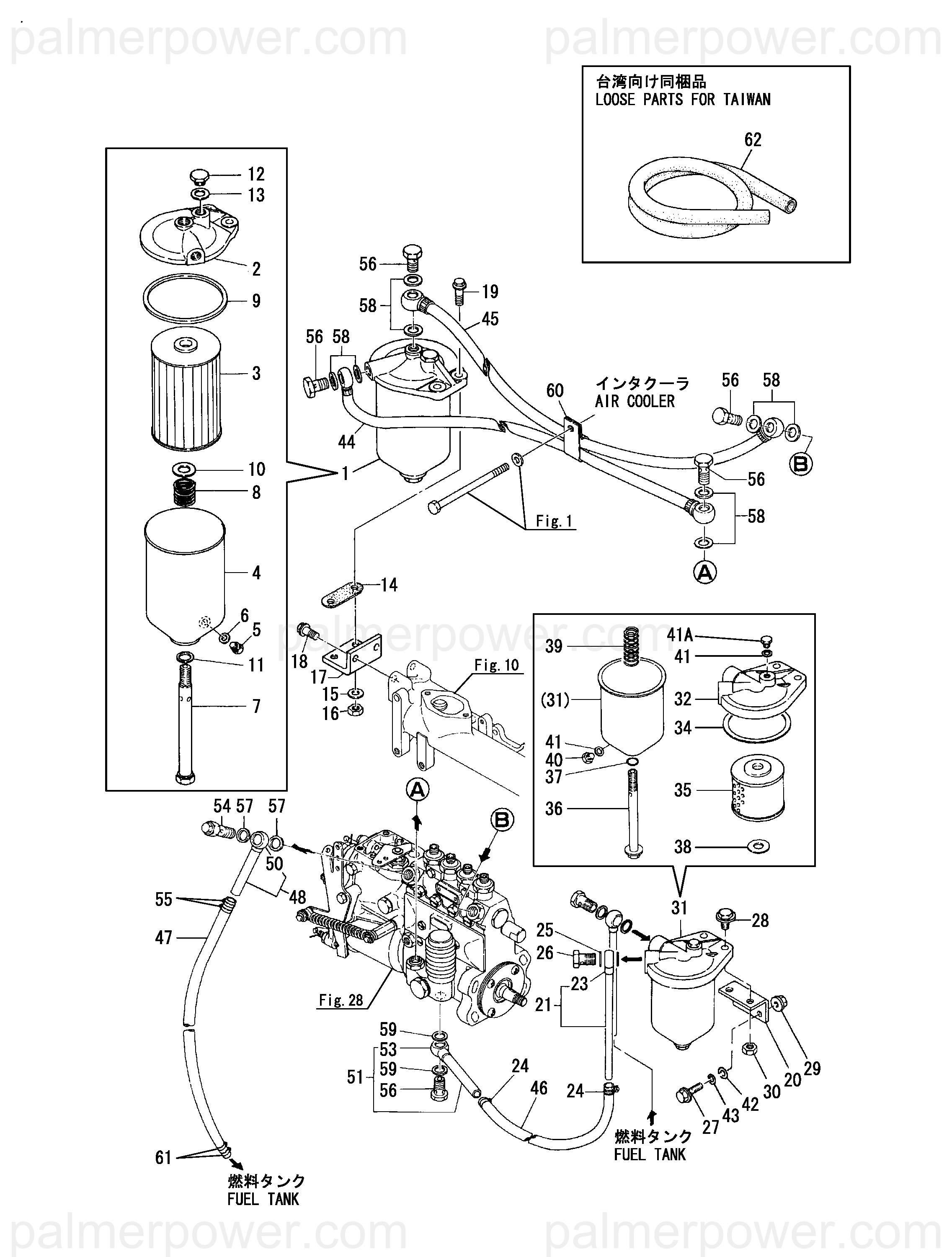

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 120149-59010 Pipe, Fuel

Schematic Object Key : 44

Product Description : PIPE, FUEL

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 STRAINER, FUEL 41650-550310
2 COVER 123678-55700
3 STRAINER 41650-550810
4 CASE 123678-55720
5 PLUG, DRAIN M8 123672-55750
6 GASKET 123672-55760
7 BOLT 123678-55770
8 SPRING, SET 123678-55790
9 GASKET 123678-55850
10 SEAT, SPRING D30/16 123678-55860
11 GASKET 123678-55870
12 PLUG, M14 123678-55880
13 GASKET, 14X1.0 23414-140000
13-1 GASKET 123678-55890
14 PAD, CUSHION 127610-55820
15 WASHER, 10 22137-100000
16 NUT, LOCK M10 26756-100002
17 BRACKET, STRAINER 120146-55810
18 BOLT, M10X 25 PLATED 26106-100252
19 BOLT, M10X 32 PLATED 26106-100322
20 BRACKET 123672-55811
21 PIPE ASSY, FUEL 123682-59420
21-1 PIPE ASSY, FUEL 123325-59420
23 JOINT 110250-39030
24 CLAMP, 16 23000-016000
25 GASKET, 14X1.0 23414-140000
26 BOLT, JOINT 8 23857-080000
27 BOLT, M8X 40 PLATED 26106-080402
28 BOLT, M10X 20 PLATED 26106-100202
29 NUT, M8 26366-080002
29-1 NUT, M8 26306-080002
30 NUT, M10 26706-100002
31 SEPARATOR 43623-500030
31-1 SEPARATOR ASSY 120324-55750
31-2 SEPARATOR ASSY 120324-55751
32 COVER ASSY X2740134001
32-1 COVER ASSY X2740134002
34 GASKET X0582810173
35 ELEMENT, FUEL OIL 42430-550060
35-1 ELEMENT 120324-55760
36 BOLT X0311120810
36-1 BOLT X0311121522
37 O-RING, 1A P 12.0 X0580121073
38 SEAT, SPRING X0300120414
39 SPRING X0600160122
40 BOLT X0313080110
40-1 BOLT X0313080922
41 WASHER X0588080273
41A PLUG X0314080110
42 WASHER, 8 22137-080000
43 WASHER, SPRING 8 22217-080000
44 PIPE, FUEL 120149-59010
45 PIPE, FUEL 120149-59020
46 PIPE, 9/16X2000 127610-59150
47 PIPE, 9/16X2000 127610-59150
48 PIPE ASSY, FUEL 123682-59420
48-1 PIPE ASSY, FUEL 123325-59420
50 JOINT 110250-39030
51 PIPE ASSY, FUEL 123682-59420
51-1 PIPE ASSY, FUEL 123325-59420
53 JOINT 110250-39030
54 BOLT, PIPE JOINT 123672-59490
54-1 VALVE 135310-59910
55 CLAMP, 16 23000-016000
56 BOLT, JOINT 8 23857-080000
57 GASKET, 14X1.0 23414-140018
58 GASKET, 14X1.0 23414-140018
58-1 WASHER, SEAL 14 22190-140002
59 GASKET, 14X1.0 23414-140018
59-1 GASKET 124450-01980
60 RETAINER, PIPE 148606-59250
61 CLAMP, 16 23000-016000
