YANMAR 120270-01602 Bracket

Write a Review
$228.55
SKU:
120270-01602
Schematic Object Key:
1

YANMAR 120270-01602 Bracket

$228.55

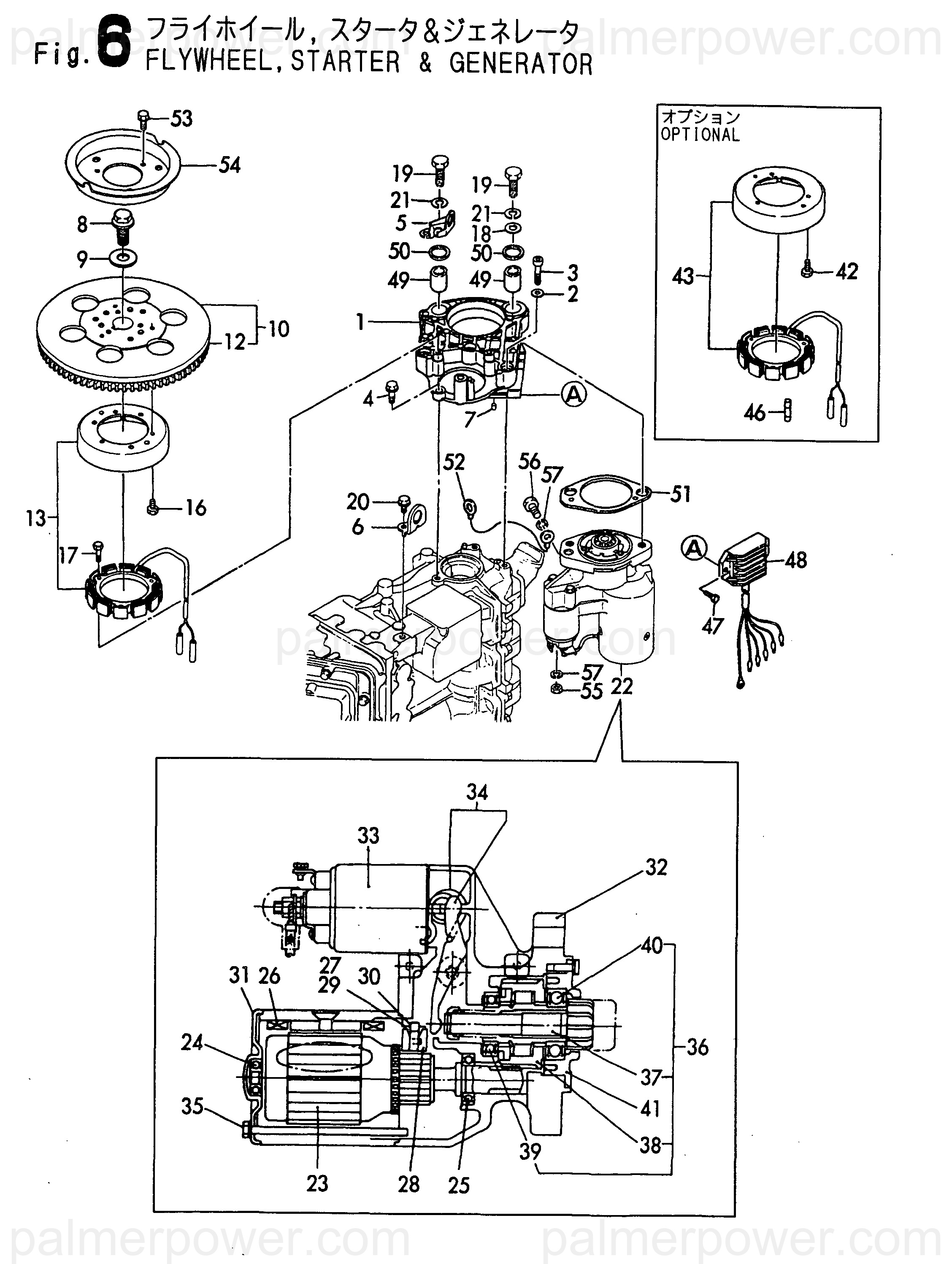

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 120270-01602 Bracket

Schematic Object Key : 1

Product Description : BRACKET, STARTER 120270-01602

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BRACKET, STARTER 120270-01602
2 WASHER, 8 196630-10370
3 BOLT, M8X35 120270-01960
4 BOLT, M8X25 120270-02820
5 POINTER 120270-07302
6 LIFTER 120270-07900
7 PIN, PARALLEL M6X10 22312-060100
8 BOLT 120270-21500
9 WASHER 120270-21550
10 FLYWHEEL ASSY 120370-21591
12 GEAR, RING 120270-21600
13 GENERATOR 120380-77221
16 BOLT, M6X10 120270-77850
17 BOLT, M6X22 120270-77860
18 WASHER 120380-77170
19 BOLT, M12X45 120270-02520
20 BOLT, M8X16 120270-02800
21 WASHER, SPRING 12 22213-120000
22 STARTER, S114 451A 120370-77011
23 ARMATURE ASSY X211451106
24 BALL BEARING X211415511
25 BALL BEARING X211425511
26 COIL ASSY,FIELD X211412109
27 BRUSH(+) X21146315
28 HOLDER ASSY,BRUSH X211449008
29 BRUSH (-) X211459002
30 SPRING, BRUSH X21148315
31 COVER, REAR X211483500
32 HOUSING GEAR X211496610
33 SWITCH ASSY,MAGNET. X211467602
34 LEVER, SHIFT X211446012
35 BOLT, THROUGH X211468005
36 PINION ASSY X213065006
37 PINIONSHAFT X211455510
38 SHAFT, PINION X213075006
39 BALL BEARING X21305509
40 BALL BEARING X211455502
41 BEARING RETAINER X211468008
42 BOLT, M6X10 120270-77850
43 GENERATOR, 20A 120270-77660
46 FUSE 30A 46150-003680
47 BOLT, M6X20 120270-02660
48 REGULATOR 120380-77720
48-1 REGULATOR 120380-77721
49 SPACER, B 120380-77111
50 DAMPER 120380-77120
51 DAMPER 120380-77130
52 HARNESS, WIRE 120380-77800
53 BOLT, M6X12 120270-02600
53-1 BOLT, M8X12 120270-02790
54 PULLEY 120270-21951
54-1 PULLEY 120270-21952
55 NUT, M8 120270-01910
56 BOLT, M8X16 120270-02800
57 WASHER, SPRING 8 22213-080000
