YANMAR 120320-42181 Wear Plate

Write a Review
$36.78
SKU:
120320-42181
Schematic Object Key:
23

YANMAR 120320-42181 Wear Plate

$36.78

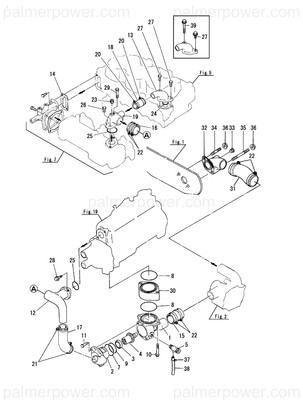

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 120320-42181 Wear Plate

Schematic Object Key : 23

Product Description : WEAR PLATE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 CASE ASSY, GEAR 720325-01600
3 PIN, PARALLEL M8X20 22312-080200
3-1 PIN, PARALLEL M8X16 22312-080160
4 STUD, M10X 28 26216-100282
5 NUT, M10 26306-100002
6 O-RING, 1AG60.0 24321-000600
7 BOLT, M8X 80 PLATED 26106-080802
8 O-RING 124410-51960
9 NUT, CAP 144606-54900
10 WASHER 144606-54910
11 GASKET, GEAR CASE 120324-01520
12 GASKET, COVER 120320-01750
12-1 GASKET 120320-01751
13 COVER 120325-01820
13-1 COVER 120325-01821
14 BOLT, M8X 20 PLATED 26106-080202
14-1 BOLT, M8X 25 PLATED 26106-080252
15 BOLT, M8X 25 PLATED 26106-080252
16 BOLT, M8X 80 PLATED 26116-080802
17 PUMP ASSY, WATER 720320-42701
17-1 WATER PUMP ASSY,SEA 720320-42702
20 SHAFT, IMPELLER 120320-42160
21 COVER, PUMP 120320-42220
22 O-RING, 1AS70.0 24341-000700
23 WEAR PLATE 120320-42181
24 IMPELLER, C.WATER 122610-42021
24-1 IMPELLER, C.WATER 122610-42022
24-2 IMPELLER, C.WATER 122610-42023
24-4 IMPELLER, S.W. PUMP 122610-42024
25 SEAL, MECHANICAL 120320-42200
26 RING, RUBBER 123325-42050
27 BEARING, BALL 6203 24101-062034
28 RING, 40 22252-000400
29 SEAL, TC17328 123325-42060
30 BOLT, M6X 10 26113-060102
31 JOINT, DRAIN 126650-42301
32 PLUG, G1/4 23894-020002
33 GASKET, 13X1.0 23414-130000
34 WASHER 120445-42180
35 CIRCLIP 122730-42200
36 GEAR, PUMP 120320-42300
37 RETAINER 124460-77680
38 KEY, 5X 14 22512-050142
39 PIPE, 7X 300 23061-070300
40 NUT, LOCK M16 26772-160002
41 O-RING, 1AG70.0 24321-000700
42 BOLT, M8X 20 PLATED 26106-080202
43 PUMP ASSY, WATER 720320-43101
45 COCK ASSY, 1/4 119620-49290
46 RETAINER 124460-77680
47 PIPE, 7X 400 23061-070400
