YANMAR 120325-11680 Seat, Valve

Write a Review
$113.82
SKU:
120325-11680
Schematic Object Key:
5

YANMAR 120325-11680 Seat, Valve

$113.82

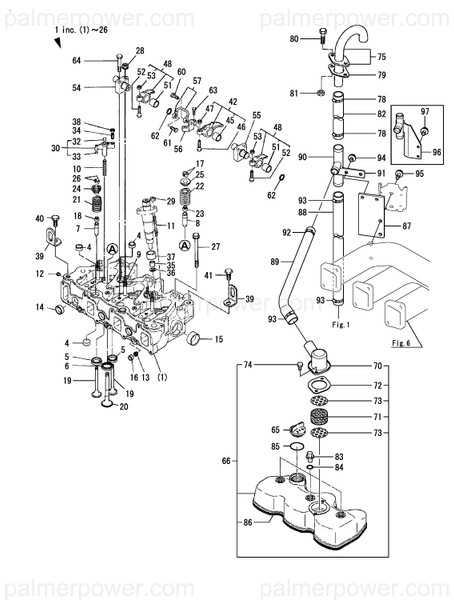

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 120325-11680 Seat, Valve

Schematic Object Key : 5

Product Description : SEAT, VALVE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HEAD ASSY, CYLINDER 720325-11703
4 PLUG, 22 27241-220000
5 SEAT, VALVE 120325-11680
6 SEAT, VALVE 120320-11690
7 GUIDE, VALVE 120325-11160
8 GUIDE, VALVE 120325-11170
9 BOLT, L=70 124160-11351
10 GUIDE, BRIDGE 120320-11530
11 STUD 120323-11770
12 PLUG, R01 23876-010000
13 PLUG, R02 23876-020000
14 PLUG, 28 27241-280000
15 PLUG, 40 27241-400000
16 PLUG, 16 27241-160000
17 COTTER, 9 27310-090001
18 SEAL, VALVE STEM 124160-11340
19 VALVE, INTAKE 120325-11100
20 VALVE, EXHAUST 120325-11110
21 SPRING, VALVE 120324-11120
22 SPRING, VALVE 120320-11130
23 SEAL, VALVE STEM 121850-11150
24 ROTATOR, VALVE 120324-11181
25 RETAINER, SPRING 121850-11180
26 COTTER, 7 27310-070001
27 STUD, CYL. HEAD 120320-01200
28 NUT, M10 26306-100002
29 NUT, M8 26306-080002
30 BRIDGE ASSY, VALVE 120324-11500
32 SEAT, BRIDGE 120324-11550
33 SEAT, BRIDGE 120320-11560
34 SCREW, VALVE 120320-11520
35 INSULATOR 120324-11900
36 GASKET, NOZZLE 120324-11910
37 COVER, L8.1 120323-11920
38 NUT, LOCK M8 26756-080002
39 LIFTER 120323-07230
40 BOLT, M14X 25 PLATED 26156-140252
41 BOLT, M14X 30 PLATED 26156-140302
42 ARM ASSY, ROCKER 720323-11651
45 BUSH 120320-11360
46 ADJUSTER 120323-11231
47 NUT, LOCK M8 26756-080002
48 ARM ASSY, ROCKER 720323-11661
51 BUSH 120320-11370
52 ADJUSTER 120323-11231
53 NUT, LOCK M8 26756-080002
54 SUPPORT, ROCKER ARM 120320-11261
55 SUPPORT, ROCKER ARM 120320-11271
56 SUPPORT, ROCKER ARM 120320-11451
57 PIPE ASSY, OIL 120320-11460
60 BOLT, PIPE JOINT M8 105582-59150
61 BOLT, PIPE JOINT 120320-11491
62 RING, 22 22242-000220
63 BOLT, M6X 20 PLATED 26106-060202
64 BOLT, M10X 55 PLATED 26106-100552
65 COVER, FILLER 124160-01751
66 BONNET ASSY 120325-11280
70 COVER, BREATHER 124411-03030
71 FILTER, BREATHER 121850-03050
71-1 FILTER, BREATHER 120270-03060
72 GASKET 124411-03051
73 PLATE, BAFFLE 121750-03080
74 BOLT, M6X 12 26013-060122
75 PIPE ASSY, BREATHER 126415-03100
78 CLAMP, 35 23000-035000
79 GASKET, 26X1.5 23421-260000
80 BOLT, M10X 40 26014-100402
81 NUT, M10 26366-100002
81-1 NUT, M10 26306-100002
82 PIPE 43720-801160
83 KNOB 124160-11360
84 O-RING, 1AP12.0 24311-000120
85 O-RING, 1AG35.0 24321-000350
86 GASKET, BONNET 120320-11340
87 BRACKET 120325-03060
88 PIPE , BREATHER 120325-03120
89 PIPE , BREATHER 120325-03130
90 JOINT, BREATHER 120325-03140
91 RETAINER, PIPE 127450-03250
91-1 RETAINER 120325-03250
91-2 RETAINER 120325-03250
92 CLAMP, 28 23000-028000
93 CLAMP, 35 23000-035000
94 BOLT, M8X 10 PLATED 26106-080102
95 BOLT, M8X 20 PLATED 26106-080202
96 JOINT,BREATHER 120325-03170
97 BOLT, M8X 18 PLATED 26106-080182
