YANMAR 120380-21601 Gear, Ring

Write a Review
$337.01
SKU:
120380-21601
Schematic Object Key:
11

YANMAR 120380-21601 Gear, Ring

$337.01

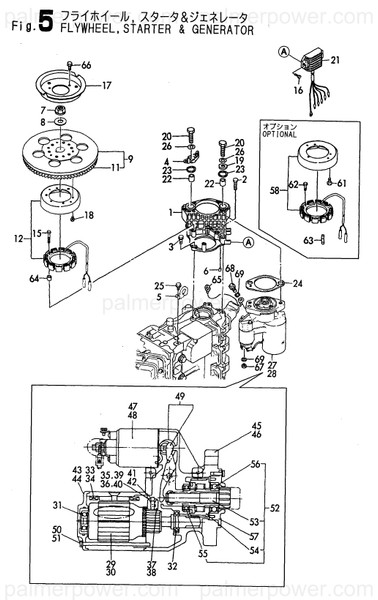

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 120380-21601 Gear, Ring

Schematic Object Key : 11

Product Description : GEAR, RING

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BRACKET, STARTER 120380-01602
2 BOLT, M8X25 120270-02820
3 BOLT, M8X45 120270-02870
4 POINTER 120270-07302
5 LIFTER 120270-07900
6 PIN, PARALLEL M6X10 22312-060100
7 NUT, END 120380-21530
8 WASHER 120380-21550
9 FLYWHEEL ASSY 120380-21592
11 GEAR, RING 120380-21601
12 GENERATOR 120380-77221
15 BOLT, M6X40 120270-77870
16 BOLT, M6X20 120270-02660
17 PULLEY 120270-21951
17-1 PULLEY 120270-21952
18 BOLT, M6X10 120270-77850
19 WASHER 120380-77170
20 BOLT, M12X45 120270-02520
21 REGULATOR 120380-77720
21-1 REGULATOR 120380-77721
22 SPACER, B 120380-77111
23 DAMPER 120380-77120
24 DAMPER 120380-77130
25 BOLT, M8X16 120270-02800
26 WASHER, SPRING 12 22213-120000
27 STARTER, 1.4KW 120380-77010
28 STARTER, 1.8KW 120380-77020
29 ARMATURE ASSY X211481106
30 ARMATURE ASSY X213011004
31 BALL BEARING X211445511
32 BALL BEARING X211425511
33 COIL ASSY,FIELD X211452109
34 COIL ASSY,FIELD X213042001
35 BRUSH(+) X21146315
36 BRUSH, + X213023112
37 HOLDER ASSY,BRUSH X211449008
38 HOLDER ASSY,BRUSH X213033022
39 BRUSH (-) X211459002
40 BRUSH, + X213023112
41 SPRING, BRUSH X21148315
42 SPRING, BRUSH X21309313
43 COVER, REAR X211423013
44 COVER X213023015
45 HOUSING GEAR X211496610
46 CASE ASSY, GEAR X213016007
47 SWITCH ASSY,MAGNET. X211467602
48 SWITCH, MAGNET X211427508
49 LEVER, SHIFT X211446012
50 BOLT, THROUGH X211458005
51 BOLT, THROUGH X21305821
52 PINION ASSY X213065006
53 PINIONSHAFT X211455510
54 SHAFT, PINION X213075006
55 BALL BEARING X21305509
56 BALL BEARING X211455502
57 BEARING RETAINER X211468008
58 GENERATOR, 20A 120270-77660
61 BOLT, M6X10 120270-77850
62 BOLT, M6X22 120270-77860
63 FUSE 30A 46150-003680
64 PIECE, DISTANCE 120380-77250
65 HARNESS, WIRE 120380-77800
66 BOLT, M8X12 120270-02790
67 NUT, M8 120270-01910
68 BOLT, M8X16 120270-02800
69 WASHER, SPRING 8 22213-080000
