YANMAR 120380-61640 Lever, Governer

Write a Review
$56.88
SKU:
120380-61640
Schematic Object Key:
21

YANMAR 120380-61640 Lever, Governer

$56.88

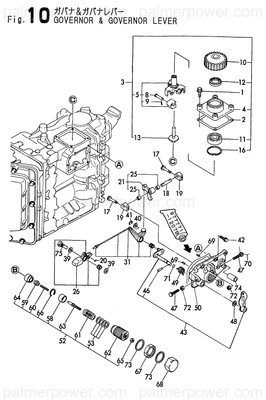

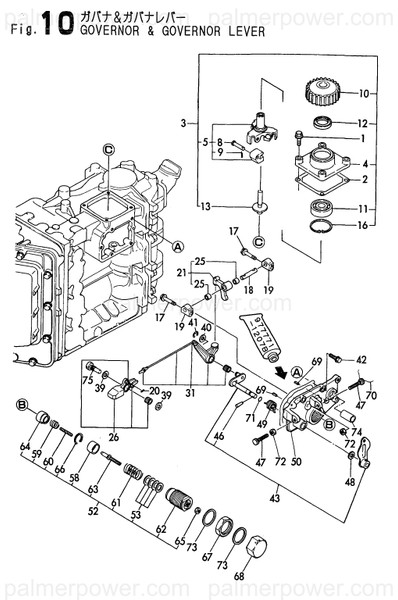

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 120380-61640 Lever, Governer

Schematic Object Key : 21

Product Description : LEVER ASSY, GOVERNOR 120380-61640

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BOLT, M6X25 120270-02620
2 GASKET 120270-61020
3 GOVERNOR ASSY 720270-61701
4 COVER, GOVERNOR 120270-61010
5 WEIGHT ASSY,GOVERNOR 720270-61611
8 PIN, GOVERNOR WEIGHT 120270-61220
9 PIN, COTTER 2.0X10 22413-200100
10 PULLEY 120270-61120
11 BEARING, BALL 6302C3 120270-61160
11-1 BEARING, BALL 6302C3 24101-063020
12 SEAL, OIL 120270-61250
13 SPINDLE ASSY 120380-61290
16 RING, 42 22252-000420
17 BOLT, M6X 35 PLATED 26106-060352
18 SHAFT 120270-61550
19 BRACKET 120270-61570
20 PIN 120270-61580
21 LEVER ASSY, GOVERNOR 120380-61640
25 BUSH 120270-61530
26 LEVER ASSY, GOVERNOR 120270-61710
31 LEVER ASSY, GOVERNOR 120270-61951
39 WASHER, 8 22137-080000
40 WASHER, 8 22137-080000
41 RING, E- 7 22272-000070
42 BOLT, M6X20 120270-02660
43 LEVER ASSY,REGULATOR 720380-66700
46 PIN, TAPER 3X18 22322-030180
47 BOLT 120270-66060
48 WASHER, THRUST 120270-66070
49 SPRING, RETURN 120270-66081
50 BRACKET ASSY 120270-66090
52 REGULATOR ASSY 720270-66750
53 SHIM SET 120270-66200
58 RETAINER, SPRING 120270-66310
59 SPRING 120270-66370
60 SPRING 120370-66380
61 SPRING, REGULATOR 120270-66390
62 CASE, SPRING 120270-66401
63 ADJUSTER 120270-66440
64 RETAINER, SPRING 120270-66450
65 NUT, LOCK M6 26756-060002
66 RING, R-22 22262-000220
67 NUT, M30 120270-66420
68 NUT, CAP 120270-66430
69 PIN, SPRING 4.0X 8 22351-040008
70 WIRE, 0.6 22454-060000
71 O-RING, 1AP5.0 24311-000050
72 NUT, M6 26715-060002
73 WASHER, SEAL 30 43400-500610
73-1 WASHER, SEAL 30 22190-300002
74 STAY 120270-66250
75 PIN 120270-61940
