YANMAR 121550-11240 Shaft

Write a Review
$45.80
SKU:
121550-11240
Schematic Object Key:
28

YANMAR 121550-11240 Shaft

$45.80

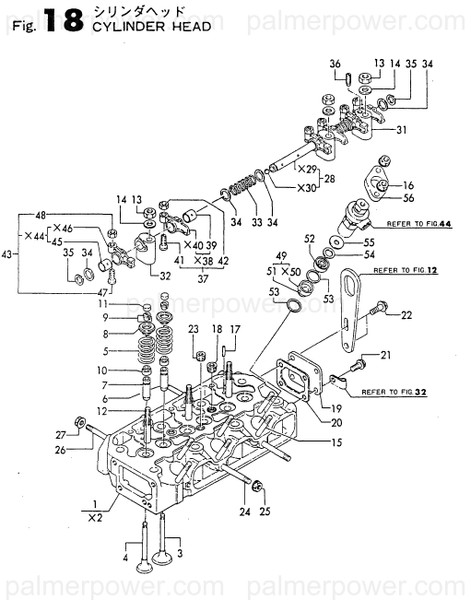

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 121550-11240 Shaft

Schematic Object Key : 28

Product Description : SHAFT ASSY, ROCKER 121550-11240

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HEAD ASSY, CYLINDER 721575-11702
3 VALVE, INTAKE 104211-11100
4 VALVE, EXHAUST 104211-11110
5 SPRING, VALVE 121575-11121
6 GUIDE, VALVE 124060-11800
7 GUIDE, VALVE 124060-11810
8 RETAINER, SPRING 104211-11180
9 COTTER, 7 27310-070001
10 SEAL, VALVE STEM 124950-11340
11 CAP, VALVE 104211-11370
12 STUD 105225-11350
13 NUT, LOCK M10 26776-100002
14 WASHER, 10 22137-100000
15 STUD, M8X 70 26216-080702
16 NUT, M8 26366-080002
17 PIN, 4.5X12 121000-11050
18 PLUG, R03 23873-030000
19 COVER, HEAD 121450-11670
20 GASKET 121450-11680
21 BOLT, M8X 12 PLATED 26106-080122
22 BOLT, M8X 16 PLATED 26106-080162
23 PLUG, R02 23871-020000
24 STUD M 8X57 *REF. 20=10
25 NUT M 8 *REF. 20=11
26 STUD M 8X90 *REF. 35=31
27 NUT M 8 *REF. 35=32
28 SHAFT ASSY, ROCKER 121550-11240
31 SUPPORT, ROCKER ARM 121450-11260
32 SUPPORT, ROCKER ARM 121450-11270
33 SPRING 121550-11280
34 WASHER 121550-11290
35 RING, 14 22242-000140
36 SCREW, M8X10 26921-080102
37 ARM ASSY, ROCKER 721450-11650
39 BUSH, ROCKER ARM 124060-11220
41 SCREW, VALVE ADJUST 101158-11230
42 NUT, LOCK M8 26756-080002
43 ARM ASSY, ROCKER 721450-11660
45 BUSH, ROCKER ARM 124060-11220
47 SCREW, VALVE ADJUST 101158-11230
48 NUT, LOCK M8 26756-080002
49 CHAMBER 121575-11421
51 PIN 103338-11430
52 CHAMBER 128695-11410
53 GASKET, CHAMBER 121550-11451
54 PROTECTOR 128275-11490
55 COVER 128695-11500
56 RETAINER 101147-11900
