YANMAR 121972-51100 Plunger Assy

Write a Review
$165.12
SKU:
121972-51100
Schematic Object Key:
10

YANMAR 121972-51100 Plunger Assy

$165.12

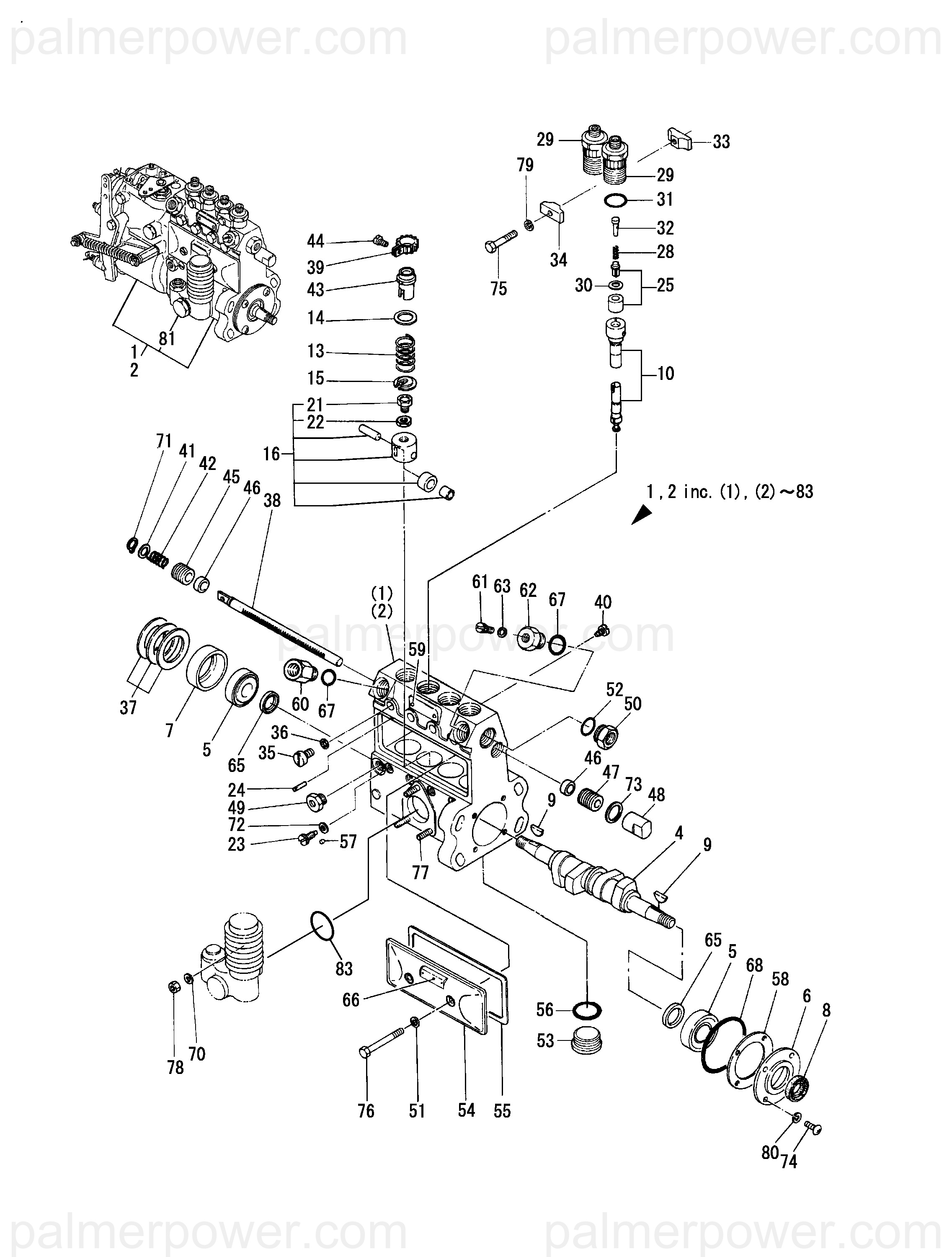

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 121972-51100 Plunger Assy

Schematic Object Key : 10

Product Description : PLUNGER ASSY 121972-51100

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 PUMP ASSY, INJECTION 721972-51300
4 CAMSHAFT 121950-51030
5 BEARING, HR30203J 122710-51050
6 RETAINER, BEARING A 121850-51060
7 RETAINER, SPRING B 121850-51070
8 SEAL, AC0735-E00X9 122710-51080
9 KEY 122710-51090
10 PLUNGER ASSY 121972-51100
13 SPRING, PLUNGER 122710-51160
14 RETAINER, SPRING 122710-51170
15 RETAINER, SPRING 122710-51180
16 TAPPET ASSY 122710-51200
21 BOLT, ADJUSTING 122710-51250
22 NUT, LOCK 122710-51260
23 STOPPER 122710-51270
24 PIN 122710-51280
25 VALVE ASSY, DELIVERY 121952-51300
28 SPRING, DELIVERY 121952-51330
29 RETAINER 121952-51340
30 GASKET 122710-51350
30-1 GASKET, DELIVERY 124410-51350
31 O-RING 122710-51360
32 STOPPER, VALVE 121952-51370
33 STOPPER 121850-51380
34 STOPPER 121850-51390
35 SCREW 122710-51400
36 GASKET 122710-51410
37 SHIM SET, ADJUSTING 121850-51450
38 RACK, CONTROL 121950-51500
39 PINION, CONTROL 122710-51510
40 STOOPER, RACK 122710-51520
41 SPACER 121850-51530
42 SPRING, RACK 122710-51540
43 SLEEVE, PINION 122710-51550
44 SCREW 122117-51560
45 SCREW 122710-51571
46 BUSH, RACK 122710-51580
47 SCREW 122710-51590
48 NUT, CAP 121850-51600
49 BUSH 121850-51700
50 PLUG 122710-51701
51 WASHER, SEAL 144626-51700
51-1 WASHER, SEAL 6 22190-060002
52 O-RING, 2017 122710-51721
53 PLUG 124410-51730
54 COVER 121950-51751
55 GASKET 121950-51761
56 O-RING 122710-51790
57 STOPPER 122710-51880
58 GASKET 122710-51890
59 RIVET 124220-51890
60 JOINT, OVER FLOW 121850-51900
61 BOLT 122780-51900
62 PLUG 121950-51910
63 GASKET, PLUG 180110-51910
65 SPACER 122710-51920
66 PLATE 121850-51930
67 O-RING, 1016 144626-51950
68 O-RING 121850-51960
70 WASHER, SPRING 6 22217-060000
71 RING, 11 22242-000110
72 GASKET, 6X1.0 23414-060000
73 GASKET, 18X1.0 23414-180023
74 SCREW, M6X16 26022-060162
75 BOLT, M6X 35 PLATED 26106-060352
76 BOLT, M6X 55 PLATED 26116-060559
77 STUD, M6X 16 26216-060162
78 NUT, M6 26716-060002
79 WASHER, SPRING 6 22217-060000
80 WASHER 6 22287-060000
81 FUEL FEED PUMP 123325-52010
83 O-RING, S32 122710-51870
