YANMAR 123110-01670 Gasket

Write a Review
$1.84
SKU:
123110-01670
Schematic Object Key:
36

YANMAR 123110-01670 Gasket

$1.84

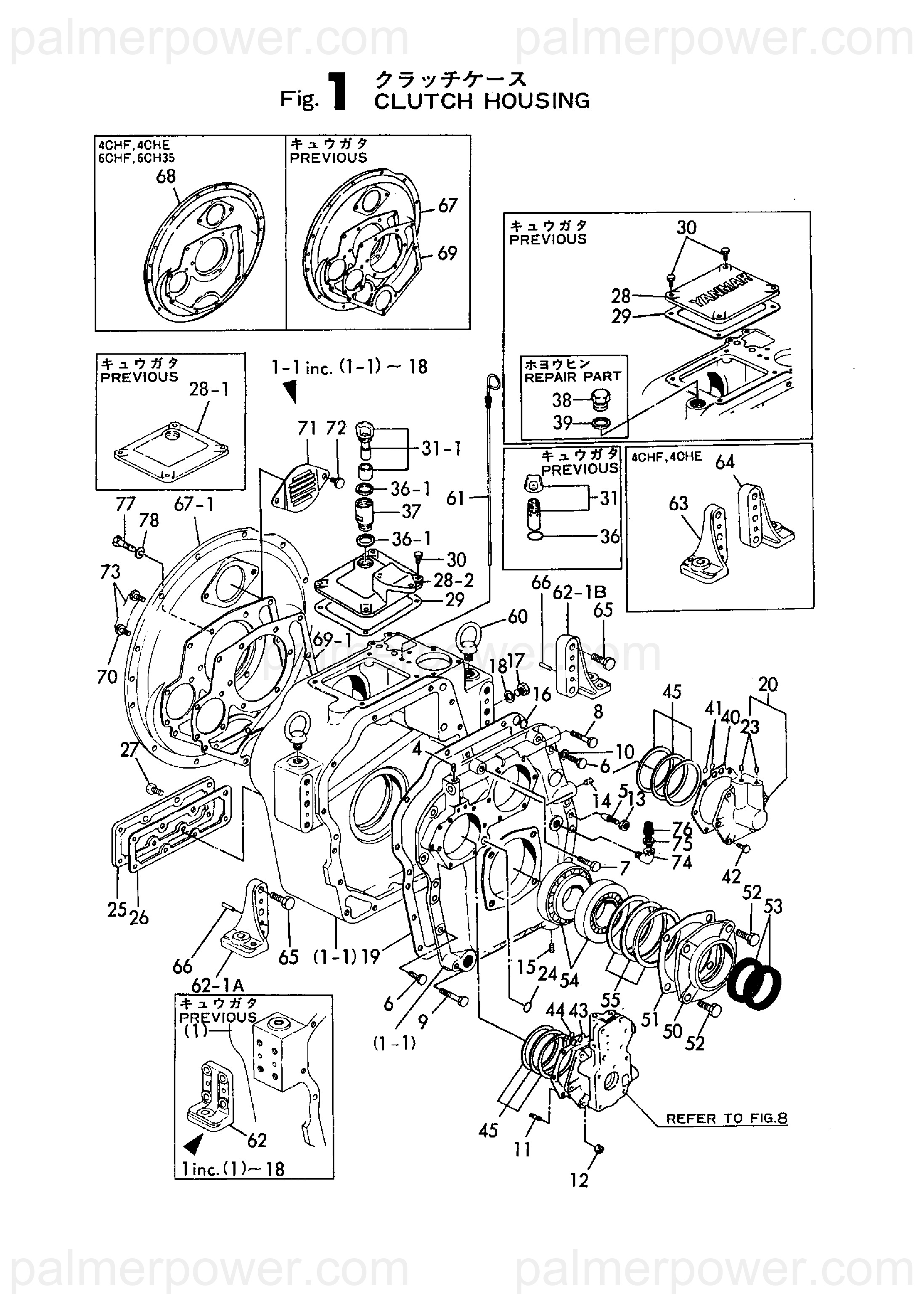

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 123110-01670 Gasket

Schematic Object Key : 36

Product Description : GASKET 123110-01670

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 CLUTCH CASE ASS'Y 723672-82551
1-1 HOUSING ASSY, CLUTCH 723672-82552
4 PLUG, R01 23871-010000
5 PIN, TAPER 10X 22 22333-100220
6 BOLT 10X25 26112-100252
7 BOLT M10X 35 26112-100352
8 BOLT M10X 45 26112-100452
9 BOLT 10X50 26112-100502
10 GASKET, 10X1.0 23414-100000
11 STUD, M8X 16 26216-080162
11-1 STUD M 8X 20 26212-080202
12 NUT, M8 26712-080002
13 NUT, M10 26712-100002
14 PLUG, R03 23871-030000
14-1 PLUG, R02 23871-020000
15 PLUG, R03 23873-030000
15-1 PLUG, R02 23873-020000
16 O-RING, 1AP14.0 24311-000140
17 PLUG 14 23881-140002
18 GASKET, 14X1.0 23414-140000
19 PACKING, CASE 123672-82031
19-1 PACKING, CASE 123672-82032
20 COVER ASSY 777001-02600
23 PLUG, R01 23871-010000
24 O-RING, 1AP14.0 24311-000140
25 COVER 123672-82080
26 GASKET, COVER 123672-82090
26-1 GASKET, COVER 123672-82091
27 BOLT, M10X 22 PLATED 26116-100222
28 COVER 125310-82060
28-1 COVER, CASE 123672-82240
28-2 COVER 127610-82241
29 GASKET, COVER 125310-82080
29-1 GASKET, COVER 125310-82081
30 BOLT 8X20 26112-080202
31 PLUG 123672-82800
31-1 PLUG ASSY, M30X1.5 123672-82850
36 GASKET 123110-01670
36-1 WASHER, SEAL 30 43400-500610
37 SPACER 123672-82910
38 PLUG 123672-82920
39 WASHER, SEAL 30 43400-500610
40 PACKING, COVER 123672-82110
40-1 PACKING, COVER 123672-82111
41 O-RING 123385-82130
42 BOLT, M8X 20 PLATED 26116-080202
42-1 BOLT, M8X 25 26112-080252
43 PACKING, COVER 123672-82160
43-1 PACKING, COVER 123672-82161
44 O-RING 123385-82130
45 SHIM SET 123385-82550
50 COVER 123672-82300
51 GASKET, COVER 135210-82240
51-1 GASKET, COVER 135210-82241
52 BOLT M12X 32 26112-120322
53 SEAL SC70 92 12,OIL 135200-01820
54 BEARING, ROLLER 135210-82500
55 SHIM SET 135210-82400
60 BOLT, EYE M16 26610-160002
61 DIPSTICK 42130-000950
62 BRACKET, ENGINE 123325-01071
62-1A BRACKET 123672-82200
62-1B BRACKET 123672-82210
63 FOOT, MOUNTING 127411-82200
64 FOOT, MOUNTING 127411-82210
65 BOLT M12X 50 26112-120502
66 PIN, PARALLEL M10X32 22312-100320
67 FLANGE, MOUNTING 123672-82052
67-1 FLANGE, MOUNTING 123672-82053
68 FLANGE, MOUNTING 127611-82050
68-1 FLANGE, MOUNTING 127611-82051
69 GASKET 123672-82060
69-1 GASKET, FLANGE 123672-82061
69-2 GASKET, FLANGE 123672-82062
70 BOLT, M10X 25 PLATED 26116-100256
70-1 BOLT 10X25 26112-100252
71 BREATHER 123672-82071
72 BOLT, M10X 14 26112-100142
73 WIRE, 1.0 22451-100000
74 ELBOW, R1/4 23112-020000
75 JOINT, RUBBER HOSE 43590-001320
76 CAP 123472-82580
