YANMAR 124060-11800 Guide, Valve

Write a Review
$11.08
SKU:
124060-11800
Schematic Object Key:
3

YANMAR 124060-11800 Guide, Valve

$11.08

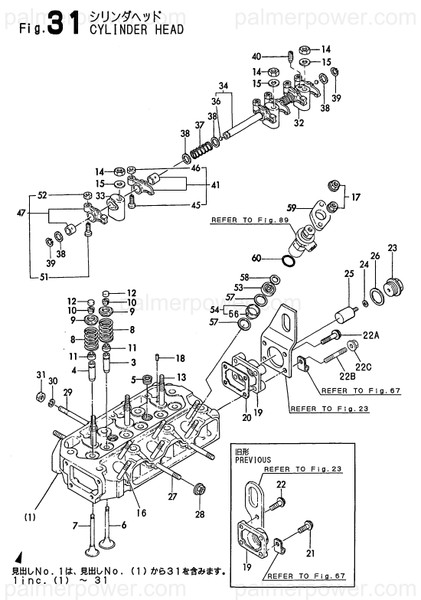

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 124060-11800 Guide, Valve

Schematic Object Key : 3

Product Description : GUIDE, VALVE 124060-11800

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HEAD ASSY, CYLINDER 728372-11700
3 GUIDE, VALVE 124060-11800
4 GUIDE, VALVE 119620-11801
5 PLUG, R03 23871-030000
5-1 PLUG, R03 23876-030000
6 VALVE, INTAKE 105225-11100
7 VALVE, EXHAUST 105225-11110
8 SPRING, VALVE 121575-11121
9 RETAINER, SPRING 104200-11180
10 COTTER, 7 27310-070001
11 SEAL, VALVE STEM 124950-11340
12 CAP, VALVE 104211-11370
13 STUD 105225-11350
14 NUT, LOCK M10 26696-100002
15 WASHER, 10 22137-100000
15-1 WASHER, 10 22117-100000
16 STUD, M8X 65 26216-080652
17 NUT, M8 26366-080002
18 PIN, 4.5X12 121000-11050
19 COVER, HEAD 121575-11670
20 GASKET 121450-11680
20-1 GASKET 121450-11681
21 BOLT, M8X 20 PLATED 26106-080202
22 BOLT, M8X 25 PLATED 26106-080252
22A BOLT, M8X 35 PLATED 26106-080352
22A-1 BOLT, M8X 35 PLATED 26106-080352
22B STUD, M8X 35 26216-080352
22C NUT, M8 26366-080002
23 PLUG 122780-09320
24 GASKET 123210-09310
25 ZINC, SCREW20X30 27210-200300
26 GASKET, 25X1.0 23414-250000
27 STUD M 8X 55 PLATED 26217-080552
28 NUT, M8 26366-080002
29 STUD, M8X 80 26213-080802
30 WASHER, SPRING 8 22217-080000
31 NUT M 8 26703-080000
32 SUPPORT, ROCKER ARM 121450-11260
33 SUPPORT, ROCKER ARM 121450-11270
34 SHAFT ASSY, ROCKER 121450-11240
36 BALL, STEEL 11/32 24190-110001
37 SPRING 121550-11280
38 WASHER 121550-11290
39 RING, 14 22242-000140
40 SCREW, M8X10 26921-080102
40-1 SCREW 128370-11290
41 ARM ASSY, ROCKER 721450-11650
45 SCREW, VALVE ADJUST 101158-11230
46 NUT, LOCK M8 26756-080002
47 ARM ASSY, ROCKER 721450-11660
51 SCREW, VALVE ADJUST 101158-11230
52 NUT, LOCK M8 26756-080002
53 CHAMBER 124950-11410
54 CHAMBER ASSY 128272-11420
56 PIN 103338-11430
57 GASKET, CHAMBER 124950-11450
58 INSULATOR 101147-11490
59 RETAINER 101147-11900
60 O-RING, 1AS26.0 24341-000260

YANMAR 124060-11800 Guide, Valve
