YANMAR 124250-77320 Bolt, Through

Write a Review
$8.14
SKU:
124250-77320
Schematic Object Key:
21

YANMAR 124250-77320 Bolt, Through

$8.14

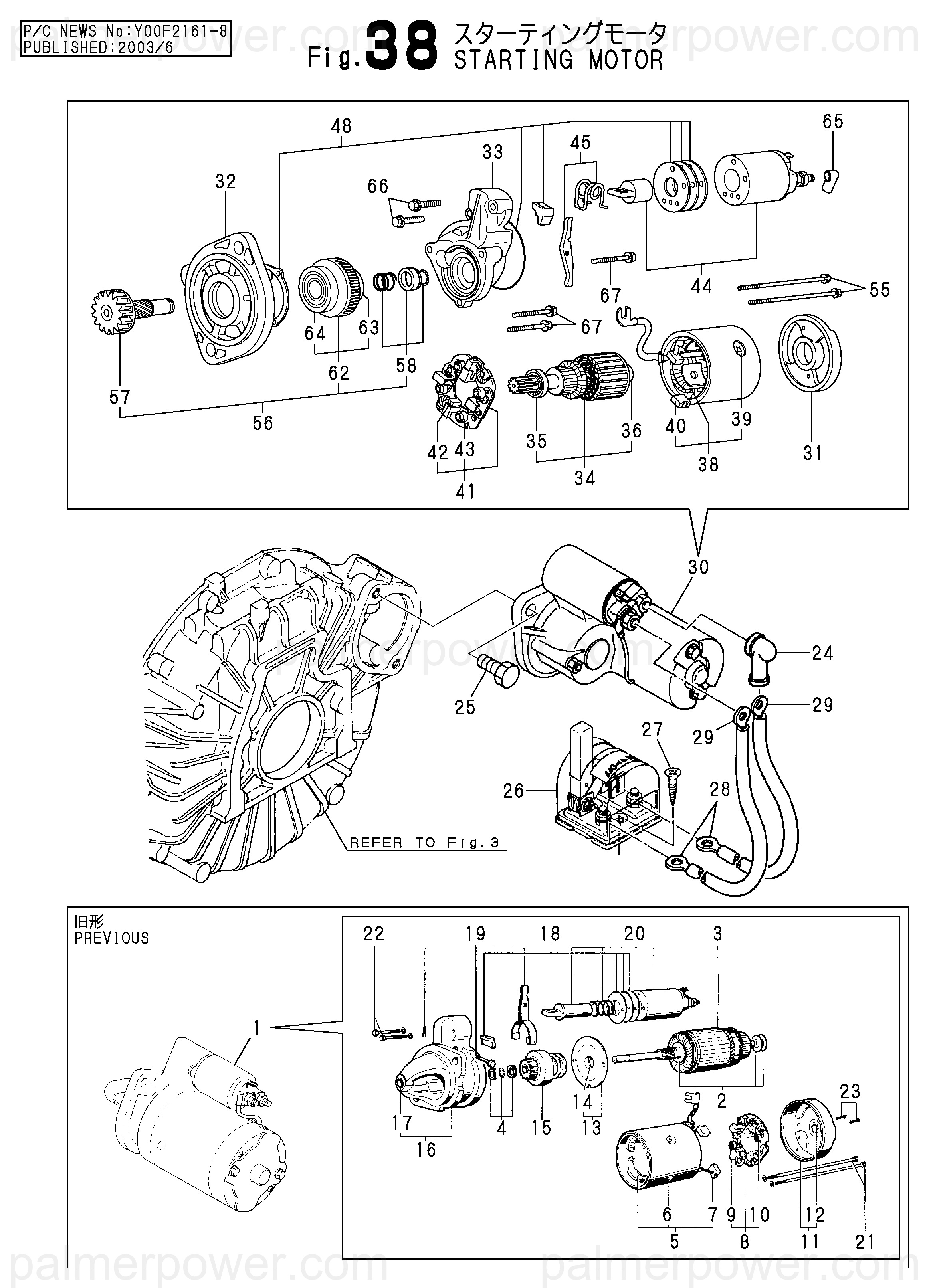

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 124250-77320 Bolt, Through

Schematic Object Key : 21

Product Description : BOLT, THROUGH

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 STARTER, S12-77A 124250-77012
2 WASHER KIT 124250-77510
3 ARMATURE ASSY 124250-77500
4 STOPPER SET, PINION 124250-77070
5 COIL ASSY, FIELD 124250-77110
6 SCREW SET, PORE CORE 124250-77120
7 BRUSH (+) 124250-77130
8 HOLDER ASSY, BRUSH 124250-77160
9 BRUSH (-) 124250-77170
10 SPRING, BRUSH 124250-77180
11 COVER ASSY, REAR 124250-77140
12 METAL, REAR COVER 124250-77150
13 BEARING ASSY, CENTER 124250-77190
14 BEARING 124250-77520
15 PINION ASSY 124250-77210
16 CASE ASSY, GEAR 124250-77220
17 METAL, GEAR CASE 124250-77230
18 COVER SET, DUST 124250-77240
19 LEVER SET, SHIFT 124250-77270
20 SWITCH, MAGNETIC 124250-77310
21 BOLT, THROUGH 124250-77320
22 BOLT, M6X 32 PLATED 26106-060322
23 SCREW, M4X12 124250-77540
23-1 SCREW, M4X12 26557-040122
24 COVER, TERMINAL 124550-77030
25 BOLT, M12X 30 PLATED 26116-120302
26 SWITCH, BATTERY 123310-77640
27 SCREW, 8.0X38 22724-800380
28 TERMINAL 123325-77930
29 TERMINAL 123325-77920
30 STARTER, S114-483 171008-77010
31 COVER, REAR 171008-77500
32 CASE, GEAR 171008-77510
33 HOUSING, CENTER 171008-77520
34 ARMATURE ASSY 171008-77400
35 BEARING, BALL X2114255110
36 BALL BEARING X2130350900
38 COIL ASSY, FIELD 171008-77440
39 SCREW 171008-77450
40 BRUSH (+) 171008-77460
41 HOLDER ASSY, BRUSH 171008-77470
42 BRUSH (-) 171008-77480
43 SPRING, BRUSH 171008-77490
44 MAGNETIC SWITCH ASSY 171008-77531
45 LEVER SET 171008-77540
48 COVER KIT, DUST 171008-77571
55 BOLT, THROUGH 171008-77640
56 PINION ASSY 171008-77650
57 SHAFT 171008-77660
58 STOPPER SET 171008-77670
62 CLUTCH ASSY X2114555500
63 BALL BEARING X2114955020
64 BEARING, BALL X2240410100
65 COVER 171008-77750
66 BOLT, M6X 32 PLATED 26106-060322
67 BOLT, M6X 40 PLATED 26106-060402
