YANMAR 124411-77010 Starter, S25-146D

Write a Review
$2,038.53
SKU:
124411-77010
Schematic Object Key:
2

YANMAR 124411-77010 Starter, S25-146D

$2,038.53

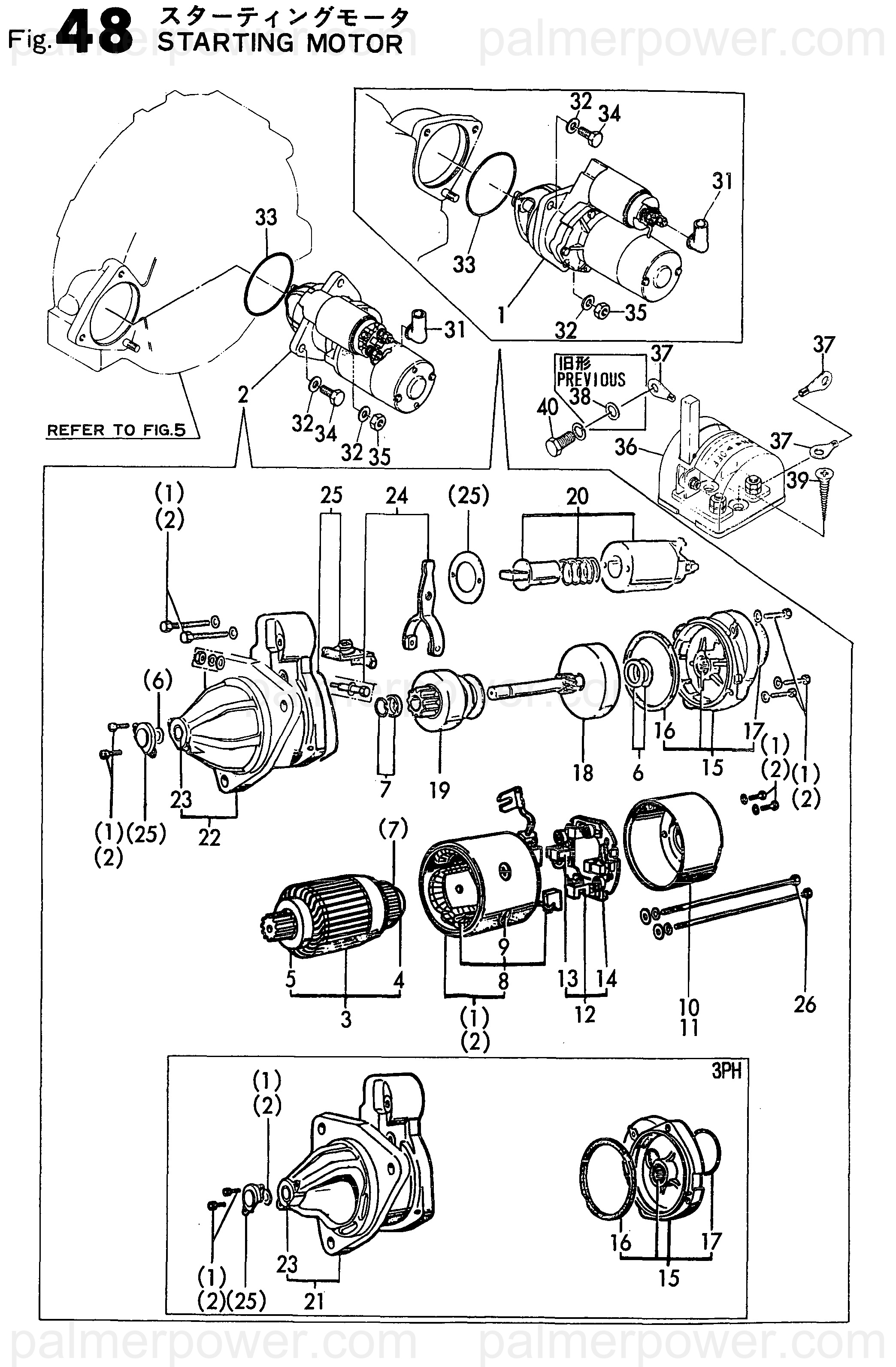

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 124411-77010 Starter, S25-146D

Schematic Object Key : 2

Product Description : STARTER, S25-146D

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 STARTER, S25-146D 124411-77010
3 ARMATURE ASSY X225021001
4 BALL BEARING X21302302
5 BALL BEARING X21303302
6 WASHER KIT, THRUST X21302115
7A STOPPER SET,PINION X22509105
8 COIL ASSY,FIELD X225032001
9 BRUSH(+) X22505322
11 COVER, REAR X225023012
12 HOLDER ASSY,BRUSH X22508305
13 BRUSH(-) X22503323
14 SPRING, BRUSH X21305313
15 BEARING ASSY X225024001
16A OIL SEAL X22502402
17 O-RING X21302402
18 SHAFT ASSY, GEAR X22501113
19 PINION ASSY X225095001
20 SWITCH ASSY,MAGNET. X225097001
22 HOUSING ASSY, GEAR X225076004
23 BEARING X22503601
24 LEVER SET X21302605
25 DUST COVER X22505801
26 BOLT, THROUGH X21305820
27 SCREW, M4X12 26557-040122
28 BOLT M 5X 10 26013-050102
29 BOLT, M6X 30 26013-060302
30 BOLT M 6X 46 26013-060462
31 COVER, TERMINAL 124550-77030
32 WASHER, 12 22137-120000
33 O-RING, 1AS105.0 24341-001050
34 BOLT, M12X 30 PLATED 26116-120302
35 NUT, M12 26716-120002
36 SWITCH, BATTERY 123310-77640
37 TERMINAL 123325-77930
38 WASHER, 10 22114-100000
39 SCREW, 8.0X38 22724-800380
40A BOLT, M10X 16 PLATED 26116-100162
40A-1 BOLT, M10X 14 PLATED 26106-100142
