YANMAR 124732-59562 Pipe, Fuel D8X230

Write a Review
$21.49
SKU:
124732-59562
Schematic Object Key:
36

YANMAR 124732-59562 Pipe, Fuel D8X230

$21.49

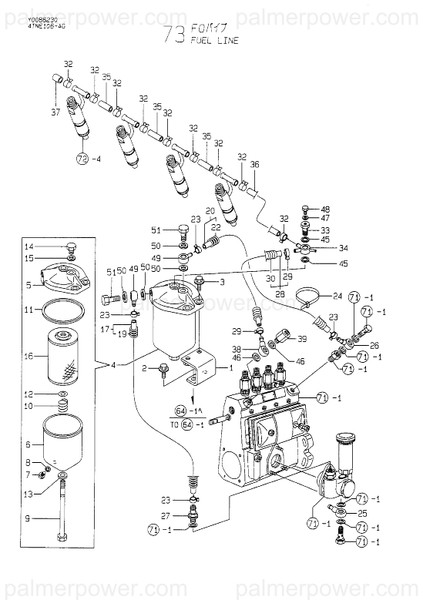

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 124732-59562 Pipe, Fuel D8X230

Schematic Object Key : 36

Product Description : PIPE, FUEL D8X230 124732-59562

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BRACKET 170906-55600
2 BOLT, M10X 20 PLATED 26106-100202
3 BOLT, M10X 30 PLATED 26106-100302
4 STRAINER, FUEL 41650-550310
5 COVER 123678-55700
6 CASE 123678-55720
7 PLUG, DRAIN M8 123672-55750
8 GASKET 123672-55760
9 BOLT 123678-55770
10 SPRING, SET 123678-55790
11 GASKET 123678-55850
12 SEAT, SPRING D30/16 123678-55860
13 GASKET 123678-55870
14 PLUG, M14 123678-55880
15 GASKET 123678-55890
16 STRAINER 41650-550810
17 PIPE ASSY, FUEL 119560-59051
19 TUBE, CORRUGATED 119560-59110
20 PIPE, FUEL 129957-59040
22 TUBE, CORRUGATED 119560-59110
23 CLIP, HOSE 12 124766-59050
24 BAND, 140 121750-59890
25 JOINT, PIPE 121855-59880
26 JOINT, PIPE 121855-59880
27 JOINT, PIPE 121250-49110
28 PIPE, FUEL 129950-59211
29 CLIP, HOSE 12 124766-59050
30 TUBE, CORRUGATED 129950-59221
32 CLIP, HOSE 8 124066-59100
33 BOLT, PIPE JOINT 129495-59300
34 JOINT 129980-59530
35 PIPE, FUEL D8X120 121250-59550
36 PIPE, FUEL D8X230 124732-59562
37 CAP 129150-59580
38 JOINT, PIPE 121855-59880
39 VALVE ASSY, OVERFLOW 128300-59910
45 WASHER, SEAL 14 22190-140002
46 WASHER, SEAL 14 22190-140002
47 WASHER, SEAL 6 22190-080002
48 BOLT, M8X 10 PLATED 26106-080102
49 JOINT 121750-59910
50 WASHER, SEAL 14 22190-140002
51 BOLT, JOINT 8 23857-080000
