YANMAR 124770-83520 Pinion Z=25 I=2.20

Write a Review
$213.08
SKU:
124770-83520
Schematic Object Key:
37

YANMAR 124770-83520 Pinion Z=25 I=2.20

$213.08

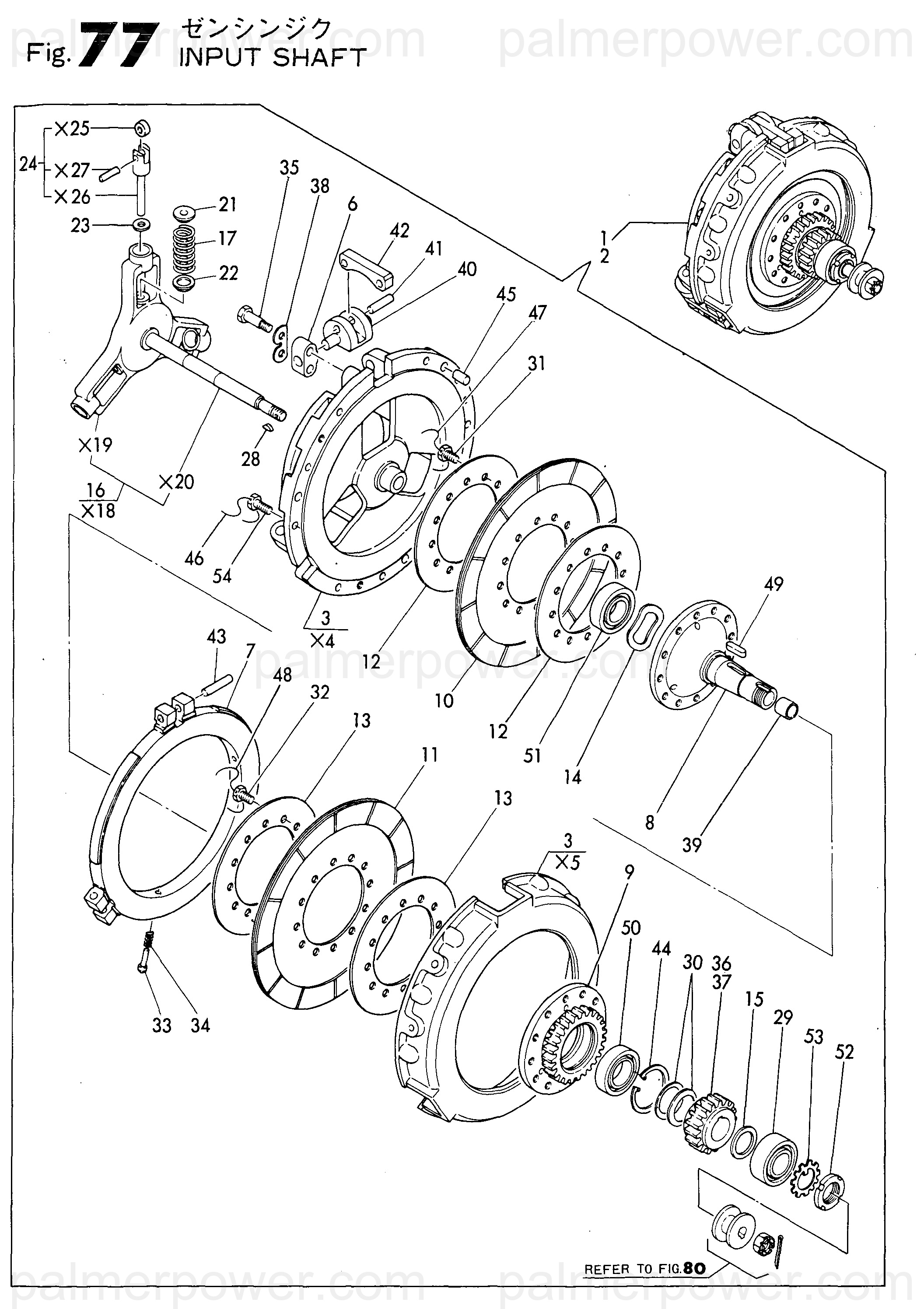

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 124770-83520 Pinion Z=25 I=2.20

Schematic Object Key : 37

Product Description : PINION, I=2.20 Z=25 124770-83520

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 ROTATOR ASSY, I2.20 776000-03730
2 ROTATOR ASSY, I3.21 776001-03730
3 HOUSING 176000-03091
6 BRACKET 122310-83380
7 DISK, FRICTION 176000-03150
8 SHAFT, FORWARD 176000-03201
9 SHAFT, REVERSE 176000-03211
10 DISK, FRICTION 176000-03300
11 DISK, FRICTION 176000-03300
12 PLATE 176000-03330
13 PLATE 176000-03330
14 WASHER 176000-03450
15 SPACER 176000-03461
16 LEVER ASSY, SHIFT 776000-03571
17 SPRING 176000-03860
21 RETAINER 125110-84480
22 RETAINER, SPRING 125110-84490
23 SHIM 125110-84520
24 RETAINER 125110-84540
28 KEY, WOODRUFF 4X13 22522-040130
29 BEARING #5205S 176000-03950
30 SPRING 120220-83250
31 BOLT 120220-83290
32 BOLT 120220-83290
33 CLAW 124210-83360
34 SPRING 124210-83370
35 BOLT 122310-83390
36 PINION, I=3.21 Z=19 120221-83520
37 PINION, I=2.20 Z=25 124770-83520
38 WASHER 122310-83630
39 BUSH 122310-83800
40 LEVER 124210-84402
41 PIN 124210-84410
42 LINK 122310-84421
43 PIN 122410-84450
44 RING, 55 22252-000550
45 PIN, PARALLEL M10X18 22312-100180
46 WIRE, 1.0 22451-100000
47 WIRE, 1.0 22451-100000
48 WIRE, 1.0 22451-100000
49 KEY, 7X 26 22512-070260
50 BEARING, BALL 6006 24101-060064
51 BEARING, BALL 6205UU 24104-062054
52 NUT, BEARING 25 24211-025002
53 WASHER 25, BEARING 24231-025000
54 BOLT, M8X 20 PLATED 26116-080206
