YANMAR 124772-03100 Pipe

Write a Review
$8.17
SKU:
124772-03100
Schematic Object Key:
78-1

YANMAR 124772-03100 Pipe

$8.17

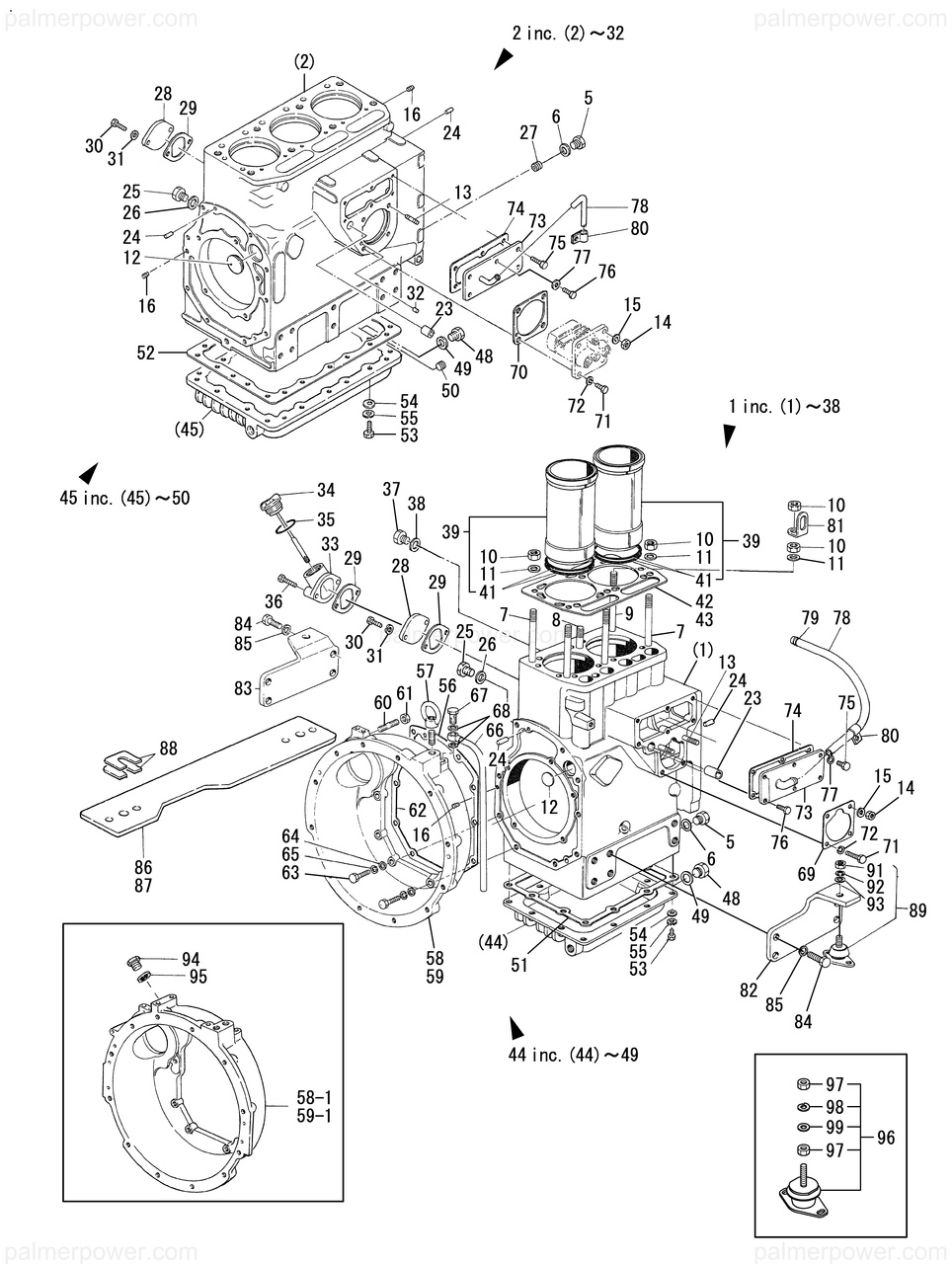

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 124772-03100 Pipe

Schematic Object Key : 78-1

Product Description : PIPE , BREATHER 124772-03100

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 BLOCK ASSY, CYLINDER 721370-01560
5 PLUG G1/4 23897-020002
6 GASKET, 12X1.0 23414-120000
7 BOLT, HEAD 124450-01210
9 BOLT, HEAD 124450-01230
10 NUT, CYLINDER HEAD 124450-01250
11 WASHER 124450-01240
12 PLUG, 40 27233-400000
13 STUD, M8X 22 26216-080222
14 NUT, M8 26716-080002
15 SEAL WASHER 8S 43400-500410
16 PLUG, PT1/8 124060-01050
18 HOUSING ASSY, METAL 721250-02500
19 GASKET 124460-02150
20 BOLT, M10X 25 PLATED 26116-100252
21 WASHER, SPRING 10 22217-100000
22 BEARING, MAIN 121250-02100
23 BUSH 124550-01900
24 PIN, PARALLEL M8X16 22312-080160
25 PLUG, 10 23883-100002
26 GASKET 121250-01990
27 PLUG, PT1/4 124160-01910
28 COVER, CRANK CASE 124772-01400
29 GASKET 124160-34844
30 BOLT, M8X 16 PLATED 26116-080162
31 WASHER, SPRING 8 22217-080000
32 PARALLEL PIN 4X10 22312-040100
39A LINER ASSY, CYLINDER 724770-01900
39A-1 LINER ASSY, CYLINDER 724770-01901
41 GASKET, LINER 124550-01300
43 GASKET, HEAD 121370-01330
43-1 GASKET, HEAD 121370-01331
43-2 GASKET, HEAD 121370-01340
45 SUMP ASSY, OIL 721370-01540
48 PLUG, 16 23883-160002
49 GASKET, 16X1.0 23414-160000
50 PLUG, R02 23873-020000
52 GASKET, OIL SUMP 121250-01751
53 BOLT M 8X 30 26113-080302
54 WASHER, 8 22113-080000
55 SPRING WASHER 8 189040-01860
56 BOLT, LIFTING 124770-07210
57 NUT, EYE M12 26620-120002
59 FLANGE, MOUNTING 124790-01600
59-1 FLANGE, MOUNTING 124790-01601
60 STUD, M12X 25 26226-120252
61 NUT, M12 26716-120002
62 GASKET 124772-01610
63 BOLT M10X 38 PLATED 26116-100382
64 WASHER, 10 22137-100000
65 WASHER, SPRING 10 22217-100000
66 PIPE ASSY, BREATHER 124770-03200
67 BOLT, PIPE JOINT M8 101147-59810
68 GASKET, 8X1.0 23414-080000
70 SHIM 121250-01950
70-1 SHIM SET, ADJUSTING 121250-01951
71 BOLT, M8X 22 PLATED 26116-080222
72 WASHER, SPRING 8 22217-080000
73 COVER 121250-01850
74 GASKET 124160-01863
75 BOLT, M6X 12 PLATED 26116-060122
76 BOLT, M6X 16 PLATED 26116-060162
77 WASHER, 6 22137-060000
78 PIPE, 9X 620 23065-090620
78-1 PIPE , BREATHER 124772-03100
79 CLIP, HOSE 13 124223-49750
79-1 CLIP, HOSE 12 124766-59050
80 RETAINER 124250-01650
81 LIFTER 124770-07230
81-1 LIFTER 124070-07230
82 FOOT, MOUNTING 124770-08110
83 FOOT, MOUNTING 124770-08120
84 BOLT, M12X 30 PLATED 26116-120302
85 WASHER, SPRING 12 22217-120000
89 ABSORBER, SHOCK 80 124770-08340
91 NUT, M12 124770-08910
92 WASHER, SPRING 12 22217-120000
93 WASHER, 12 22137-120000
94 PLUG M18 23883-180000
95 GASKET, 18X1.0 23414-180023
96 MOUNT, FLEXIBLE 121370-08340
97 NUT, M12 124770-08910
98 WASHER, SPRING 12 22217-120000
99 WASHER, 12 22117-120000
